Kuebler - Absolute Encoded Angular Transmitter Sendix F5858 / F5878, Optical, EtherNet / IP, Ø58 mm
Sendix F5858 / F5878 is a one-way fieldbus transducer with EtherNet / IP in robust design. Thanks to the construction of Safety-Lock ™ as well as the fully cast housing, the sensor is able to handle even the more demanding applications where there are high demands on the sensor. The wide temperature range combined with the high enclosure class allows the sensor to be used outdoors as well as applications where large temperature changes occur. Sendix F5858 / F5878 comes with LED indication which facilitates diagnosis of the sensor.
- Housing diameter Ø58 mm
- EtherNet/IP
- Safety-Lock™
- Quick startup
Selected variant
Technical data
| Connection | M12 |
|---|---|
| Housing diameter | 58 mm |
| IP class | IP65 |
| Mounting | Shoulder |
| Output | EtherNet/IP |
| Sensor type | Absolute |
| Shaft diameter max | 10 mm |
| Shaft diameter min | 6 mm |
|---|---|
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 10 V DC |
| Temperature operational max | 80 °C |
| Temperature operational min | -40 °C |
| Version | Singleturn |
Product description
Sendix F5858 / F5878 is a one-way fieldbus transducer with EtherNet / IP in robust design. Thanks to the construction of Safety-Lock ™ as well as the fully cast housing, the sensor is able to handle even the more demanding applications where there are high demands on the sensor. The wide temperature range combined with the high enclosure class allows the sensor to be used outdoors as well as applications where large temperature changes occur. Sendix F5858 / F5878 comes with LED indication which facilitates diagnosis of the sensor.
Ordering information

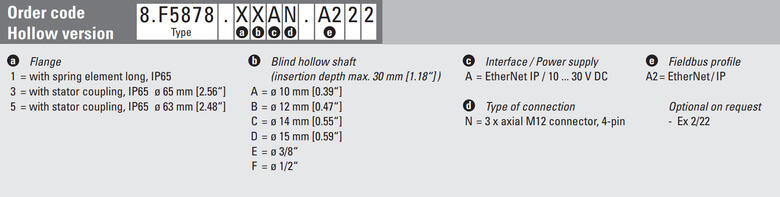

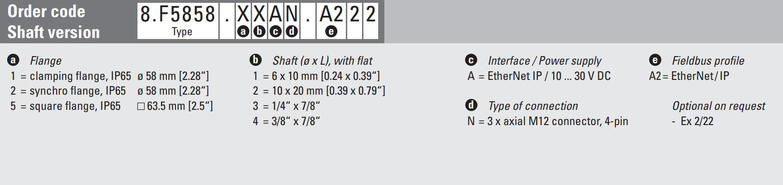

Please refer to the image below for ordering information.
