IDEM GLM wire switch

The GLM wire switches in the aluminum alloy housing have been created as a high-quality system for securing short conveyors, with a range of up to 30 m per one switch. Using the two switches, the range increases to 50 m.

The 2-color LED, signaling the operation of the switch, is visible from a large distance. The GLM wire switch has 5 different contact configurations.

Read more

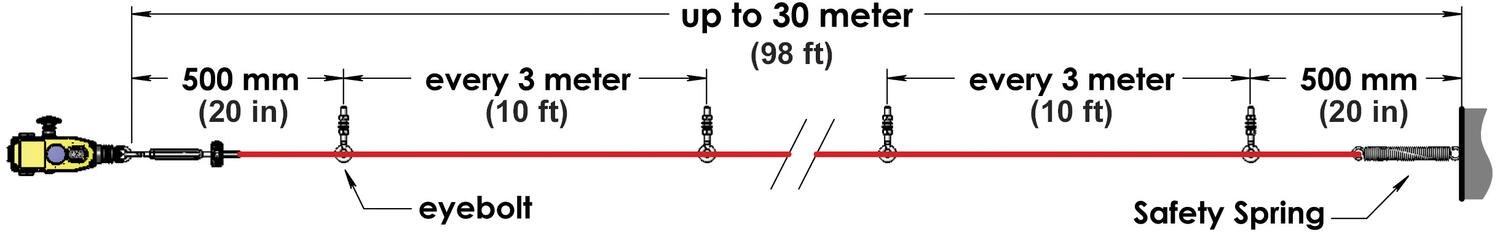

  • Up to 30 m on one switch
  • 5 different contact configurations
  • 2 - color LED
  • Integrated emergency button

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Annual usage 8 cycles per hour/24 hours per day/365 days
Approvals EN60947-5-5, ISO 13850, ISO 13849-1, EN62061, EN60947-5-1, UL 508, CE, cULus, TÜV
Conduit entry 3 x M20
Contact type EN60947-5-1 double break type Zb. Snap action up to 4NC (positive break) 2NO (auxiliary)
Contacts 2NC 1NO
Housing material Die cast metal
Integrated emergency stop button No
Integrated LED indication No
IP class IP67
Mechanical reliability B10d 1.5 x 10⁶ operations at 100mA load
Mounting 4 x M5
MTTFd 214 years
Operating temperature -25°C +80°C
PFHd <1.0 x 10⁻⁷

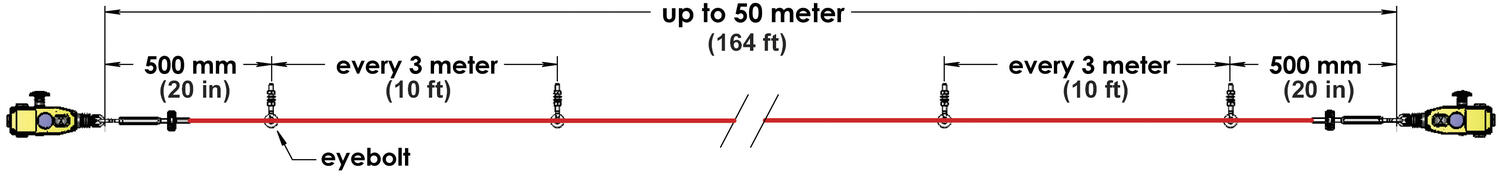

Rope span Up to 50m (2 switches) 30m (1 switch)
Rope tension device IDEM tensioner/gripper (quick fixing)
Rope type 4.00mm outside diameter. Steel inner - PVC sheath
Short circuit overload protection Fuse externally 10A(FF)
Tension force (typical mid setting) 130 N
Termination Clamp up to 2.5mm² conductors
Thermal current (lth) 10 A
Typical operating force (rope pulled) <125N <300mm deflection
Weight 640 g

Downloads

Measurements and connections

Technical illustrations

Product description

The GLM wire switches in the aluminum alloy housing have been created as a high-quality system for securing short conveyors, with a range of up to 30 m per one switch. Using the two switches, the range increases to 50 m.

The 2-color LED, signaling the operation of the switch, is visible from a large distance. The GLM wire switch has 5 different contact configurations.

Accessories

Related

hokuyu
Product news

The Smallest Safety Laser Scanner on the market by Hokuyu

Designed for high-performance safety applications such as material handling, conveyors, robotics, and system integration. OEM Automatic is excited to announce its latest supplier partnership with Hokuyo

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

ATEX hazardous environments and OEM ATEX products
Blog

ATEX - Learn about explosion safety in hazardous environments

ATEX ensures that both equipment and work processes are designed to minimize these risks and create a safe working environment.

Sensor and safety engineer tony maton OEM automatic
Company news Product news

Our Newest Sensor and Safety Engineer

We’re thrilled to welcome Tony Maton, our new Sales Engineer at OEM Automatic! Tony brings a wealth of knowledge and expertise in industrial automation and machine safety

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts Conduit entry Contacts Fittings Integrated emergency stop button Integrated LED indication LED indication LED supply voltage Price

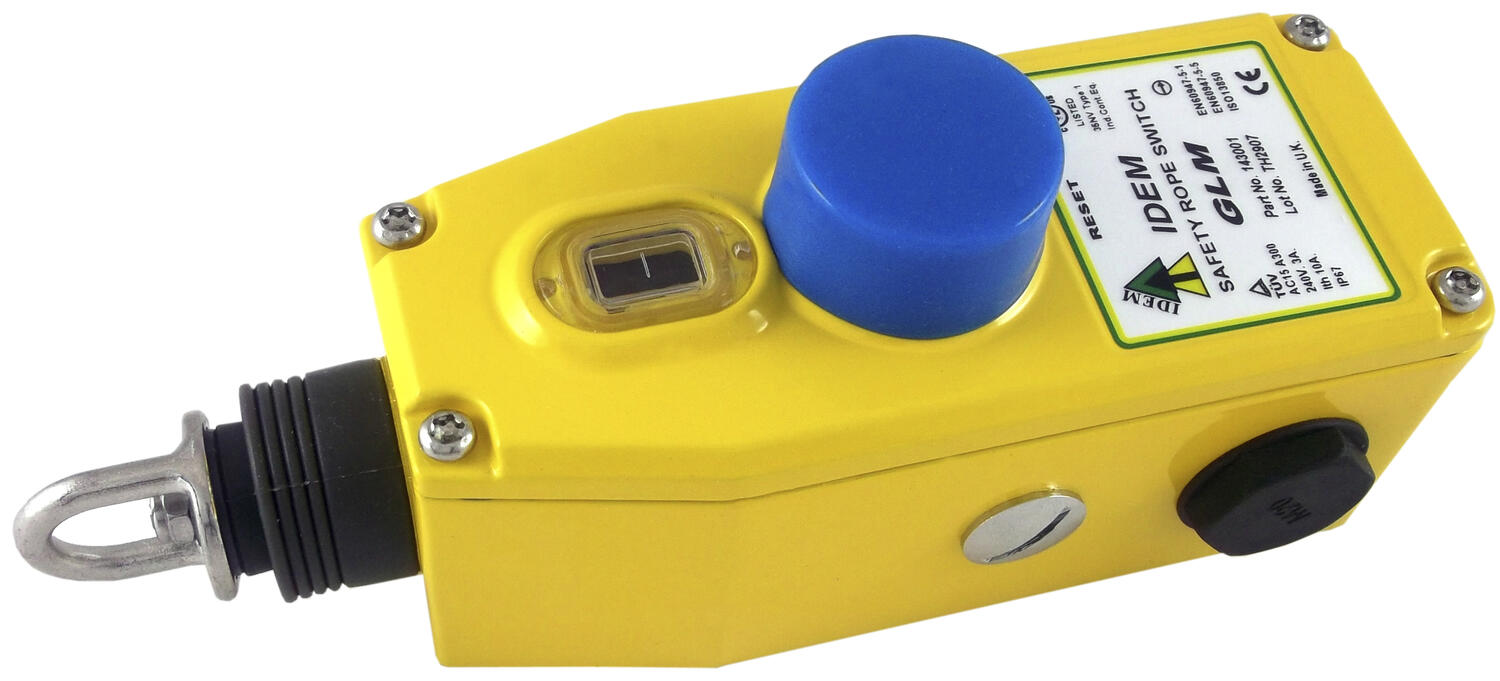

GLM Facing Left.tif
GLM M20 '2NC 1NO'
Art:
143001 Copied
3 x M20
2NC 1NO
No
No
GLM Facing Left.tif
GLM ½NPT '2NC 1NO'
Art:
143002 Copied
3 x 1/2" NPT
2NC 1NO
No
No
GLM Facing Left.tif
GLM M20 '3NC'
Art:
143003 Copied
3 x M20
3NC
No
No
GLM Facing Left.tif
GLM ½NPT '3NC'
Art:
143004 Copied
3 x 1/2" NPT
3NC
No
No

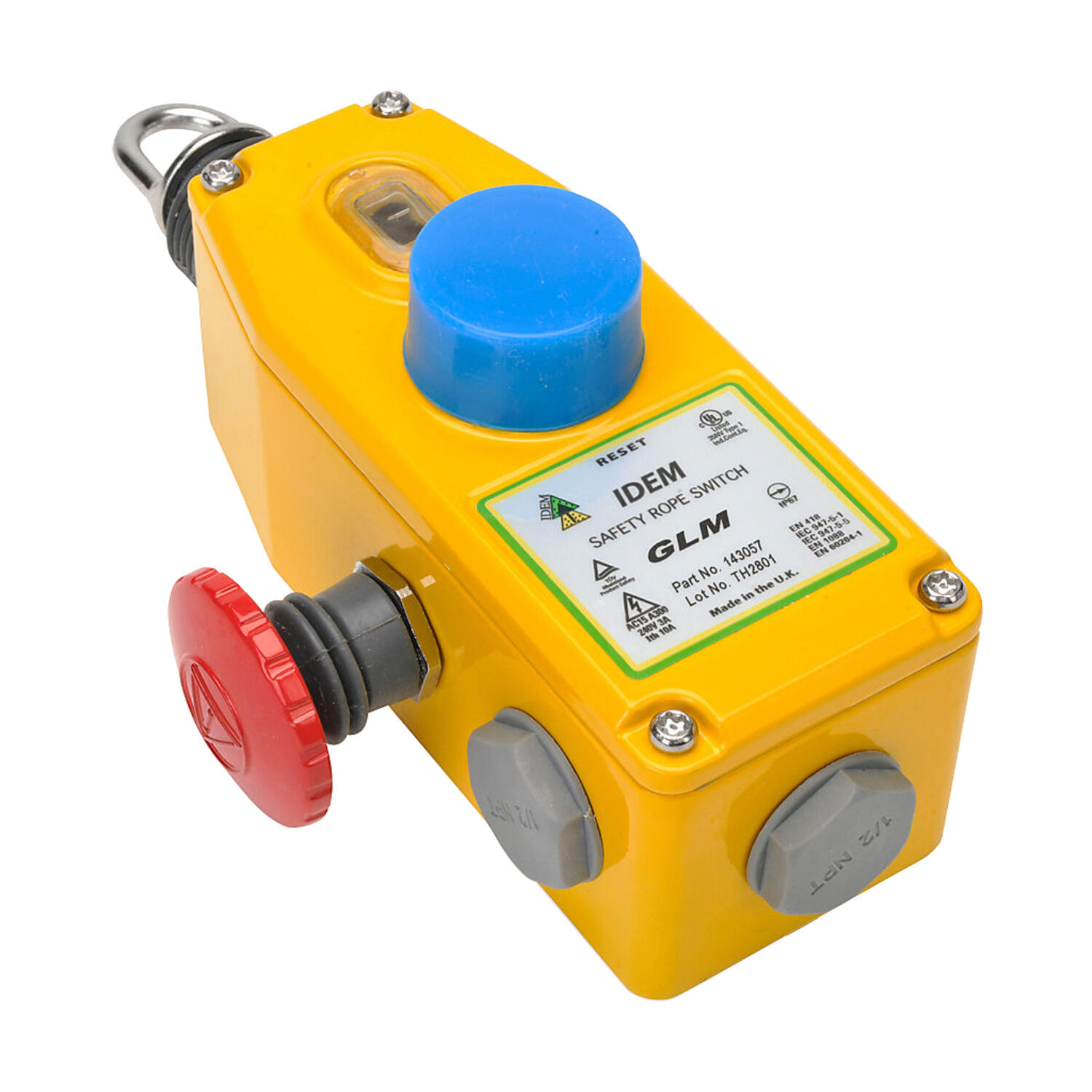

GLM new.tif
GLM M20 '2NC 1NO' E Stop
Art:
143005 Copied
3 x M20
2NC 1NO
E-stop
Yes
No
GLM new.tif
GLM ½NPT '2NC 1NO' E Stop
Art:
143006 Copied
3 x 1/2" NPT
2NC 1NO
E-stop
Yes
No
GLM new.tif
GLM M20 '3NC' E Stop
Art:
143007 Copied
3 x M20
3NC
E-stop
Yes
No
GLM new.tif
GLM ½NPT '3NC' E Stop
Art:
143008 Copied
3 x 1/2" NPT
3NC
E-stop
Yes
No
GLM Facing Left.tif
GLM M20 '3NC 1NO'
Art:
143050 Copied
3 x M20
3NC 1NO
No
No
GLM Facing Left.tif
GLM ½NPT '3NC 1NO'
Art:
143051 Copied
3 x 1/2" NPT
3NC 1NO
No
No
GLM Facing Left.tif
GLM M20 '2NC 2NO'
Art:
143052 Copied
3 x M20
2NC 2NO
No
No
GLM Facing Left.tif
GLM ½NPT '2NC 2NO'
Art:
143053 Copied
3 x 1/2" NPT
2NC 2NO
No
No
GLM Facing Left.tif
GLM M20 '4NC'
Art:
143054 Copied
3 x M20
4NC
No
No
GLM Facing Left.tif
GLM ½NPT '4NC'
Art:
143055 Copied
3 x 1/2" NPT
4NC
No
No
GLM new.tif
Art:
143056 Copied
3 x M20
3NC 1NO
E-stop
Yes
No
GLM new.tif
GLM ½NPT '3NC 1NO' E Stop
Art:
143057 Copied
3 x 1/2" NPT
3NC 1NO
E-stop
Yes
No
GLM new.tif
GLM M20 '2NC 2NO' E Stop
Art:
143058 Copied
3 x M20
2NC 2NO
E-stop
Yes
No
GLM new.tif
GLM ½NPT '2NC 2NO' E Stop
Art:
143059 Copied
3 x 1/2" NPT
2NC 2NO
E-stop
Yes
No
GLM new.tif
GLM M20 '4NC' E Stop
Art:
143060 Copied
3 x M20
4NC
E-stop
Yes
No
GLM new.tif
GLM ½NPT '4NC' E Stop
Art:
143061 Copied
3 x 1/2" NPT
4NC
E-stop
Yes
No
IDEM GLM wire switch
GLM M20 '3NC 1NO' LED 24V
Art:
143062A Copied
3 x M20
3NC 1NO
LED
No
Yes
Steady green/Flashing red
24Vdc
IDEM GLM wire switch
GLM M20 '3NC 1NO' Steady LED 24V
Art:
143062-AS Copied
3 x M20
3NC 1NO
LED
No
Yes
Steady green/Steady red
24Vdc
IDEM GLM wire switch
GLM M20 '3NC 1NO' LED 110V
Art:
143062B Copied
3 x M20
3NC 1NO
LED
No
Yes
Steady green/Flashing red
110Vac
IDEM GLM wire switch
GLM M20 '3NC 1NO' LED 230V
Art:
143062C Copied
3 x M20
3NC 1NO
LED
No
Yes
Steady green/Flashing red
230Vac
IDEM GLM wire switch
GLM ½NPT '3NC 1NO' LED 24V
Art:
143063A Copied
3 x 1/2" NPT
3NC 1NO
LED
No
Yes
Steady green/Flashing red
24Vdc
IDEM GLM wire switch
GLM ½NPT '3NC 1NO' LED 110V
Art:
143063B Copied
3 x 1/2" NPT
3NC 1NO
LED
No
Yes
Steady green/Flashing red
110Vac
IDEM GLM wire switch
GLM ½NPT '3NC 1NO' LED 230V
Art:
143063C Copied
3 x 1/2" NPT
3NC 1NO
LED
No
Yes
Steady green/Flashing red
230Vac
IDEM GLM wire switch
GLM M20 '2NC 2NO' LED 24V
Art:
143064A Copied
3 x M20
2NC 2NO
LED
No
Yes
Steady green/Flashing red
24Vdc
IDEM GLM wire switch
GLM M20 '2NC 2NO' LED 110V
Art:
143064B Copied
3 x M20
2NC 2NO
LED
No
Yes
Steady green/Flashing red
110Vac
IDEM GLM wire switch
GLM M20 '2NC 2NO' LED 230V
Art:
143064C Copied
3 x M20
2NC 2NO
LED
No
Yes
Steady green/Flashing red
230Vac
IDEM GLM wire switch
GLM ½NPT '2NC 2NO' 24V
Art:
143065A Copied
3 x 1/2" NPT
2NC 2NO
LED
No
Yes
Steady green/Flashing red
24Vdc
IDEM GLM wire switch
GLM ½NPT '2NC 2NO' 110V
Art:
143065B Copied
3 x 1/2" NPT
2NC 2NO
LED
No
Yes
Steady green/Flashing red
110Vac
IDEM GLM wire switch
GLM ½NPT '2NC 2NO' 230V
Art:
143065C Copied
3 x 1/2" NPT
2NC 2NO
LED
No
Yes
Steady green/Flashing red
230Vac

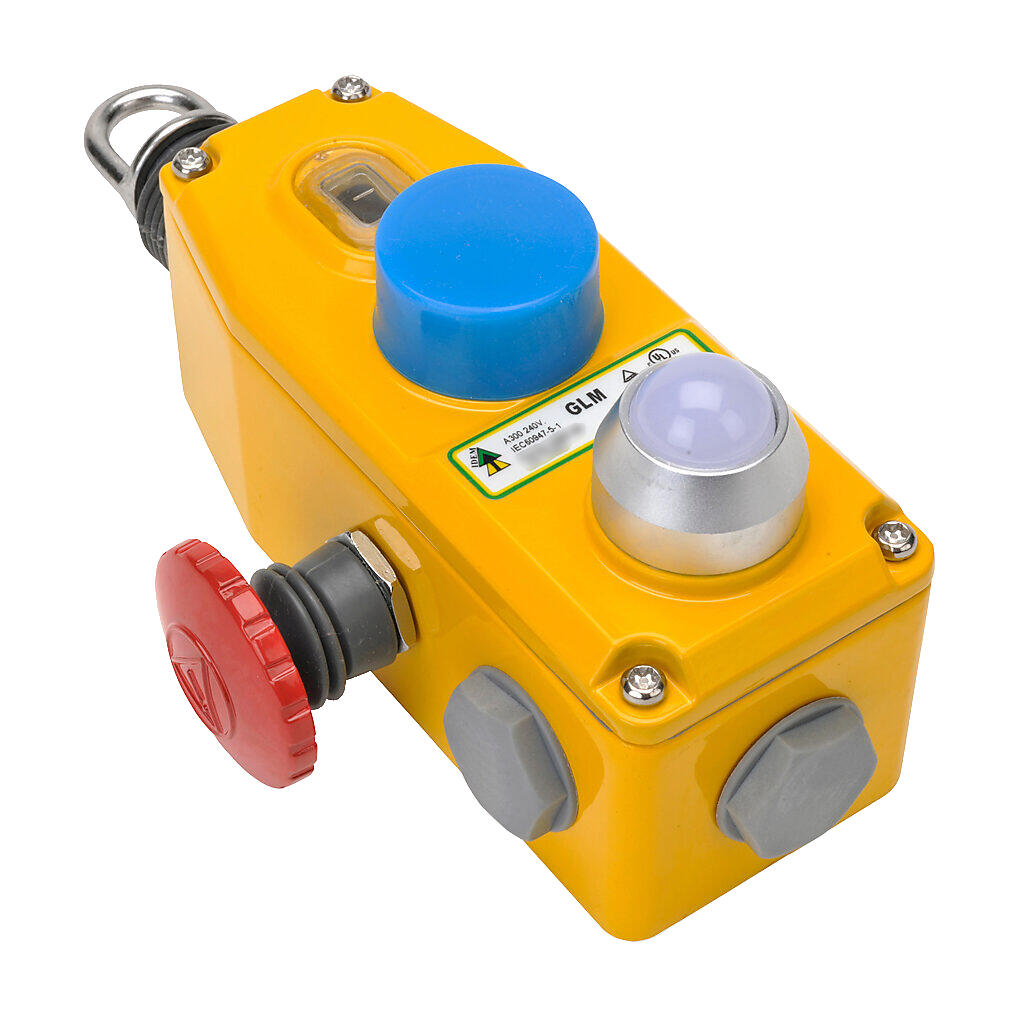

GLM with LED.tif
GLM M20 '3NC 1NO' E Stop & LED 24V
Art:
143066A Copied
3 x M20
3NC 1NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
24Vdc
GLM with LED.tif
GLM M20 '3NC 1NO' E Stop & Steady LED 24V
Art:
143066-AS Copied
3 x M20
3NC 1NO
E-stop and LED
Yes
Yes
Steady green/Steady red
24Vdc
GLM with LED.tif
GLM M20 '3NC 1NO' E Stop & LED 110V
Art:
143066B Copied
3 x M20
3NC 1NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
110Vac
GLM with LED.tif
GLM M20 '3NC 1NO' E Stop & LED 230V
Art:
143066C Copied
3 x M20
3NC 1NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
230Vac
GLM with LED.tif
GLM ½NPT '3NC 1NO' E Stop & LED 24V
Art:
143067A Copied
3 x 1/2" NPT
3NC 1NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
24Vdc
GLM with LED.tif
GLM ½"NPT '3NC 1NO' E Stop & Steady LED 24V
Art:
143067-AS Copied
3 x 1/2" NPT
3NC 1NO
E-stop and LED
Yes
Yes
Steady green/Steady red
24Vdc
GLM with LED.tif
GLM ½NPT '3NC 1NO' E Stop & LED 110V
Art:
143067B Copied
3 x 1/2" NPT
3NC 1NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
110Vac
GLM with LED.tif
GLM ½"NPT '3NC 1NO' E Stop & Steady LED 110V
Art:
143067-BS Copied
3 x 1/2" NPT
3NC 1NO
E-stop and LED
Yes
Yes
Steady green/Steady red
110Vac
GLM with LED.tif
GLM ½NPT '3NC 1NO' E Stop & LED 230V
Art:
143067C Copied
3 x 1/2" NPT
3NC 1NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
230Vac
GLM with LED.tif
GLM M20 '2NC 2NO' E Stop & LED 24V
Art:
143068A Copied
3 x M20
2NC 2NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
24Vdc
GLM with LED.tif
GLM M20 '2NC 2NO' E Stop & LED 24V
Art:
143068-AS Copied
3 x M20
2NC 2NO
E-stop and LED
Yes
Yes
Steady green/Steady red
24Vdc
GLM with LED.tif
GLM M20 '2NC 2NO' E Stop & LED 110V
Art:
143068B Copied
3 x M20
2NC 2NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
110Vac
GLM with LED.tif
GLM M20 '2NC 2NO' E Stop & LED 230V
Art:
143068C Copied
3 x M20
2NC 2NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
230Vac
GLM with LED.tif
GLM ½NPT '2NC 2NO' E Stop & LED 24V
Art:
143069A Copied
3 x 1/2" NPT
2NC 2NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
24Vdc
GLM with LED.tif
GLM ½NPT '2NC 2NO' E Stop & LED 110V
Art:
143069B Copied
3 x 1/2" NPT
2NC 2NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
110Vac
GLM with LED.tif
GLM ½NPT '2NC 2NO' E Stop & LED 230V
Art:
143069C Copied
3 x 1/2" NPT
2NC 2NO
E-stop and LED
Yes
Yes
Steady green/Flashing red
230Vac
