GELBAU

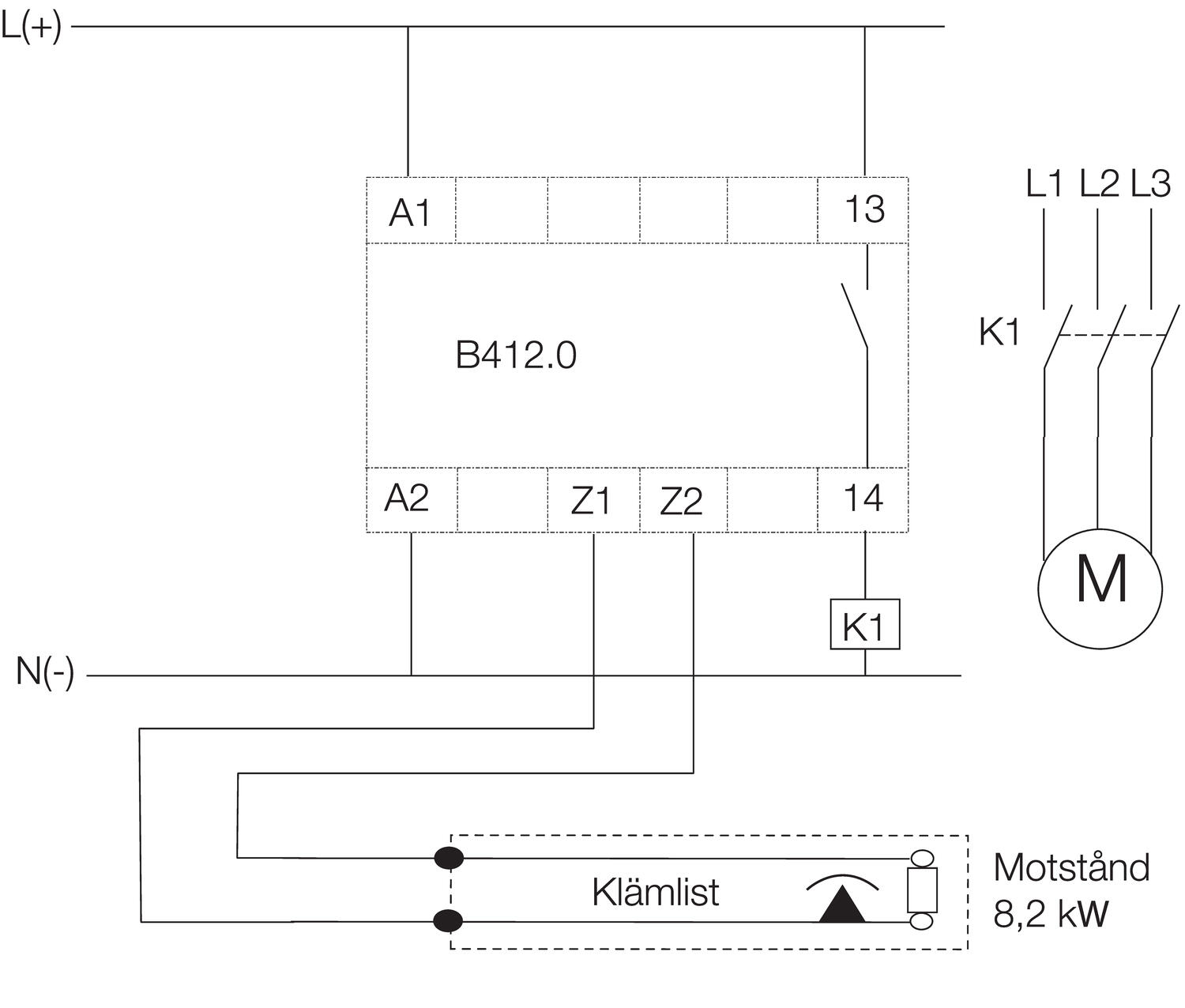

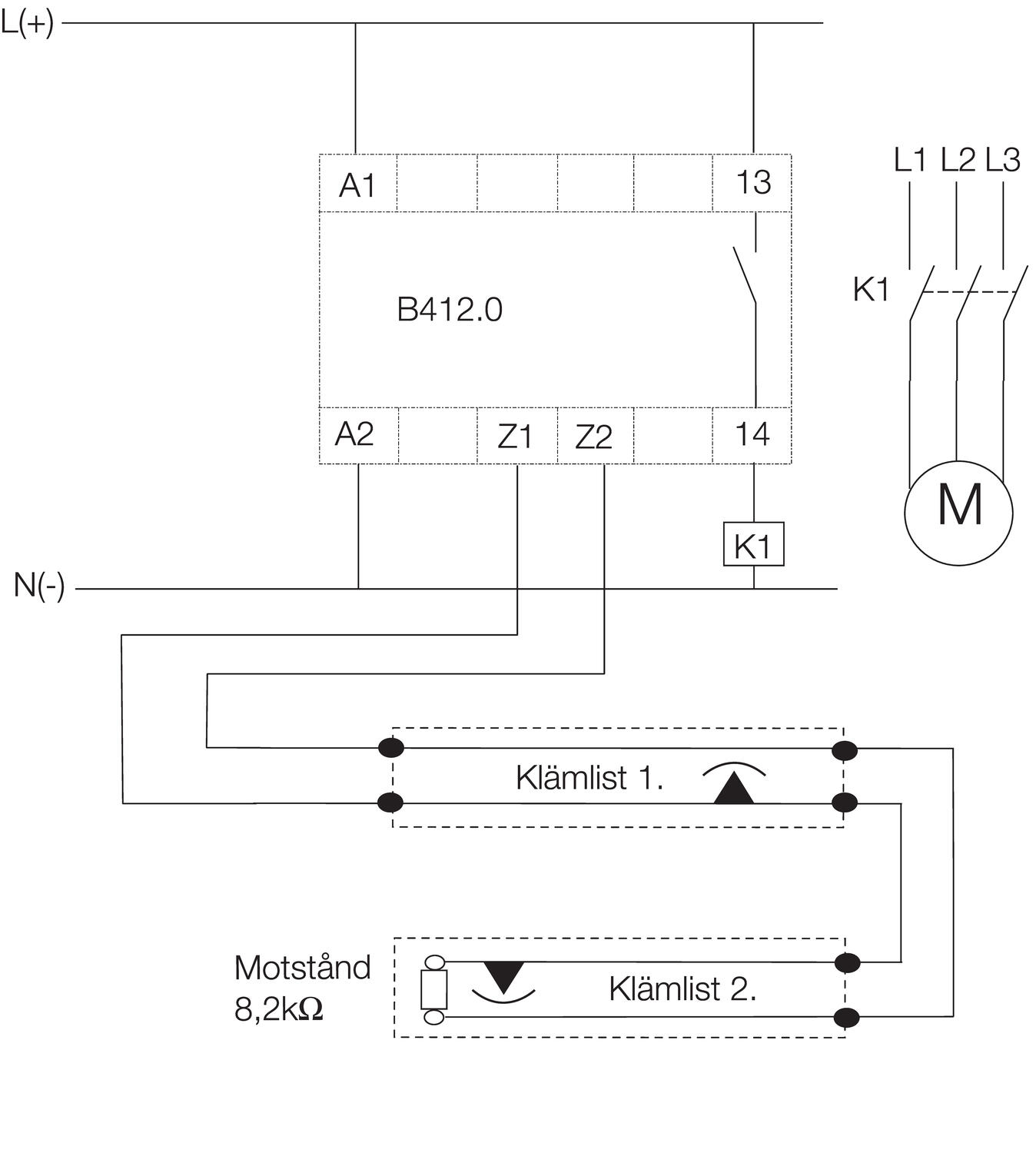

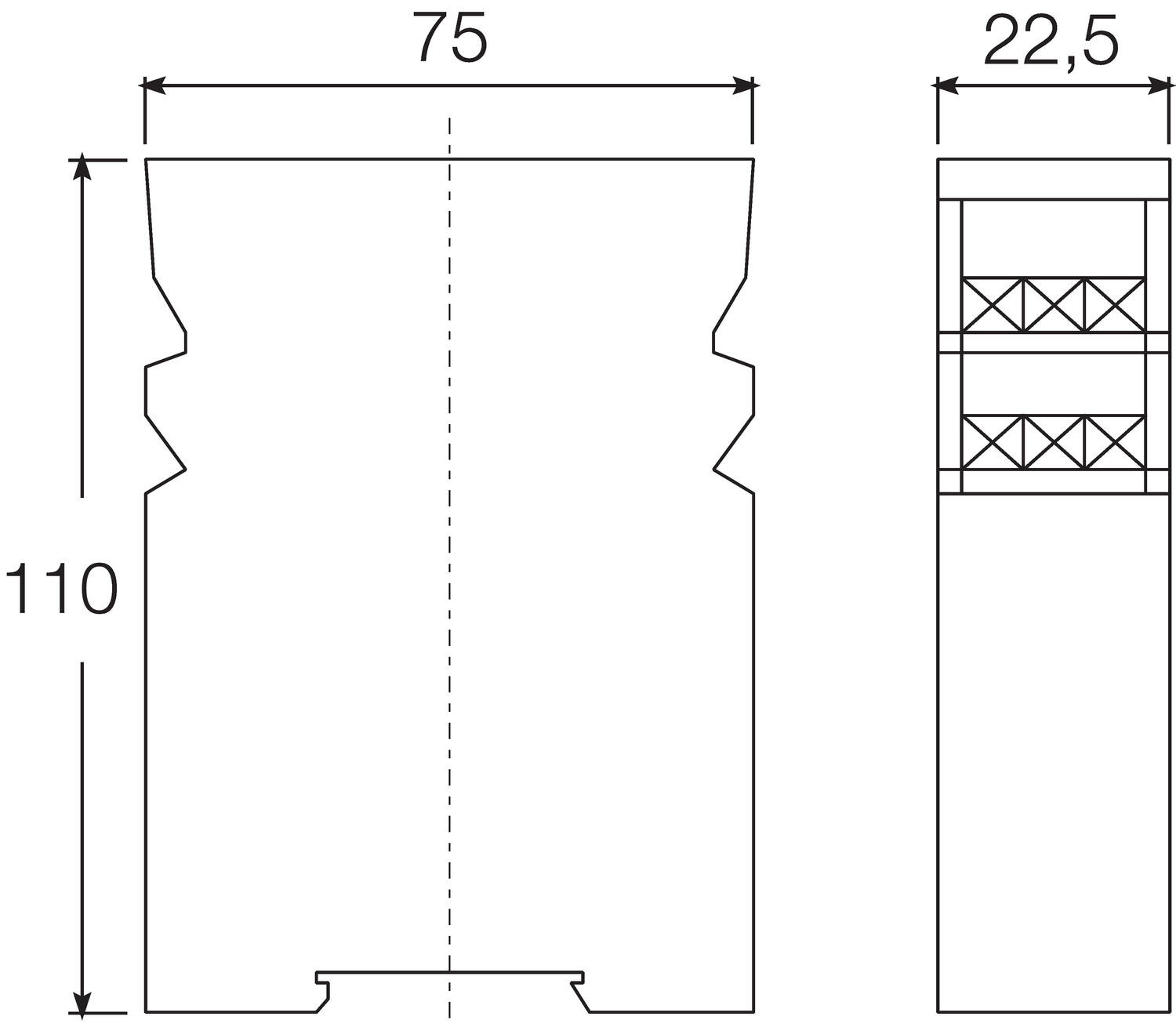

Small control unit for the monitoring of sensing strips in less dangerous applications. It fulfils safety category 1 which means that it may only be used in applications in which the risk of injury is only for slight, normally reversible injuries. If there is any doubt select one of the control units on the following pages. A low current is transmitted from the unit's connectors (Z1 & Z2) through the sensing strip, and a closed circuit is formed via a resistor (8.2 kΩ). The control unit output cuts the power if anyone/anything presses the sensing strip and also following a short-circuit or open circuit.
| Approvals | CE, TÜV NORD |
|---|---|
| Cable length to clip list max | 50 m (min. 0,5 m2) |
| Contact current max | 4 A AC/DC |
| Contact voltage max | 250 V AC/24 V DC |
| Disconnection | 10 ms |
| Fuse output | 4 A |
| In compliance with | EMC, LVD, MD |
| IP class connection | IP20 |
| IP class of housing | IP40 |
| Mounting | DIN rail |
| PL | c enl.SS-EN ISO 13849-1 |
|---|---|
| Power consumption | 3 W |
| Supply voltage | 24 V DC |
| Temperature ambient from | -20 °C |
| Temperature ambient to | 55 °C |
| Terminal strip length max | 100 m |
| Tolerance max | 10 % |
| Tolerance min | -15 % |
Small control unit for the monitoring of sensing strips in less dangerous applications. It fulfils safety category 1 which means that it may only be used in applications in which the risk of injury is only for slight, normally reversible injuries. If there is any doubt select one of the control units on the following pages. A low current is transmitted from the unit's connectors (Z1 & Z2) through the sensing strip, and a closed circuit is formed via a resistor (8.2 kΩ). The control unit output cuts the power if anyone/anything presses the sensing strip and also following a short-circuit or open circuit.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Supply voltage | Price | ||
|---|---|---|---|---|
Cat.1 Resistance Evaluator 24Vdc 1x N/O Contact
Art:
30B4.1206
Copied
|
24 V DC
|
| ||
|
Cat.1 Resistance Evaluator 230Vac 1x N/O Contact
Art:
30B4.1200
Copied
|
230 V AC
|
|
Select a variant in the list
