| Additional features | EDM, reset functions |
|---|---|
| Approvals | CE, cULus, TÜV |

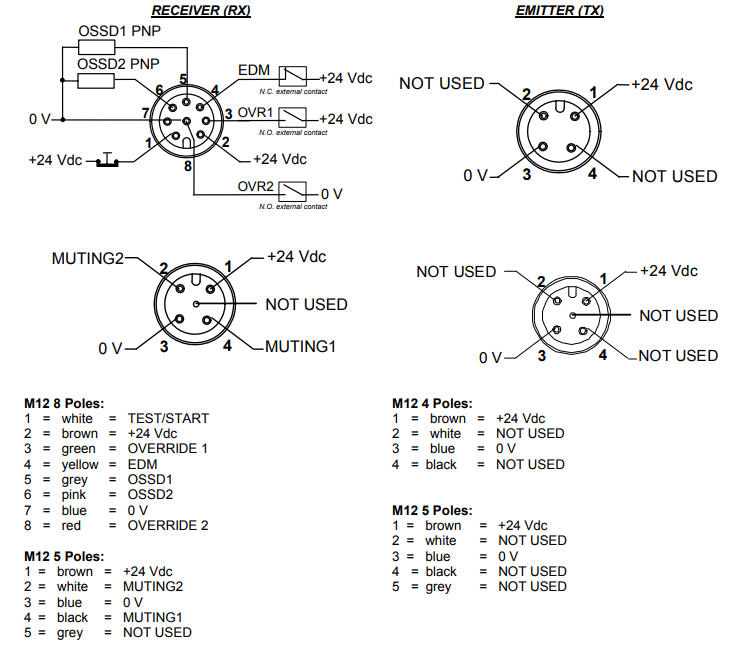

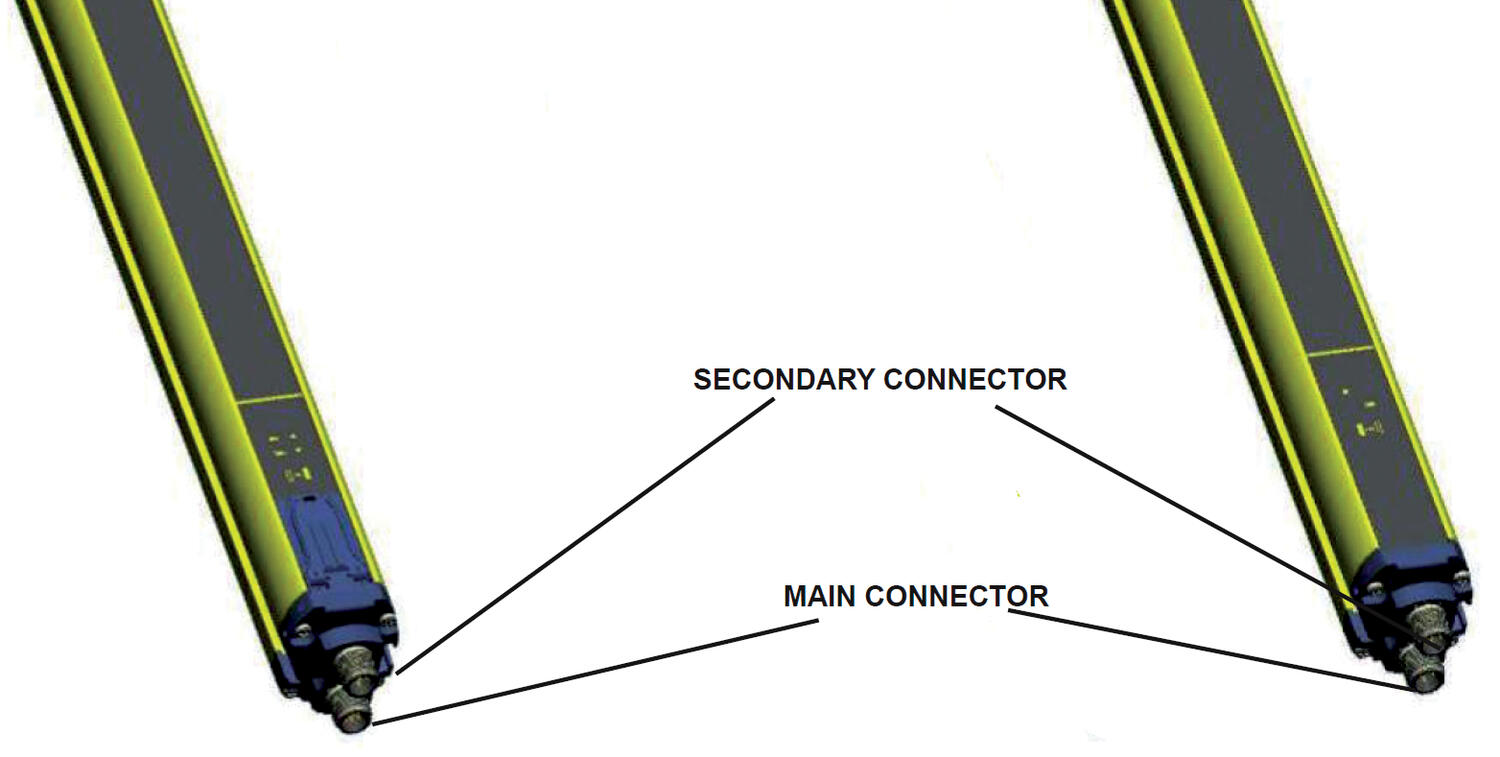

| Cable connection receiver | Receiver M12, 8-pole shielded + M12, 5-pole for muting |
| Cable connection transmitter | Transmitter M12, 4-pole, shielded + M12, 5-pole for muting |
| Cable length max | 50 m |
| Contact current max | 0,5 A |
| Distance max | 50 m |

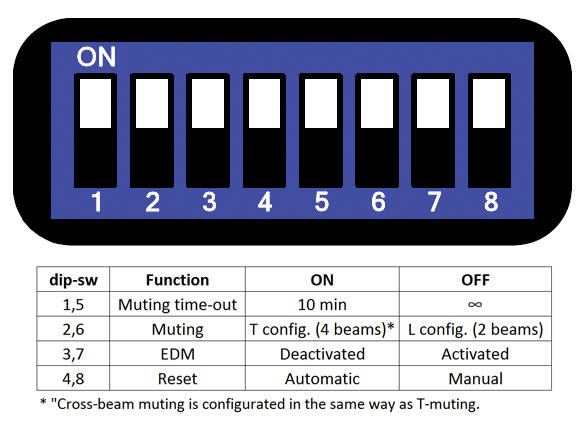

| Function | Manual/automatic restart, EDM |
| In compliance with | EMC, LVD, MD |
| IP class | IP65 |
| Material of body | Aluminium |
| Number of beams | 2 |
| PL | e (EN ISO 13849-1) |
| Power consumption | Transmitter 1,6W. Receiver 4,2 W. (without load) |
|---|---|

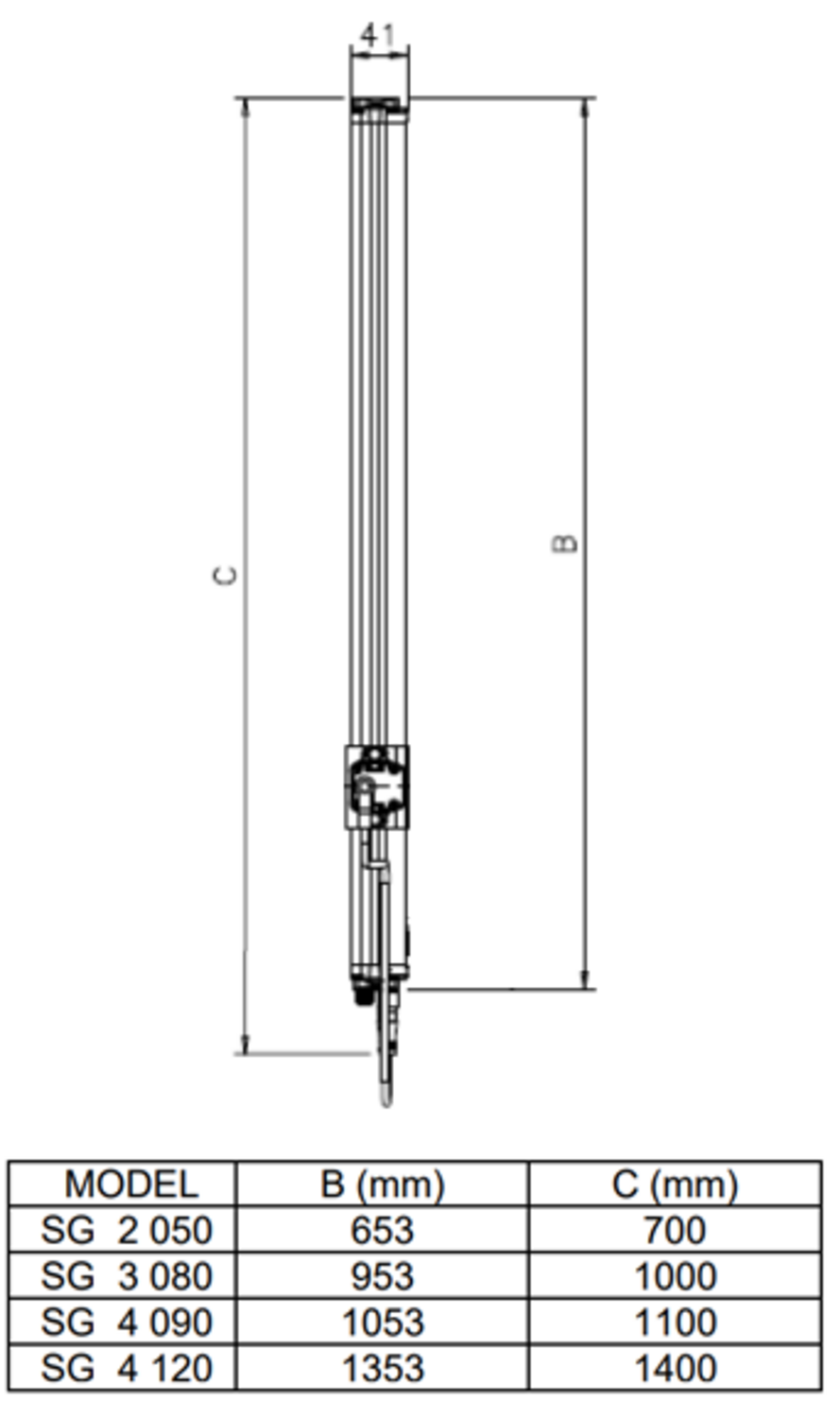

| Protection height | 500 mm |
| Range | 0,5-50 m |
| Safe outputs | 2 OSSD |
| SFF | 98,93 % |
| SIL | 3 (EN IEC 61508) |
| Supply voltage | 24 V DC |
| Temperature operational max | 55 °C |
| Temperature operational min | 0 °C |
| Type | 4 |
| Voltage tolerance | ±20 % |
Designed for high-performance safety applications such as material handling, conveyors, robotics, and system integration. OEM Automatic is excited to announce its latest supplier partnership with Hokuyo
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
ATEX ensures that both equipment and work processes are designed to minimize these risks and create a safe working environment.
We’re thrilled to welcome Tony Maton, our new Sales Engineer at OEM Automatic! Tony brings a wealth of knowledge and expertise in industrial automation and machine safety
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Number of beams | Protection height | Price | ||
|---|---|---|---|---|---|
SG4-S2-050-PP-W 2 Beam Type 4
Art:
SG4-S2-050-PP-W
Copied
|
2
|
500 mm
|
| ||
|
SG4-S3-080-PP-W 3 Beam Type 4
Art:
SG4-S3-080-PP-W
Copied
|
3
|
800 mm
|
| ||
|
SG4-S4-090-PP-W 4 Beam Type 4
Art:
SG4-S4-090-PP-W
Copied
|
4
|
900 mm
|
| ||
|
957851190 Type 4 Body Det 4-Beam 1200mm Prot Height MUTING
Art:
SG4-S4-120-PP-W
Copied
|
4
|
1200 mm
|
| ||

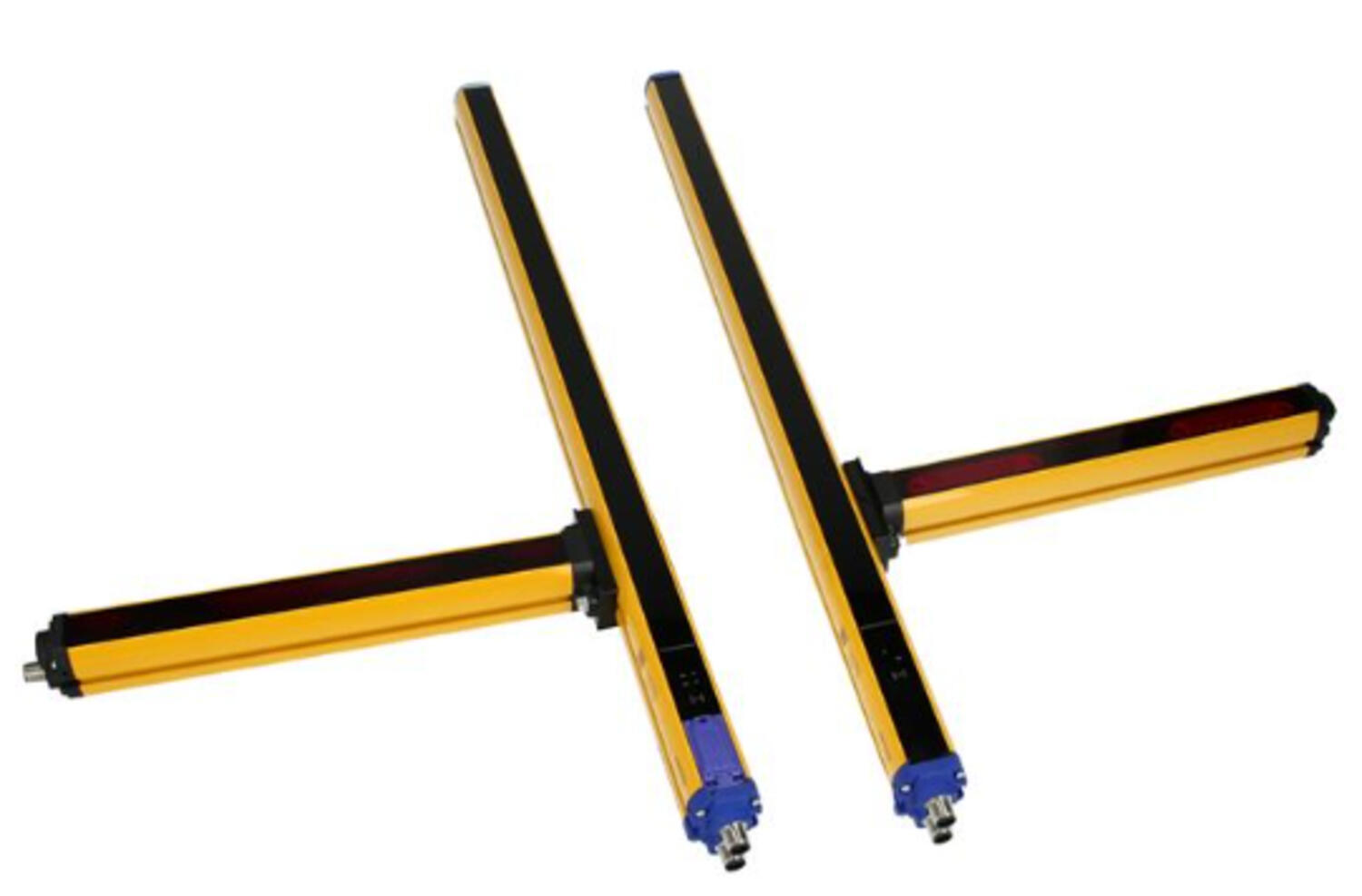

957851200 Type 4 Body Det 2-Bm 500mm Prot Ht L-Shape MUTING
Art:
SG4-L2-050-PP-W
Copied
|
2
|
500 mm
|
| ||
|
SG4-L3-080-PP-W 3 Beam Type 4
Art:
SG4-L3-080-PP-W
Copied
|
3
|
800 mm
|
| ||

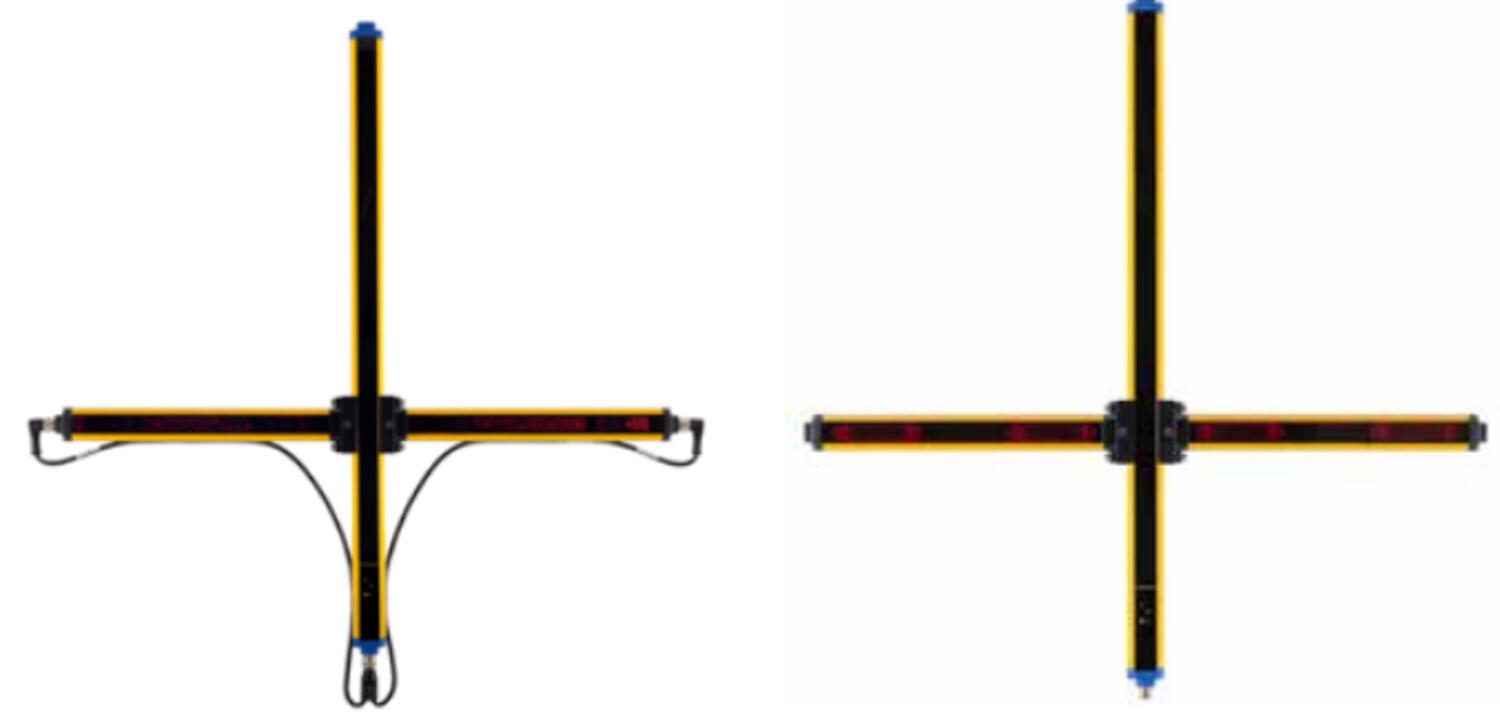

SG4-T2-050-PP-W 2 Beam Type 4
Art:
SG4-T2-050-PP-W
Copied
|
2
|
500 mm
|
| ||
|
SG4-T3-080-PP-W 3 Beam Type 4
Art:
SG4-T3-080-PP-W
Copied
|
3
|
800 mm
|
|
Select a variant in the list
