DATASENSING

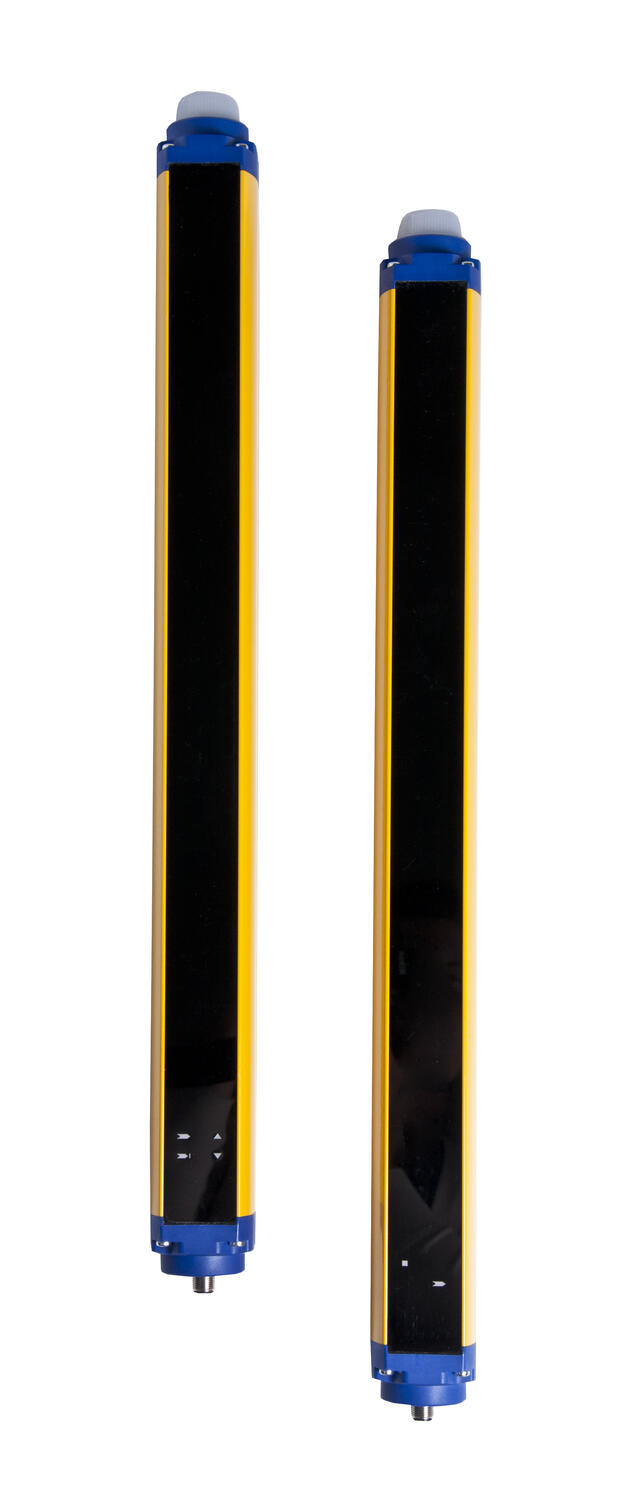

SG4-Body Big is a safety light curtain with a rubust profile and a range of up to 60 metres.
This Type 4 light curtain maintains the highest safety level according to the latest safety standards EN ISO 13849-1 and EN 62061.
SG4-Body Big light curtain has built-in monitored reset, an input for monitoring of external contactors and two solid state safety outputs which are also electronically monitored.
This means that the SG4- Body Big can work as a "standalone" unit if required and is not in need of any special control unit.
| Additional features | EDM + reset |
|---|---|
| Approvals | CE, cULus, TÜV |
| Cable connection receiver | M12, 8-pole, shielded |
| Cable connection transmitter | M12, 5-pole, shielded |
| Cable length max | 70 m |
| Contact current max | 0,5 A |
| DC | 99 % |
| Disconnection | 21 ms |
| In compliance with | EMC, LVD, MD |
| IP class | IP65 |
| Material of body | Aluminium |
| MTTFd | 98 year(s) |
| Number of beams | 33 |
| PL | e (EN ISO 13849-1) |
| Power consumption | Transmitter 2,5 W, receiver 4 W (without load) |
| Protection field | 660 mm |
|---|---|
| Range | 6-60 m |
| Resolution | 40 mm |
| Safe outputs | 2 x OSSD |
| SFF | 98,90 % |
| SIL | 3 (EN IEC 62061) |
| Storage temperature max | 70 °C |
| Storage temperature min | -25 °C |
| Supply voltage | 24 V DC, stabilized |
| T1 (Life time in years) | 20 |
| Temperature operational max | 55 °C |
| Temperature operational min | -10 °C |
| Voltage tolerance | ±20 % |
SG4-Body Big is a safety light curtain with a rubust profile and a range of up to 60 metres.
This Type 4 light curtain maintains the highest safety level according to the latest safety standards EN ISO 13849-1 and EN 62061.
SG4-Body Big light curtain has built-in monitored reset, an input for monitoring of external contactors and two solid state safety outputs which are also electronically monitored.
This means that the SG4- Body Big can work as a "standalone" unit if required and is not in need of any special control unit.
Designed for high-performance safety applications such as material handling, conveyors, robotics, and system integration. OEM Automatic is excited to announce its latest supplier partnership with Hokuyo
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
ATEX ensures that both equipment and work processes are designed to minimize these risks and create a safe working environment.
We’re thrilled to welcome Tony Maton, our new Sales Engineer at OEM Automatic! Tony brings a wealth of knowledge and expertise in industrial automation and machine safety
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Disconnection | Number of beams | Protection field | Price | ||
|---|---|---|---|---|---|---|
957851570 Type 4 40mm Res 600mm Protection Height LONG RANGE
Art:
SG4-40-060-OO-E
Copied
|
21 ms
|
33
|
660 mm
|
| ||
|
957851580 Type 4 40mm Res 900mm Protection Height LONG RANGE
Art:
SG4-40-090-OO-E
Copied
|
24 ms
|
48
|
960 mm
|
| ||
|
957851590 Type 4 40mm Res 1200mmProtection Height LONG RANGE
Art:
SG4-40-120-OO-E
Copied
|
27 ms
|
63
|
1260 mm
|
|
Select a variant in the list
