DATASENSING

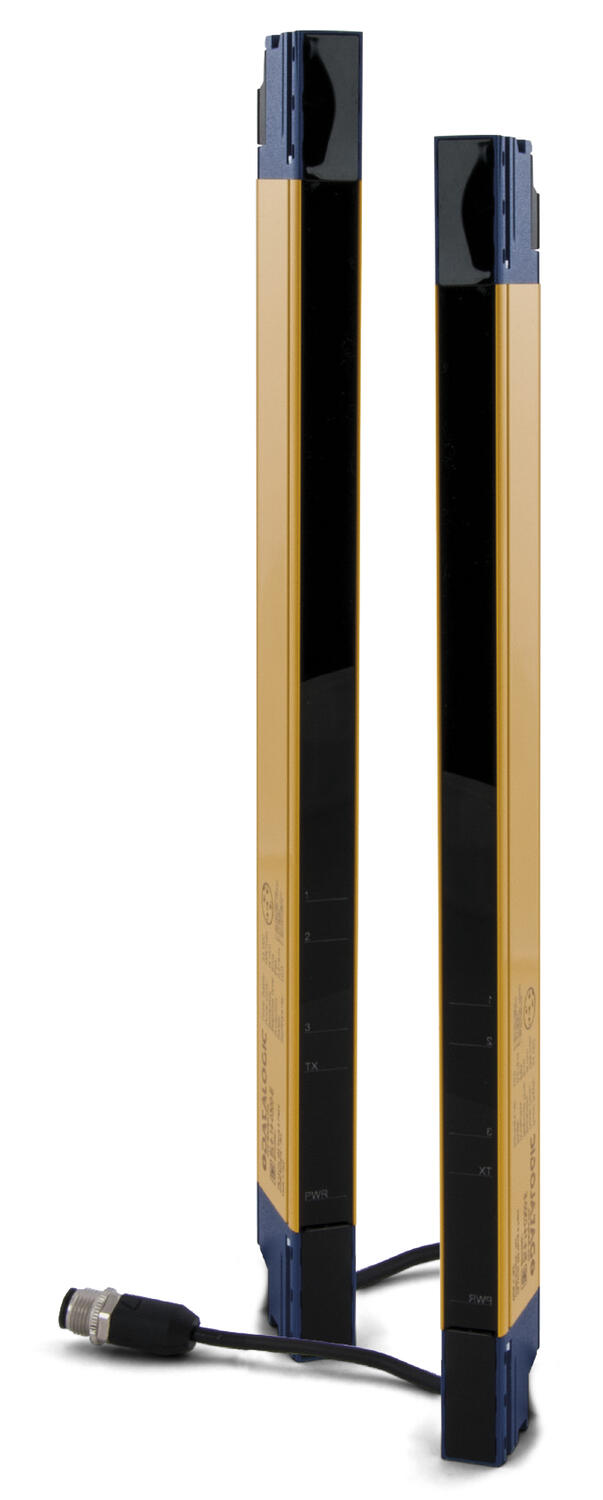

SLIM is a safety light curtain with a range of up to 6 metres designed to fit in the smallest spaces.
With 34 different protection heights at 30mm intervals it is one of the most flexible light curtains on the market.
This Type 4 light curtain maintains the highest safety level according to the latest safety standards EN ISO 13849-1 and EN 62061.
Datalogic's SLIM light curtain has built-in monitored reset, an input for monitoring of external contactors and two solid state safety outputs which are also electronically monitored.
This means that the SG4-Finger can work as a "standalone" unit if required and is not in need of any special control unit.
| Additional features | EDM, reset functions |
|---|---|
| Approvals | CE, cULus, TÜV |

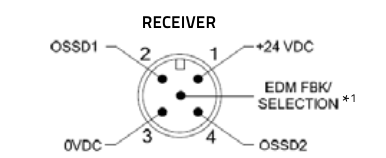

| Cable connection receiver | M12, 5-pole |
| Cable connection transmitter | M12, 5-pole |
| Cable length max | 20 m |
| Contact current max | 0,3 A |
| DC | 98,80 % |
| Distance max | 6 m |
| Function | Calibration mode, Manual/automatic restart, EDM |
| In compliance with | EMC, LVD, MD |
| IP class | IP65 |
| Material of body | Aluminium |
| MTTFd | 191 year(s) |
| Number of beams | 8 |
| PL | e (EN ISO 13849-1) |
| Power consumption | Transmitter 1,6W. Receiver 4,2 W. (without load) |
|---|---|
| Protection height | 150 mm |
| Range | 0,2-6 m |
| Reaction time | 7 ms |
| Resolution | 24 mm |
| Safe outputs | 2 OSSD |
| SFF | 98,93 % |
| SIL | 3 (EN IEC 62061) |
| Supply voltage | 24 V DC |
| T1 (Life time in years) | 20 |
| Temperature operational max | 55 °C |
| Temperature operational min | -10 °C |
| Type | 4 |
| Voltage tolerance | ±20 % |
SLIM is a safety light curtain with a range of up to 6 metres designed to fit in the smallest spaces.
With 34 different protection heights at 30mm intervals it is one of the most flexible light curtains on the market.
This Type 4 light curtain maintains the highest safety level according to the latest safety standards EN ISO 13849-1 and EN 62061.
Datalogic's SLIM light curtain has built-in monitored reset, an input for monitoring of external contactors and two solid state safety outputs which are also electronically monitored.
This means that the SG4-Finger can work as a "standalone" unit if required and is not in need of any special control unit.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Number of beams | Protection height | Reaction time | Resolution | Price | ||
|---|---|---|---|---|---|---|---|
957910340 Type 4 24mm Hand Res 150mm Prot Height SLIM
Art:
SL4-24-0150-E
Copied
|
8
|
150 mm
|
7 ms
|
24 mm
|
| ||
|
957910350 Type 4 24mm Hand Res 210mm Prot Height SLIM
Art:
SL4-24-0210-E
Copied
|
11
|
210 mm
|
7 ms
|
24 mm
|
| ||
|
957910360 Type 4 24mm Hand Res 270mm Prot Height SLIM
Art:
SL4-24-0270-E
Copied
|
14
|
270 mm
|
8 ms
|
24 mm
|
| ||
|
957910370 Type 4 24mm Hand Res 300mm Prot Height SLIM
Art:
SL4-24-0300-E
Copied
|
16
|
300 mm
|
8 ms
|
24 mm
|
| ||
|
957910380 Type 4 24mm Hand Res 330mm Prot Height SLIM
Art:
SL4-24-0330-E
Copied
|
17
|
330 mm
|
8 ms
|
24 mm
|
| ||
|
957910390 Type 4 24mm Hand Res 360mm Prot Height SLIM
Art:
SL4-24-0360-E
Copied
|
19
|
360 mm
|
8 ms
|
24 mm
|
| ||
|
957910400 Type 4 24mm Hand Res 390mm Prot Height SLIM
Art:
SL4-24-0390-E
Copied
|
20
|
390 mm
|
8 ms
|
24 mm
|
| ||
|
957910410 Type 4 24mm Hand Res 420mm Prot Height SLIM
Art:
SL4-24-0420-E
Copied
|
22
|
420 mm
|
9 ms
|
24 mm
|
| ||
|
957910420 Type 4 24mm Hand Res 450mm Prot Height SLIM
Art:
SL4-24-0450-E
Copied
|
24
|
450 mm
|
9 ms
|
24 mm
|
| ||
|
957910430 Type 4 24mm Hand Res 480mm Prot Height SLIM
Art:
SL4-24-0480-E
Copied
|
25
|
480 mm
|
9 ms
|
24 mm
|
| ||
|
957910440 Type 4 24mm Hand Res 510mm Prot Height SLIM
Art:
SL4-24-0510-E
Copied
|
27
|
510 mm
|
9 ms
|
24 mm
|
| ||
|
957910450 Type 4 24mm Hand Res 540mm Prot Height SLIM
Art:
SL4-24-0540-E
Copied
|
28
|
540 mm
|
9 ms
|
24 mm
|
| ||
|
957910460 Type 4 24mm Hand Res 570mm Prot Height SLIM
Art:
SL4-24-0570-E
Copied
|
30
|
570 mm
|
9 ms
|
24 mm
|
| ||
|
957910470 Type 4 24mm Hand Res 600mm Prot Height SLIM
Art:
SL4-24-0600-E
Copied
|
32
|
600 mm
|
9 ms
|
24 mm
|
| ||
|
957910480 Type 4 24mm Hand Res 630mm Prot Height SLIM
Art:
SL4-24-0630-E
Copied
|
33
|
630 mm
|
10 ms
|
14 mm
|
| ||
|
957910490 Type 4 24mm Hand Res 660mm Prot Height SLIM
Art:
SL4-24-0660-E
Copied
|
35
|
660 mm
|
10 ms
|
14 mm
|
| ||
|
957910500 Type 4 24mm Hand Res 690mm Prot Height SLIM
Art:
SL4-24-0690-E
Copied
|
36
|
690 mm
|
10 ms
|
14 mm
|
| ||
|
957910510 Type 4 24mm Hand Res 720mm Prot Height SLIM
Art:
SL4-24-0720-E
Copied
|
38
|
720 mm
|
10 ms
|
14 mm
|
| ||
|
957910520 Type 4 24mm Hand Res 750mm Prot Height SLIM
Art:
SL4-24-0750-E
Copied
|
40
|
750 mm
|
10 ms
|
14 mm
|
| ||
|
957910530 Type 4 24mm Hand Res 780mm Prot Height SLIM
Art:
SL4-24-0780-E
Copied
|
41
|
780 mm
|
10 ms
|
14 mm
|
| ||
|
957910540 Type 4 24mm Hand Res 810mm Prot Height SLIM
Art:
SL4-24-0810-E
Copied
|
43
|
810 mm
|
11 ms
|
14 mm
|
| ||
|
957910550 Type 4 24mm Hand Res 840mm Prot Height SLIM
Art:
SL4-24-0840-E
Copied
|
44
|
840 mm
|
11 ms
|
14 mm
|
| ||
|
957910560 Type 4 24mm Hand Res 870mm Prot Height SLIM
Art:
SL4-24-0870-E
Copied
|
46
|
870 mm
|
11 ms
|
14 mm
|
| ||
|
957910570 Type 4 24mm Hand Res 900mm Prot Height SLIM
Art:
SL4-24-0900-E
Copied
|
48
|
900 mm
|
11 ms
|
14 mm
|
| ||
|
957910580 Type 4 24mm Hand Res 930mm Prot Height SLIM
Art:
SL4-24-0930-E
Copied
|
49
|
930 mm
|
11 ms
|
14 mm
|
| ||
|
957910590 Type 4 24mm Hand Res 960mm Prot Height SLIM
Art:
SL4-24-0960-E
Copied
|
51
|
960 mm
|
11 ms
|
14 mm
|
| ||
|
957910600 Type 4 24mm Hand Res 990mm Prot Height SLIM
Art:
SL4-24-0990-E
Copied
|
52
|
990 mm
|
12 ms
|
14 mm
|
| ||
|
957910610 Type 4 24mm Hand Res 1020mm Prot Height SLIM
Art:
SL4-24-1020-E
Copied
|
54
|
1020 mm
|
12 ms
|
14 mm
|
| ||
|
957910620 Type 4 24mm Hand Res 1050mm Prot Height SLIM
Art:
SL4-24-1050-E
Copied
|
56
|
1050 mm
|
12 ms
|
14 mm
|
| ||
|
957910630 Type 4 24mm Hand Res 1080mm Prot Height SLIM
Art:
SL4-24-1080-E
Copied
|
57
|
1080 mm
|
12 ms
|
14 mm
|
| ||
|
957910640 Type 4 24mm Hand Res 1110mm Prot Height SLIM
Art:
SL4-24-1110-E
Copied
|
59
|
1110 mm
|
12 ms
|
14 mm
|
| ||
|
957910650 Type 4 24mm Hand Res 1140mm Prot Height SLIM
Art:
SL4-24-1140-E
Copied
|
60
|
1140 mm
|
12 ms
|
14 mm
|
| ||
|
957910660 Type 4 24mm Hand Res 1170mm Prot Height SLIM
Art:
SL4-24-1170-E
Copied
|
62
|
1170 mm
|
13 ms
|
14 mm
|
| ||
|
957910670 Type 4 24mm Hand Res 1200mm Prot Height SLIM
Art:
SL4-24-1200-E
Copied
|
64
|
1200 mm
|
13 ms
|
14 mm
|
| ||
|
957910680 Type 4 34mm Hand Res 150mm Prot Height SLIM
Art:
SL4-34-0150-E
Copied
|
6
|
150 mm
|
7 ms
|
34 mm
|
| ||
|
957910690 Type 4 34mm Hand Res 210mm Prot Height SLIM
Art:
SL4-34-0210-E
Copied
|
8
|
210 mm
|
7 ms
|
34 mm
|
| ||
|
957910700 Type 4 34mm Hand Res 270mm Prot Height SLIM
Art:
SL4-34-0270-E
Copied
|
10
|
270 mm
|
8 ms
|
34 mm
|
| ||
|
957910710 Type 4 34mm Hand Res 300mm Prot Height SLIM
Art:
SL4-34-0300-E
Copied
|
11
|
300 mm
|
8 ms
|
34 mm
|
| ||
|
957910720 Type 4 34mm Hand Res 330mm Prot Height SLIM
Art:
SL4-34-0330-E
Copied
|
12
|
330 mm
|
8 ms
|
34 mm
|
| ||
|
957910730 Type 4 34mm Hand Res 360mm Prot Height SLIM
Art:
SL4-34-0360-E
Copied
|
13
|
360 mm
|
9 ms
|
34 mm
|
| ||
|
957910740 Type 4 34mm Hand Res 390mm Prot Height SLIM
Art:
SL4-34-0390-E
Copied
|
14
|
390 mm
|
9 ms
|
34 mm
|
| ||
|
957910750 Type 4 34mm Hand Res 420mm Prot Height SLIM
Art:
SL4-34-0420-E
Copied
|
15
|
420 mm
|
9 ms
|
34 mm
|
| ||
|
957910760 Type 4 34mm Hand Res 450mm Prot Height SLIM
Art:
SL4-34-0450-E
Copied
|
16
|
450 mm
|
9 ms
|
34 mm
|
| ||
|
957910770 Type 4 34mm Hand Res 480mm Prot Height SLIM
Art:
SL4-34-0480-E
Copied
|
17
|
480 mm
|
10 ms
|
34 mm
|
| ||
|
957910780 Type 4 34mm Hand Res 510mm Prot Height SLIM
Art:
SL4-34-0510-E
Copied
|
18
|
510 mm
|
10 ms
|
34 mm
|
| ||
|
957910790 Type 4 34mm Hand Res 540mm Prot Height SLIM
Art:
SL4-34-0540-E
Copied
|
19
|
540 mm
|
10 ms
|
34 mm
|
| ||
|
957910800 Type 4 34mm Hand Res 570mm Prot Height SLIM
Art:
SL4-34-0570-E
Copied
|
20
|
570 mm
|
10 ms
|
34 mm
|
| ||
|
957910810 Type 4 34mm Hand Res 600mm Prot Height SLIM
Art:
SL4-34-0600-E
Copied
|
21
|
600 mm
|
10 ms
|
34 mm
|
| ||
|
957910820 Type 4 34mm Hand Res 630mm Prot Height SLIM
Art:
SL4-34-0630-E
Copied
|
22
|
630 mm
|
11 ms
|
34 mm
|
| ||
|
957910830 Type 4 34mm Hand Res 660mm Prot Height SLIM
Art:
SL4-34-0660-E
Copied
|
23
|
660 mm
|
11 ms
|
34 mm
|
| ||
|
957910840 Type 4 34mm Hand Res 690mm Prot Height SLIM
Art:
SL4-34-0690-E
Copied
|
24
|
690 mm
|
11 ms
|
34 mm
|
| ||
|
957910850 Type 4 34mm Hand Res 720mm Prot Height SLIM
Art:
SL4-34-0720-E
Copied
|
25
|
720 mm
|
11 ms
|
34 mm
|
| ||
|
957910860 Type 4 34mm Hand Res 750mm Prot Height SLIM
Art:
SL4-34-0750-E
Copied
|
26
|
750 mm
|
11 ms
|
34 mm
|
| ||
|
957910870 Type 4 34mm Hand Res 780mm Prot Height SLIM
Art:
SL4-34-0780-E
Copied
|
27
|
780 mm
|
12 ms
|
34 mm
|
| ||
|
957910880 Type 4 34mm Hand Res 810mm Prot Height SLIM
Art:
SL4-34-0810-E
Copied
|
28
|
810 mm
|
12 ms
|
34 mm
|
| ||
|
957910890 Type 4 34mm Hand Res 840mm Prot Height SLIM
Art:
SL4-34-0840-E
Copied
|
29
|
840 mm
|
12 ms
|
34 mm
|
| ||
|
957910900 Type 4 34mm Hand Res 870mm Prot Height SLIM
Art:
SL4-34-0870-E
Copied
|
30
|
870 mm
|
12 ms
|
34 mm
|
| ||
|
957910910 Type 4 34mm Hand Res 900mm Prot Height SLIM
Art:
SL4-34-0900-E
Copied
|
31
|
900 mm
|
12 ms
|
34 mm
|
| ||
|
957910920 Type 4 34mm Hand Res 930mm Prot Height SLIM
Art:
SL4-34-0930-E
Copied
|
32
|
930 mm
|
13 ms
|
34 mm
|
| ||
|
957910930 Type 4 34mm Hand Res 960mm Prot Height SLIM
Art:
SL4-34-0960-E
Copied
|
33
|
960 mm
|
13 ms
|
34 mm
|
| ||
|
957910940 Type 4 34mm Hand Res 990mm Prot Height SLIM
Art:
SL4-34-0990-E
Copied
|
34
|
990 mm
|
13 ms
|
34 mm
|
| ||
|
957910950 Type 4 34mm Hand Res 1020mm Prot Height SLIM
Art:
SL4-34-1020-E
Copied
|
35
|
1020 mm
|
13 ms
|
34 mm
|
| ||
|
957910960 Type 4 34mm Hand Res 1050mm Prot Height SLIM
Art:
SL4-34-1050-E
Copied
|
36
|
1050 mm
|
14 ms
|
34 mm
|
| ||
|
957910970 Type 4 34mm Hand Res 1080mm Prot Height SLIM
Art:
SL4-34-1080-E
Copied
|
37
|
1080 mm
|
14 ms
|
34 mm
|
| ||
|
957910980 Type 4 34mm Hand Res 1110mm Prot Height SLIM
Art:
SL4-34-1110-E
Copied
|
38
|
1110 mm
|
14 ms
|
34 mm
|
| ||
|
957910990 Type 4 34mm Hand Res 1140mm Prot Height SLIM
Art:
SL4-34-1140-E
Copied
|
39
|
1140 mm
|
14 ms
|
34 mm
|
| ||
|
957911000 Type 4 34mm Hand Res 1170mm Prot Height SLIM
Art:
SL4-34-1170-E
Copied
|
40
|
1170 mm
|
15 ms
|
34 mm
|
| ||
|
957911010 Type 4 34mm Hand Res 1200mm Prot Height SLIM
Art:
SL4-34-1200-E
Copied
|
41
|
1200 mm
|
15 ms
|
34 mm
|
|
Select a variant in the list
