| Approvals | CE, cULus, TÜV |
|---|---|
| Cable connection receiver | M12, 4-pole |
| Cable connection transmitter | M12, 4-pole |
| Cable length max | 50 m |
| Contact current max | 0,5 A |
| DC | 98,80% |
| In compliance with | EMC, LVD, MD |
| IP class | IP65 |

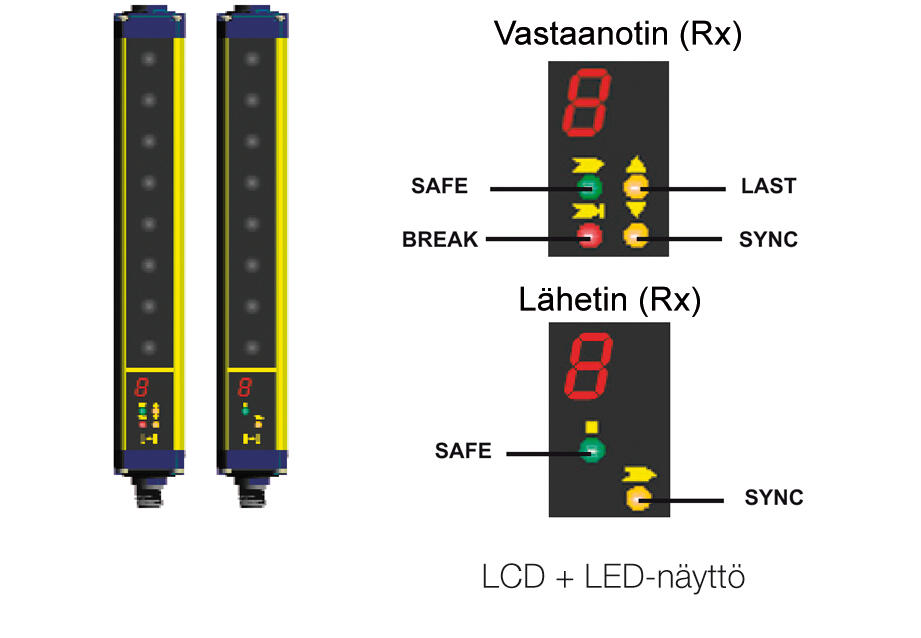

| LED indication | 6 x LED, 7-segment (SSD) display |
| Material of body | Aluminium |
| MTTFd | 444 year(s) |
| Number of beams | 16 |
| PL | e (EN ISO 13849-1) |
| Power consumption | Transmitter max. 2,5 W, receiver 3,5 W (without load) |
| Protection height | 150 mm |
|---|---|
| Range | 0,2-6 m |
| Reaction time | 11 ms |
| Resolution | 14 mm |
| Safe outputs | 2 OSSD |
| SFF | 99,30 % |
| SIL | 3 (EN IEC 61508) |
| Supply voltage | 24 V DC, stabilized |
| T1 (Life time in years) | 20 |
| Temperature operational max | 55 °C |
| Temperature operational min | 0 °C |
| Type | 4 |
| Voltage tolerance | ±20 % |
Optimise your production line with encoders, inclinometers, displays and slip rings
Designed for high-performance safety applications such as material handling, conveyors, robotics, and system integration. OEM Automatic is excited to announce its latest supplier partnership with Hokuyo
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
ATEX ensures that both equipment and work processes are designed to minimize these risks and create a safe working environment.
We’re thrilled to welcome Tony Maton, our new Sales Engineer at OEM Automatic! Tony brings a wealth of knowledge and expertise in industrial automation and machine safety
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Number of beams | Protection height | Reaction time | Price | ||
|---|---|---|---|---|---|---|
957901460 Type 4 14mm Finger Res 150mm Protection Height
Art:
SG4-14-015-OO-X
Copied
|
16
|
150 mm
|
11 ms
|
| ||
|
957901470 Type 4 14mm Finger Res 300mm Protection Height
Art:
SG4-14-030-OO-X
Copied
|
32
|
300 mm
|
15 ms
|
| ||
|
957901480 Type 4 14mm Finger Res 450mm Protection Height
Art:
SG4-14-045-OO-X
Copied
|
48
|
450 mm
|
18 ms
|
| ||
|
957901490 Type 4 14mm Finger Res 600mm Protection Height
Art:
SG4-14-060-OO-X
Copied
|
64
|
600 mm
|
22 ms
|
| ||
|
957901500 Type 4 14mm Finger Res 750mm Protection Height
Art:
SG4-14-075-OO-X
Copied
|
80
|
750 mm
|
25 ms
|
| ||
|
957901510 Type 4 14mm Finger Res 900mm Protection Height
Art:
SG4-14-090-OO-X
Copied
|
96
|
900 mm
|
29 ms
|
| ||
|
957901520 Type 4 14mm Finger Res 1050mm Protection Height
Art:
SG4-14-105-OO-X
Copied
|
112
|
1050 mm
|
33 ms
|
| ||
|
957901530 Type 4 14mm Finger Res 1200mm Protection Height
Art:
SG4-14-120-OO-X
Copied
|
128
|
1200 mm
|
36 ms
|
| ||
|
957901540 Type 4 14mm Finger Res 1350mm Protection Height
Art:
SG4-14-135-OO-X
Copied
|
144
|
1350 mm
|
40 ms
|
| ||
|
957901550 Type 4 14mm Finger Res 1500mm Protection Height
Art:
SG4-14-150-OO-X
Copied
|
160
|
1500 mm
|
43 ms
|
| ||
|
957901560 Type 4 14mm Finger Res 1650mm Protection Height
Art:
SG4-14-165-OO-X
Copied
|
176
|
1650 mm
|
47 ms
|
| ||
|
957901570 Type 4 14mm Finger Res 1800mm Protection Height
Art:
SG4-14-180-OO-X
Copied
|
192
|
1800 mm
|
50 ms
|
|
Select a variant in the list
