Synchronous Motors
AC synchronous motors are widely used in applications where a precise number of movements are required in a predefined time frame, along with a relatively low torque demand - an analogue clock is perhaps one of the best examples of this, as well as turntables and HVAC actuators applications.
Product news BlogThe rotation speed of a synchronous motor is dictated by the AC supply frequency and the number of motor poles. As supply frequency is typically very stable, whilst the voltage itself will fluctuate slightly, locking the speed to the frequency results in an extremely solid motor output rpm which can then be stepped down via a gearbox to suit application requirements.
Motors are available as either single direction, or bi-directional – with the direction being controlled by switching in an integrated capacitor.

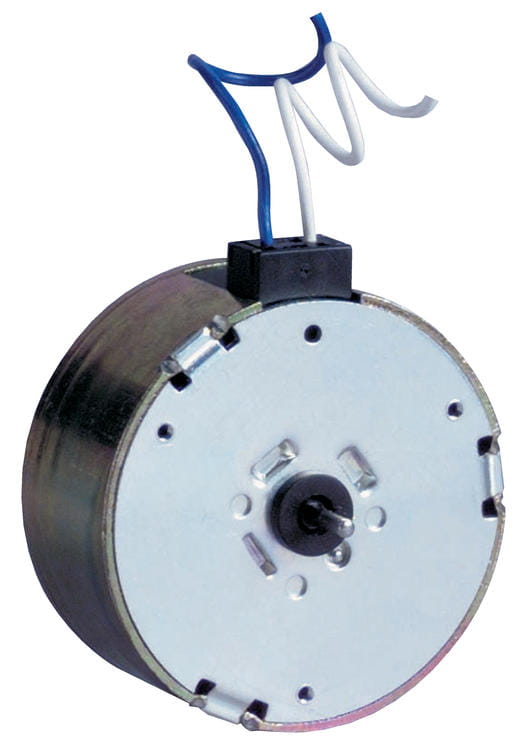

An overview of the Crouzet AC synchronous motor ranges is shown below, the output shaft speed can be dropped to as low as one revolution per hour if need.
| Single Direction Options | Reversible Options | |
| Nominal power range | 0.2W / 0.4W | 0.3W - 3W |
| Nominal voltage range | 24V - 240V | 50 Hz / 60 Hz | 24V - 240V | 50 Hz / 60 Hz |
| Nominal speed range | 600 RPM - 720 RPM | 250 RPM - 600 RPM |
| Nominal torque range | 2.5mNm / 8mNm | 10mNm - 110mNm |
| Diameter | 47mm | 35 / 51 / 57 / 65mm |
| Noise level | 45dBA | 30dBA |
| Service life | 10 million on/off cycles | 20,000hrs lifetime |
| Standard Certifications | UL / CE / ROHS | UL / CE / ROHS |
Crouzet have been producing motors for well over 70 years and are renowned for producing the best synchronous motors available in the market today – if you need smooth, quiet and reliable performance in a synchronous motor application, with a wide range of configuration options, then Crouzet is the way to go.
To speak to us about our motors you can call 0116 284 9900 or email [email protected].
