OEM Scanners



OEM or embedded barcode scanners are often used in applications such as service kiosks, airport boarding pass gates, EV charging posts, life science/lab automation and product dispensers.

Datalogic being are the forefront of all things barcode scanning offer a comprehensive range of solutions. They offer board level barcode scanning solutions often in a intergated decoder design or pure scan engine design. If you need information on which type you may require please contact us for information.

The GFS & GFE range are great when space isnt an issue but if you need a ultra compact solution maybe try the DE2011.
\"\"
13 products with 36 variants
Gryphon I GFS4100.png
DATALOGIC

Datalogic Gryphon GFS4100

1D self contained OEM scanner

  • Maximum resolution 0.076mm
  • Humidity (Non-Condensing) 95%
  • USB/RS-232 interfaces
  • Ambient light 0-100,000 lux
Product has 2 parts.
More information More information
Gryphon I GFS4400 2D.png
DATALOGIC

Datalogic Gryphon GFS4400

1D/2D self-contained

  • Maximum resolution 0.178mm
  • Humidity (Non-Condensing) 5-95%
  • USB/RS-232 interfaces
  • Ambient light 0-100,000 lux
Product has 2 parts.
More information More information
Gryphon I GFE4400 2D.png
DATALOGIC

Datalogic GFE4400 embedded

1D/2D OEM Scanner

  • Maximum resolution 0.178mm
  • Humidity (Non-Condensing) 5-95%
  • USB/RS-232 interfaces
  • Ambient light 0-100,000 lux
Product has 2 parts.
More information More information
DATALOGIC

Datalogic DE2011-DL ultra-compact

1D/2D Ultra compact scan engine

  • Maximum resolution 0.195mm
  • Humidity (Non-Condensing) 5-95%
  • 21-pin ZIF connector interface
  • Ambient light 0-100,000 lux
Product has 1 parts.
More information More information

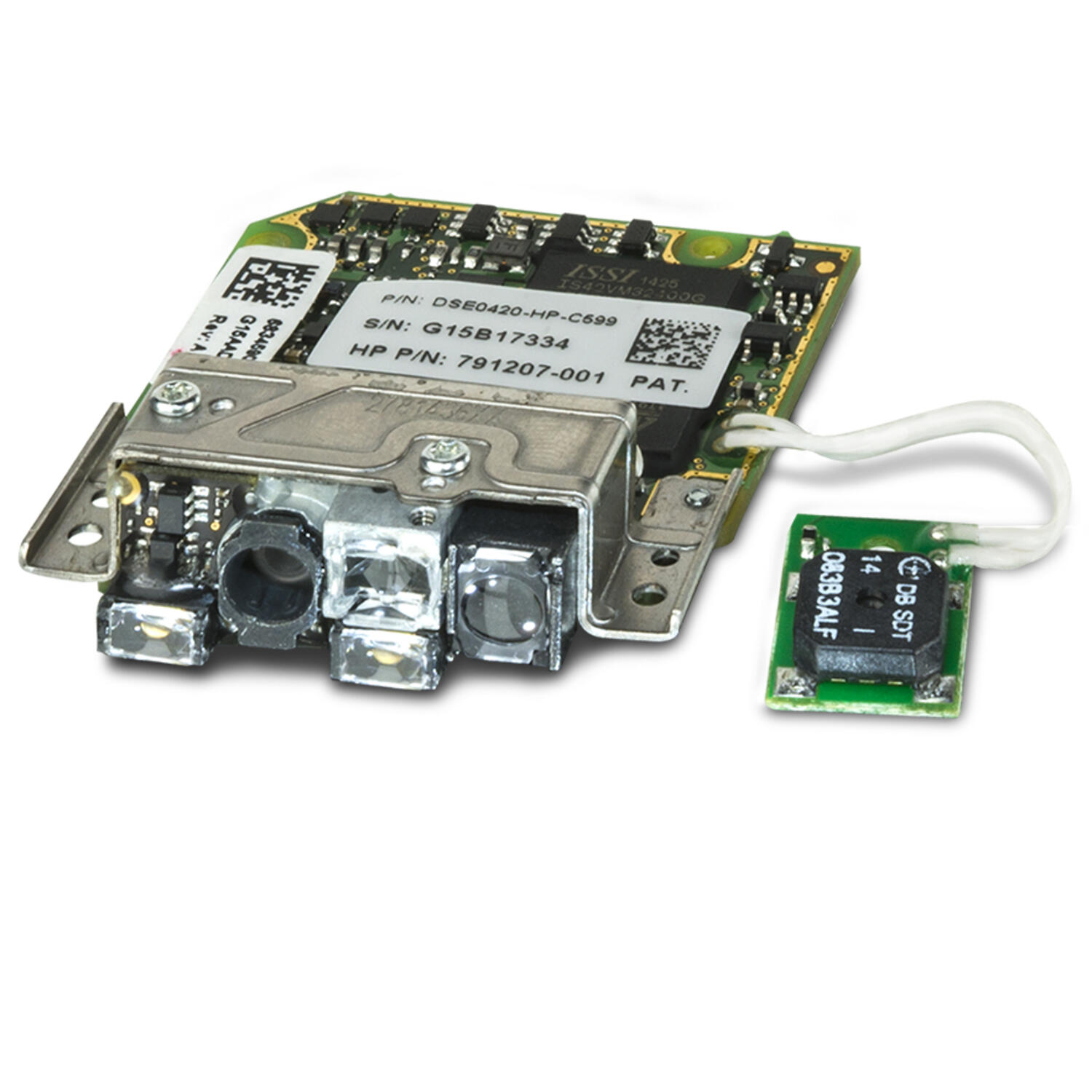

DSE0420 Scan Module.png
DATALOGIC

Datalogic DSE0420 decoded

  • Maximum resolution 7.5 mils
  • Humidity (Non-Condensing) 5-95%
  • 8-pin connector/microUSB interfaces
  • Ambient light 0-100,000 lux
Product has 2 parts.
More information More information
DATALOGIC

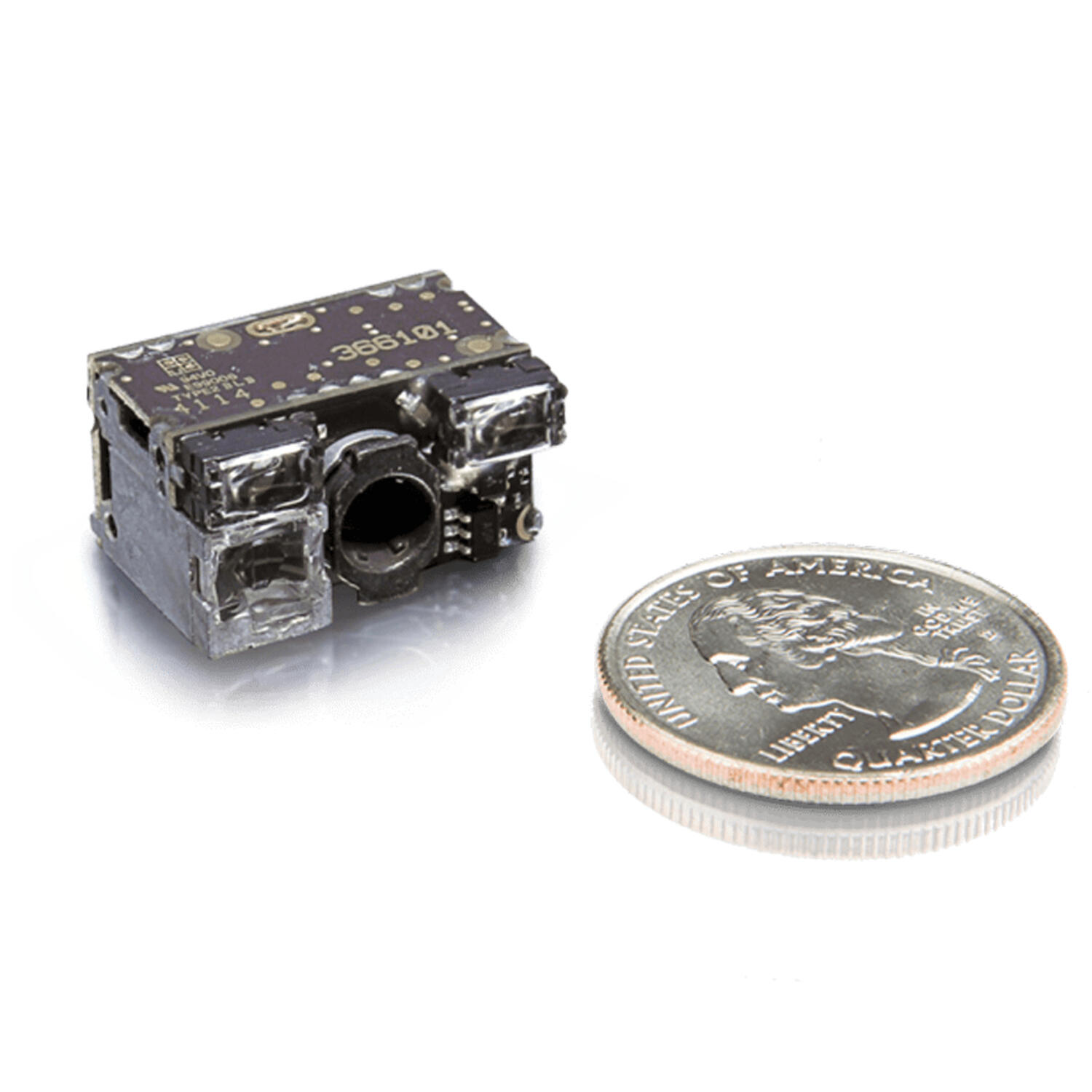

Datalogic DE2X12 Halogen 2D MP

  • Maximum resolution DL/WA 6 mils, SR/MR 7.5 mils
  • Humidity (Non-Condensing) 5 - 95%
  • 21-pin ZIF connector
  • Ambient light 0-100,000 lux
Product has 4 parts.
More information More information
DATALOGIC

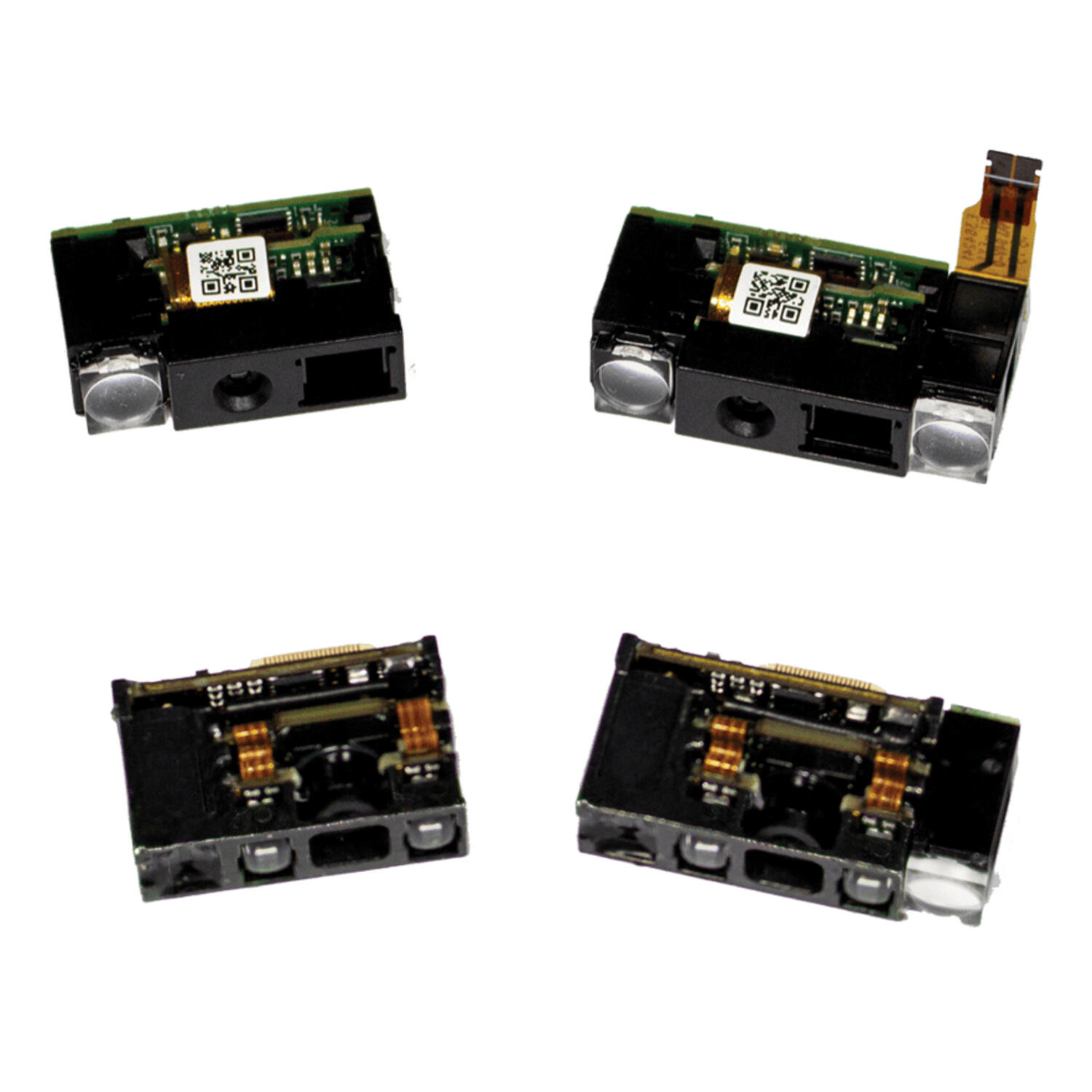

Datalogic DE210X Halogen

  • Maximum resolution range 6 to 7.5 mils
  • Humidity (Non-Condensing) 5-95%
  • 21-pin ZIF connector
  • Ambient light 0-100,000 lux
Product has 2 parts.
More information More information
DATALOGIC

Datalogic DE2171-AF Halogen

  • Point and shoot operation
  • Humidity (Non-Condensing) 95%
  • 27-pin ZIF connector interface
  • Ambient light up to 100,000 lux
Product has 1 parts.
More information More information
DATALOGIC

Datalogic 1500i Magellan

  • Maximum resolution 0.130 mm / 5 mils
  • Humidity (Non-Condensing) 5-95%
  • USB/RS-232 interfaces
  • Ambient light 0-86,100 lux
Product has 1 parts.
More information More information
DATALOGIC

Datalogic DSE04X1 decoded

  • Maximum resolution 7.5 mils
  • Humidity (Non-Condensing) 5 - 95%
  • USB/RS-232/8-pin zif cable interfaces
  • Ambient light 0-100,000 lux
Product has 8 parts.
More information More information
DATALOGIC

Datalogic DSM04XX Fixed

  • Maximum resolution 7.5 mils
  • Humidity (Non-Condensing) 5 - 95%
  • USB/RS-232 interfaces
  • Ambient light 0-100,000 lux
Product has 7 parts.
More information More information
DATALOGIC

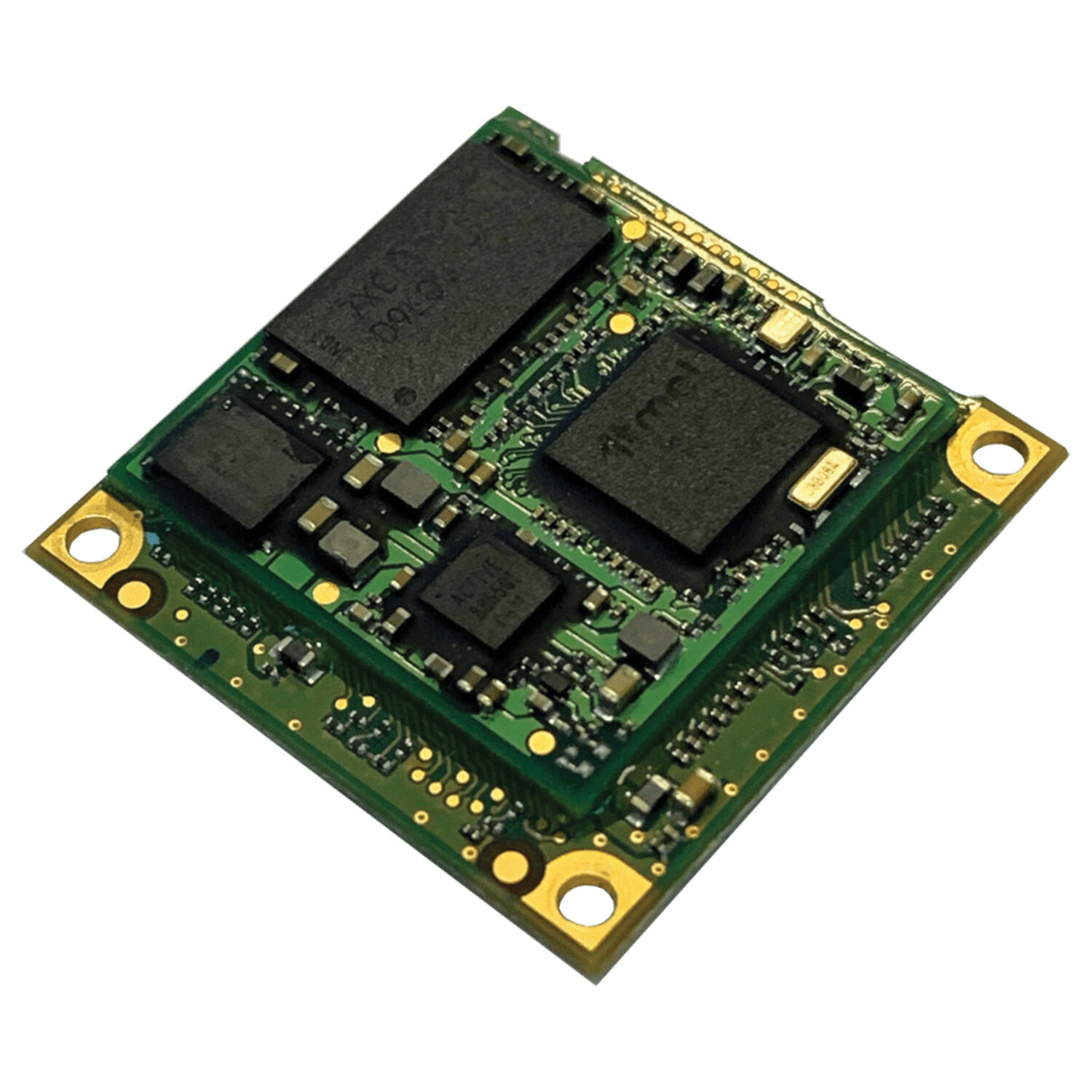

Datalogic DB0431 Decoder

  • Plug and play integration
  • Humidity (Non-Condensing) 95% RH
  • USB/RS-232 interfaces
  • Provides fast decoding
Product has 1 parts.
More information More information
DATALOGIC

Datalogic DE1011 1D scan engine

  • Maximum resolution 0.0762 mm /2.5 mils
  • Humidity (Non-Condensing) 5 - 95%
  • Decoded/Undecoded 10-pin ZIF connector
  • Ambient light 0-100,000 lux
Product has 3 parts.
More information More information
