Absolute single turn encoders

With absolute encoders, a coded position value is assigned to each angular position in order to record the absolute position. Even after the encoder has been disconnected from the power supply, the unique position is still available.

- Sizes from Ø 24 mm to Ø 70mm
- Resolution up to 21 bit single-turn and up to 24 bit multiturn
- Working temperature range from -40 °C to +90 °C
- SIL2/PLd or SIL3/PLe versions available all TUV approved
26 products with 39 variants
KÜBLER

Sendix series M3678A encoder

  • Dimension Ø 36 mm
  • Working temperature -40°C to +85°C
  • Protection level IP65 and IP67
  • Resolution maximum 14 bits ST
Product has 2 parts.
More information More information
KÜBLER

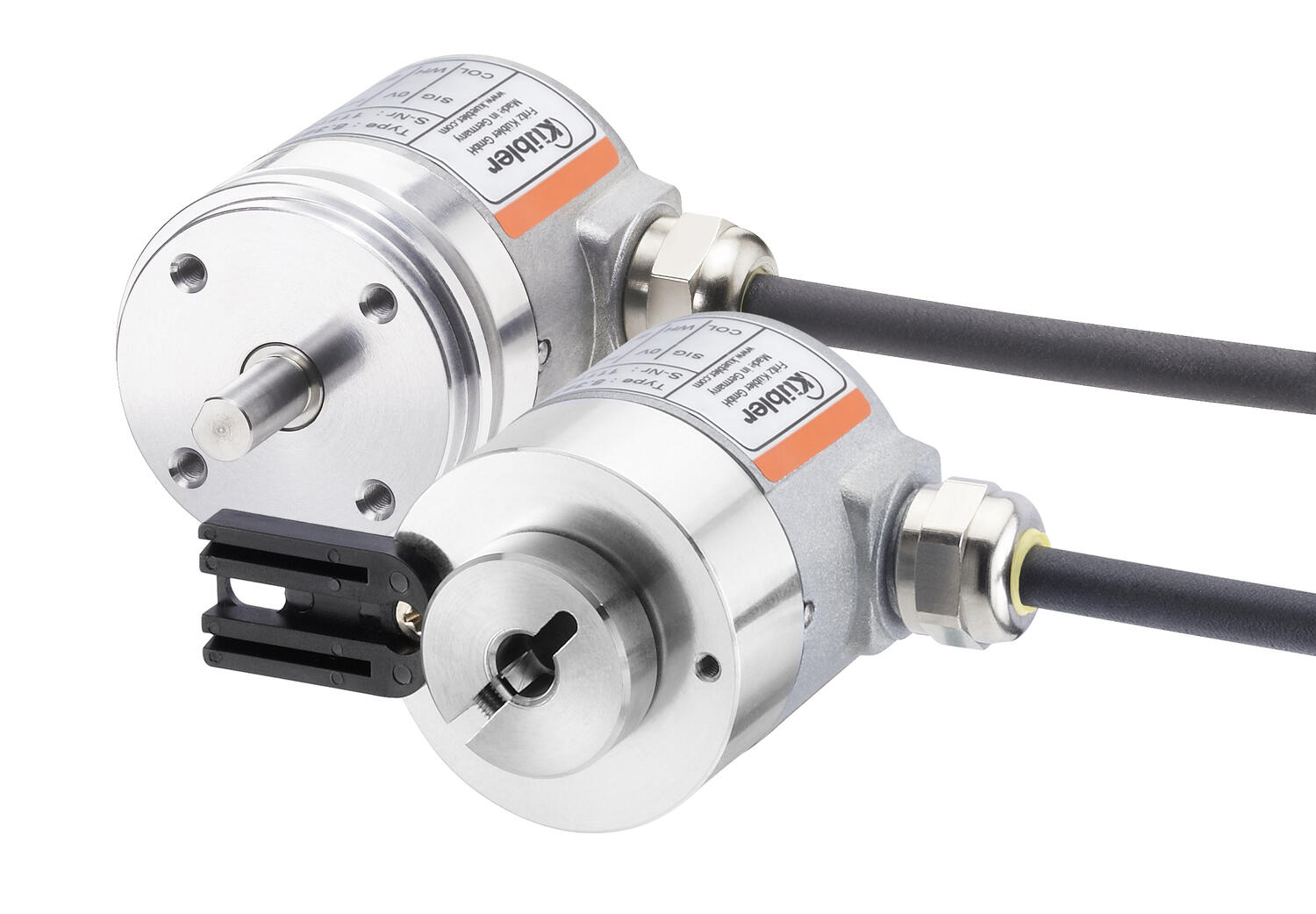

Kuebler - Absolute-coded Angular Transmitter Sendix 3651/3671, Magnet-Coded, Analog, Ø36 mm

  • Housing diameter Ø36 mm
  • analog Output
  • High shock resistance
  • Degree of protection IP67 / IP69K
Product has 2 parts.
More information More information
KÜBLER

Kuebler - Absolute-coded Angular Transmitter Sendix M3658 / M3678, Magnet-Coded, CANopen, Ø36 mm

  • Housing diameter Ø36 mm
  • CANopen
  • Safety-Lockplus™
  • IP67/IP69K
Product has 2 parts.
More information More information
KÜBLER

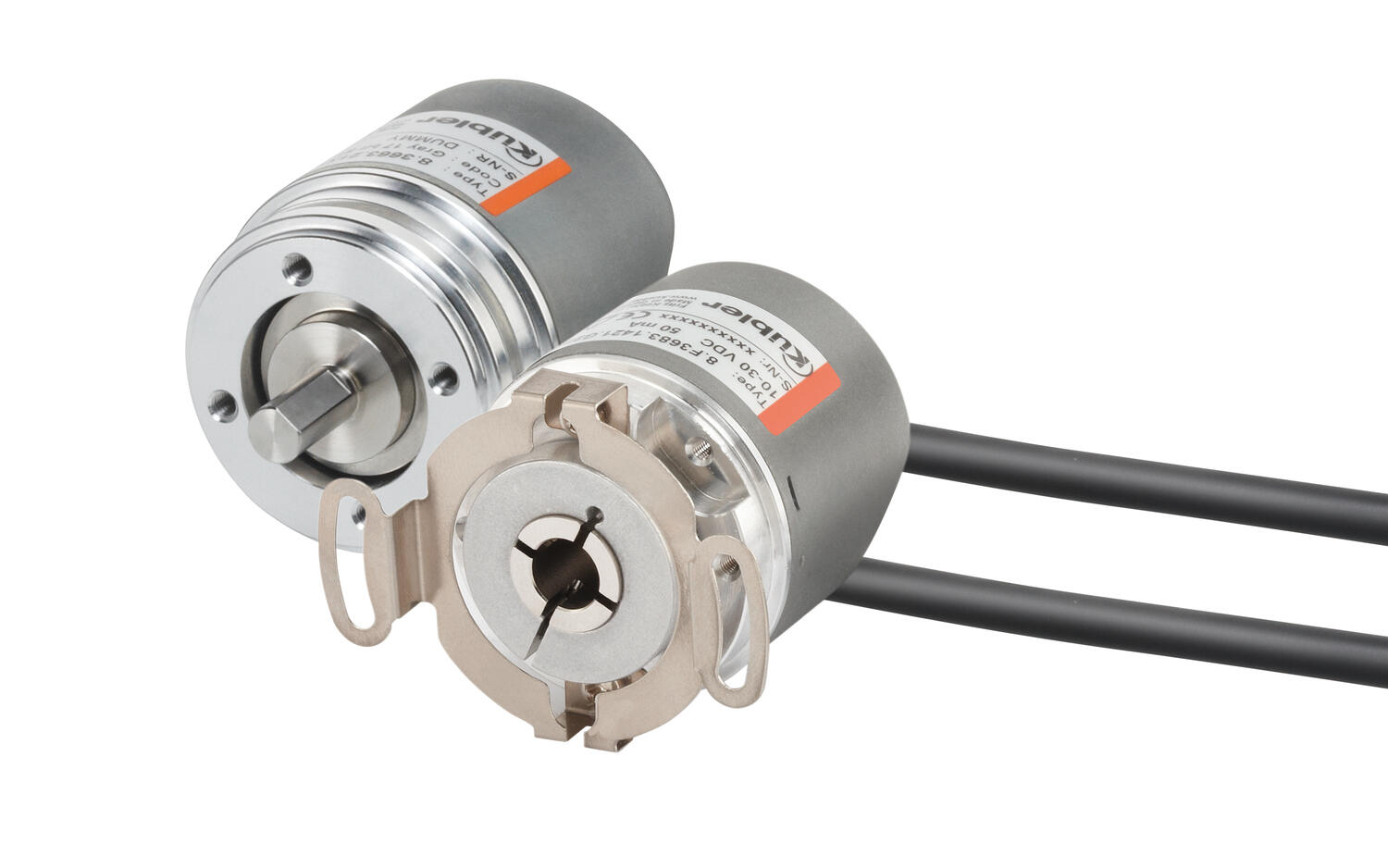

Kuebler - Absolute-coded Angular Transmitter Sendix F3653 / F3673, Optical, SSI, Ø36 mm

  • Housing diameter Ø36 mm
  • SSI-Interface
  • 17 bit resolution
  • -40 to +90 ° C working temperature
Product has 2 parts.
More information More information
KÜBLER

Kuebler - Absolute-coded Angular Transmitter Sendix F3658 / F3678, Optical, CANOpen, Ø36 mm

  • Housing diameter Ø36 mm
  • CANopen - Interface
  • 16 bit resolution
  • -40 to +85 ° C working temperature
Product has 2 parts.
More information More information
Kubler absolute single turn encoder 5853/5873
KÜBLER

Kuebler - Absolute-coded Angular Transmitter Sendix 5853/5873, Optical, SSI, Ø58 mm

  • Housing diameter Ø58 mm
  • SSI-Interface
  • High shock resistance
  • High degree of enclosure
Product has 2 parts.
More information More information

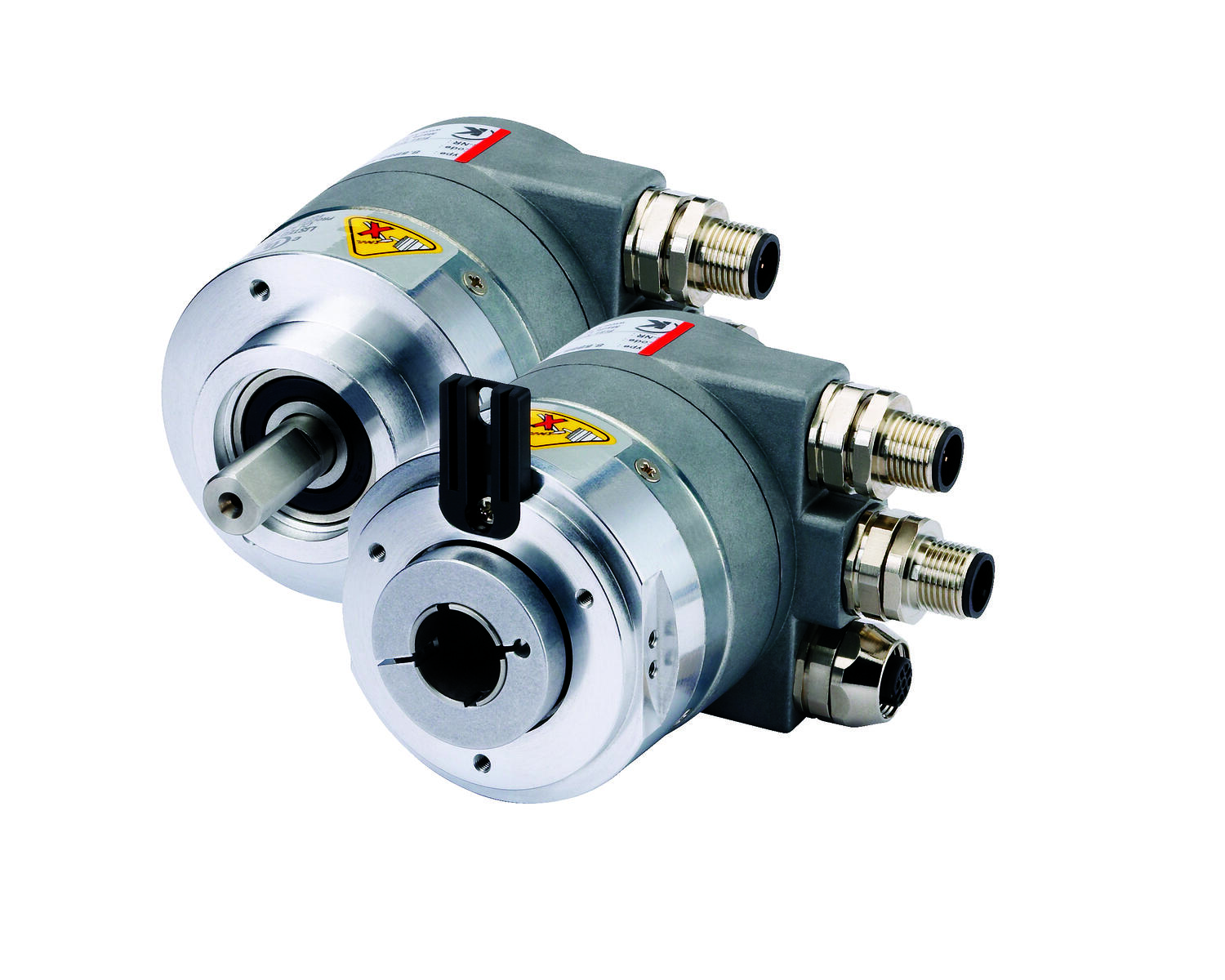

5858-5878.tif
KÜBLER

Kuebler - Absolute-coded Angular Transmitter Sendix 5858/5878, Optical, Profibus, Ø58 mm

  • Housing diameter Ø58 mm
  • Profibus
  • Safety-Lock™
  • High enclosure class
Product has 2 parts.
More information More information
5858-5878.tif
KÜBLER

Kuebler - Absolute-coded Angular Transmitter Sendix 5858/5878, Optical, EtherCAT, Ø58 mm

  • Housing diameter Ø58 mm
  • EtherCAT
  • Safety-Lock™
  • High enclosure class
Product has 2 parts.
More information More information

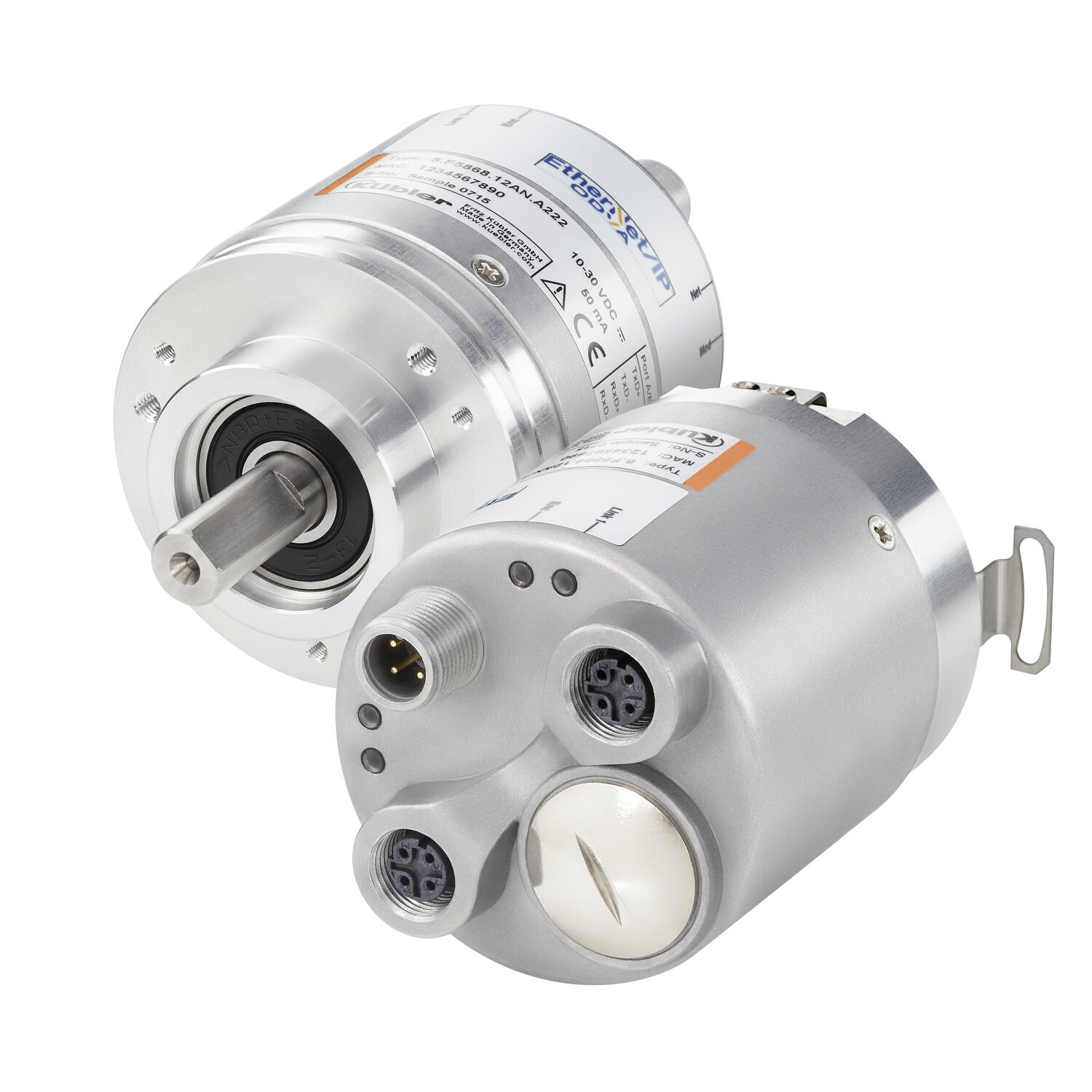

z2274_F5868-F5888_EtherNetIP_Rueck_20150825_rgb.tif
KÜBLER

Kuebler - Absolute Encoded Angular Transmitter Sendix F5858 / F5878, Optical, EtherNet / IP, Ø58 mm

  • Housing diameter Ø58 mm
  • EtherNet/IP
  • Safety-Lock™
  • Quick startup
Product has 2 parts.
More information More information
5858-5878.tif
KÜBLER

Kuebler - Absolute-coded Angular Transmitter Sendix 5858/5878, Optical, CANopen, Ø58m

  • Housing diameter Ø58 mm
  • CANopen
  • Safety-Lock™
  • High degree of enclosure
Product has 2 parts.
More information More information
KÜBLER

Kuebler - Absolute-coded Angular Transmitter Sendix 5858/5878, Optical, ProfiNet, Ø58 mm

  • Housing diameter Ø58 mm
  • ProfiNet
  • Safety-Lock™
  • High enclosure class
Product has 2 parts.
More information More information

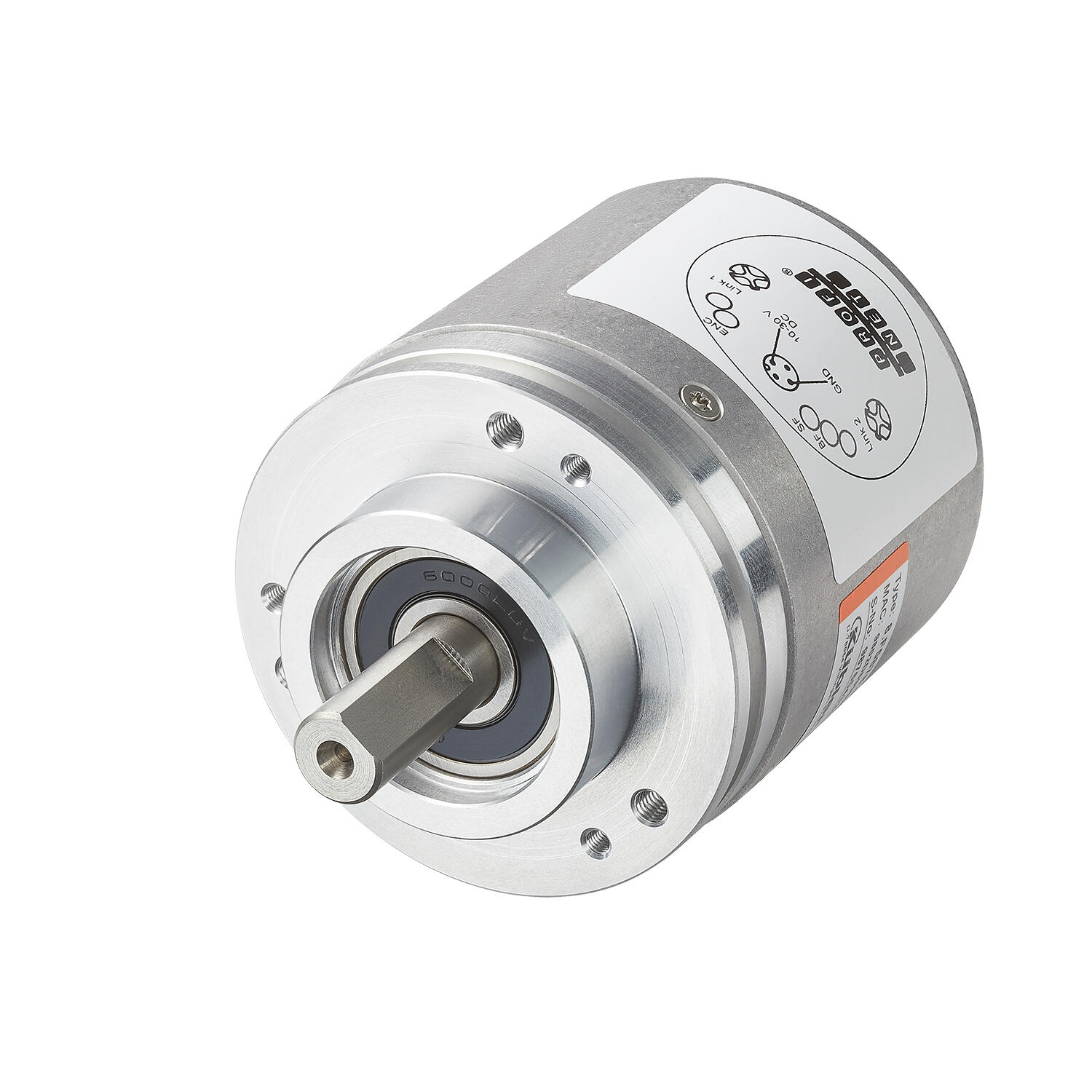

single turn.png
KÜBLER

Kuebler - Sendix series S58 PROFIsafe encoders

  • Dimension Ø 58 mm
  • Working temperature -40°C to +80°C
  • Protection level IP65 and IP67
  • Resolution maximum 24 bit ST
Product has 2 parts.
More information More information
M3658AR canopen.png
KÜBLER

Sendix M3658AR singleturn CANopen encoder

  • Dimension Ø 36 mm
  • Working temperature -40°C to +85°C
  • Protection level IP66, IP67, IP69k
  • Resolution maximum 14 bits ST
Product has 1 parts.
More information More information

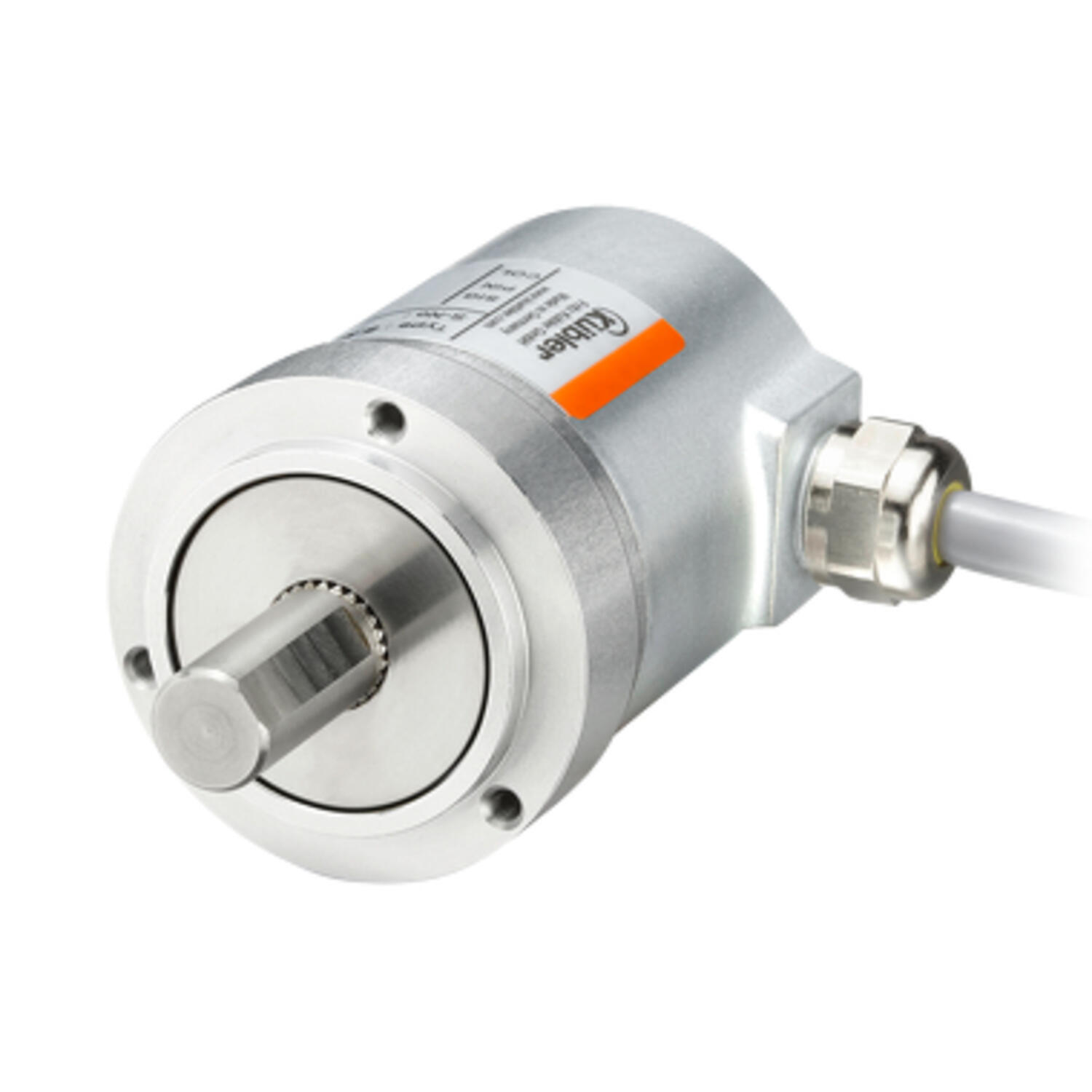

M3658AR J2939.png
KÜBLER

Sendix M3658AR singleturn SAE J1939 encoder

  • Dimension Ø 36 mm
  • Working temperature -40°C to +85°C
  • Protection level IP66, IP67, IP69k
  • Resolution maximum 14 bits ST
Product has 1 parts.
More information More information
KÜBLER

Sendix M3653AR singleturn encoder

  • Dimension Ø 36 mm
  • Working temperature -40°C to +85°C
  • Protection level IP66, IP67, IP69k
  • Resolution maximum 14 bits ST
Product has 1 parts.
More information More information
KÜBLER

Sendix M3651AR singleturn encoder

  • Dimensions Ø 36 mm
  • Working temperature -40°C to +85°C
  • Protection level IP66, IP67, IP69k
  • Resolution maximum 12 bits ST
Product has 1 parts.
More information More information
M5858A iolink.png
KÜBLER

Sendix series M5858A IO-Link encoder

  • Dimension Ø 58 mm
  • Working temperature -40°C to +85°C
  • Protection level IP65
  • Resolution maximum 14 bit ST
Product has 1 parts.
More information More information
M5858A saej1939.png
KÜBLER

Sendix series M5858A SAE J1939 encoder

  • Dimension Ø 58 mm
  • Working temperature -40°C to +85°C
  • Protection level IP65
  • Resolution maximum 14 bit ST
Product has 1 parts.
More information More information

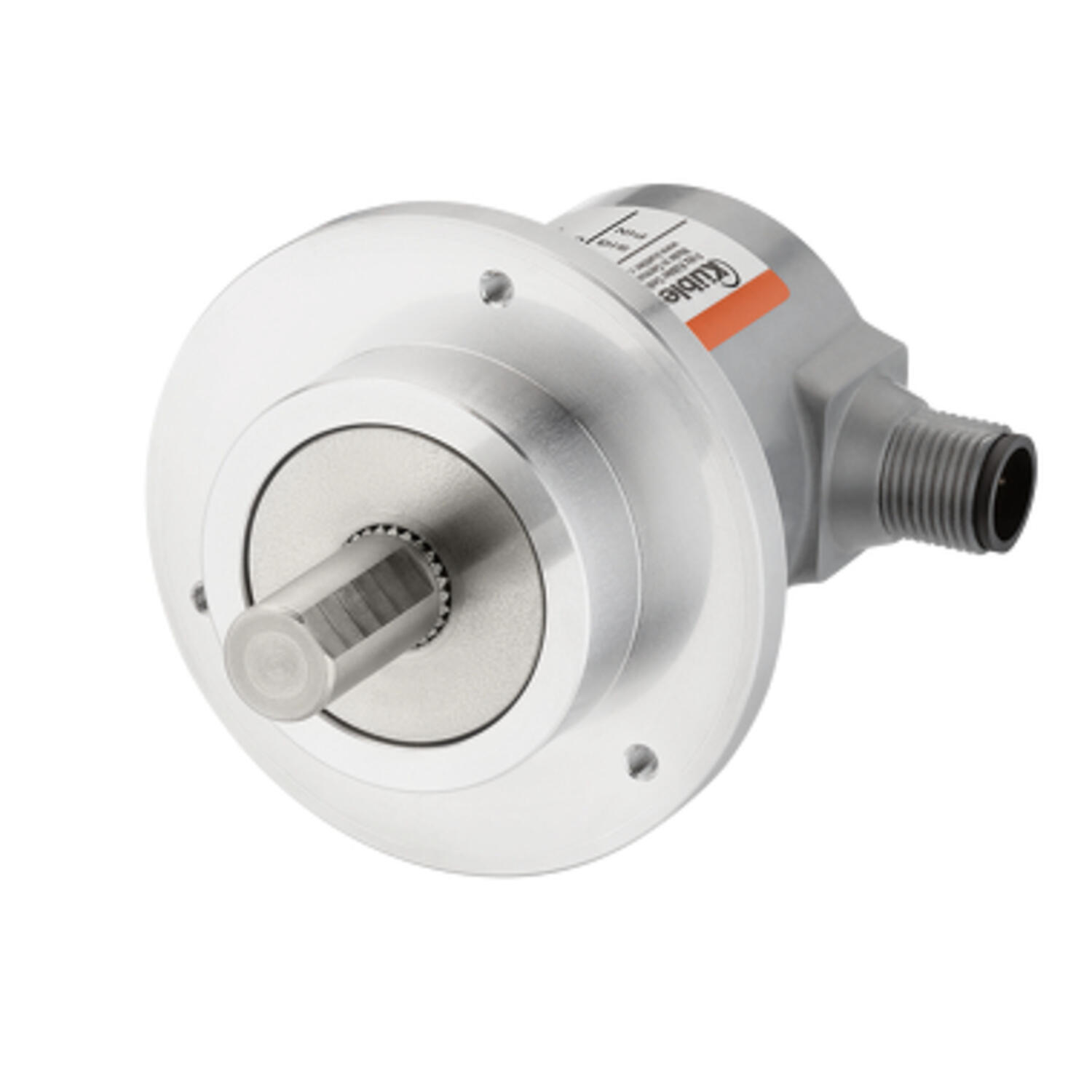

M5858A canopen.png
KÜBLER

Sendix series M5858A CANopen encoder

  • Dimension Ø 58 mm
  • Working temperature -40°C to 85°C
  • Protection level IP65
  • Resolution maximum 14 bit ST
Product has 1 parts.
More information More information
KÜBLER

Sendix series M5853A encoder

  • Dimension Ø 58 mm
  • Working temperature -40°C to +85°C
  • Protection level IP65
  • Resolution maximum 14 bit ST
Product has 1 parts.
More information More information
KÜBLER

Sendix series M5851A encoder

  • Dimension Ø 58 mm
  • Working temperature -40°C to +85°C
  • Protection level IP65
  • Resolution maximum 12 bit ST
Product has 1 parts.
More information More information
KÜBLER

Kuebler Sendix F58 PROFINET IO single turn encoders

  • Dimension Ø 58 mm
  • Working temperature -40°C to +80°C
  • Protection level IP65
  • Resolution maximum 19 bit ST
Product has 2 parts.
More information More information
KÜBLER

Sendix series M3673A encoder

  • Dimension Ø 36 mm
  • Working temperature -40°C to +85°C
  • Protection level IP65 and IP67
  • Resolution maximum 14 bit ST
Product has 1 parts.
More information More information
KÜBLER

Sendix series M3653A encoder

  • Dimension Ø 36 mm
  • Working temperature -40°C to +85°C
  • Protection level IP65 and IP67
  • Resolution maximum 14 bits ST
Product has 1 parts.
More information More information
KÜBLER

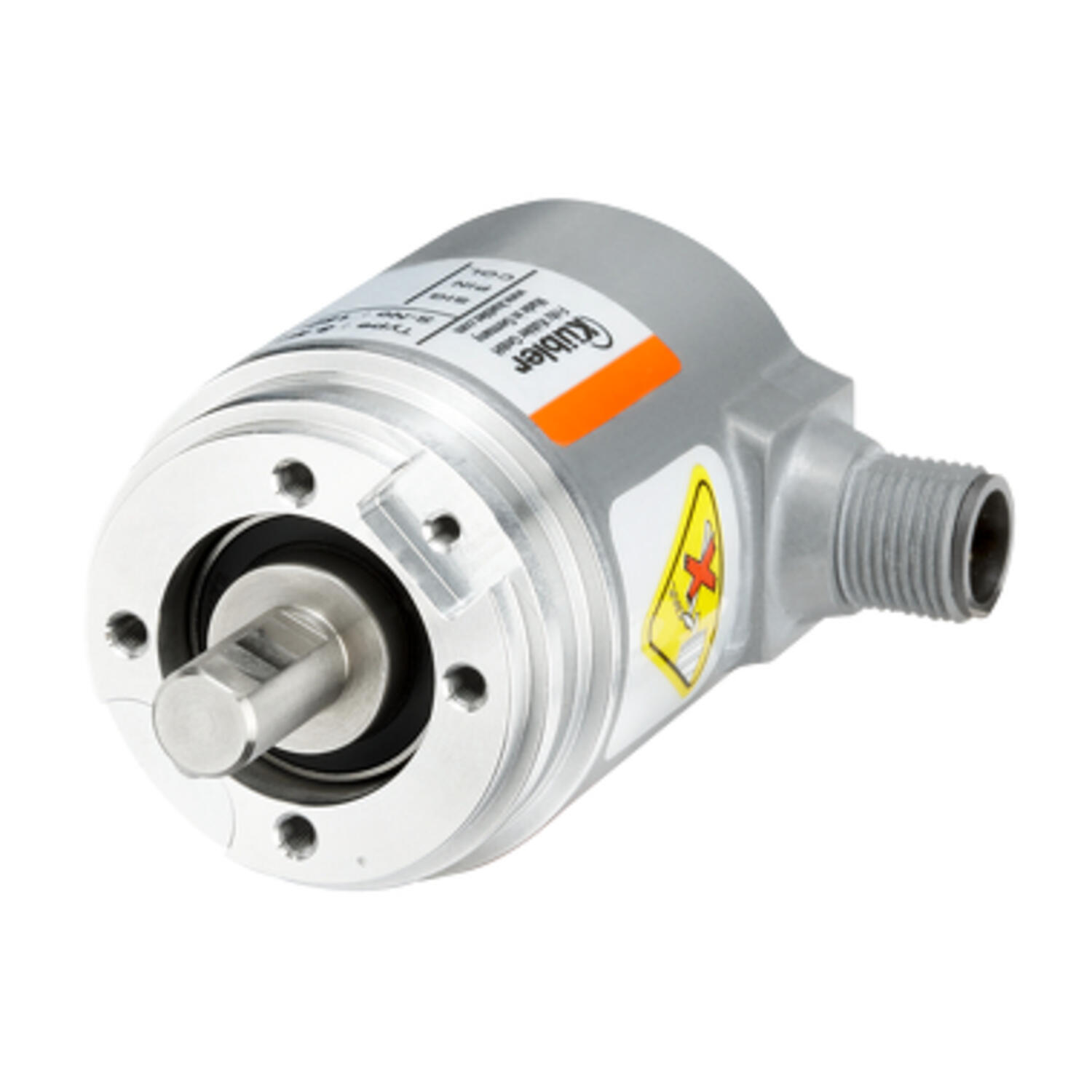

Sendix series M3651A encoder

  • Dimension Ø 36 mm
  • Working temperature -40°C to +85°C
  • Protection level IP65 and IP67
  • Resolution maximum 12 bit ST
Product has 1 parts.
More information More information
KÜBLER

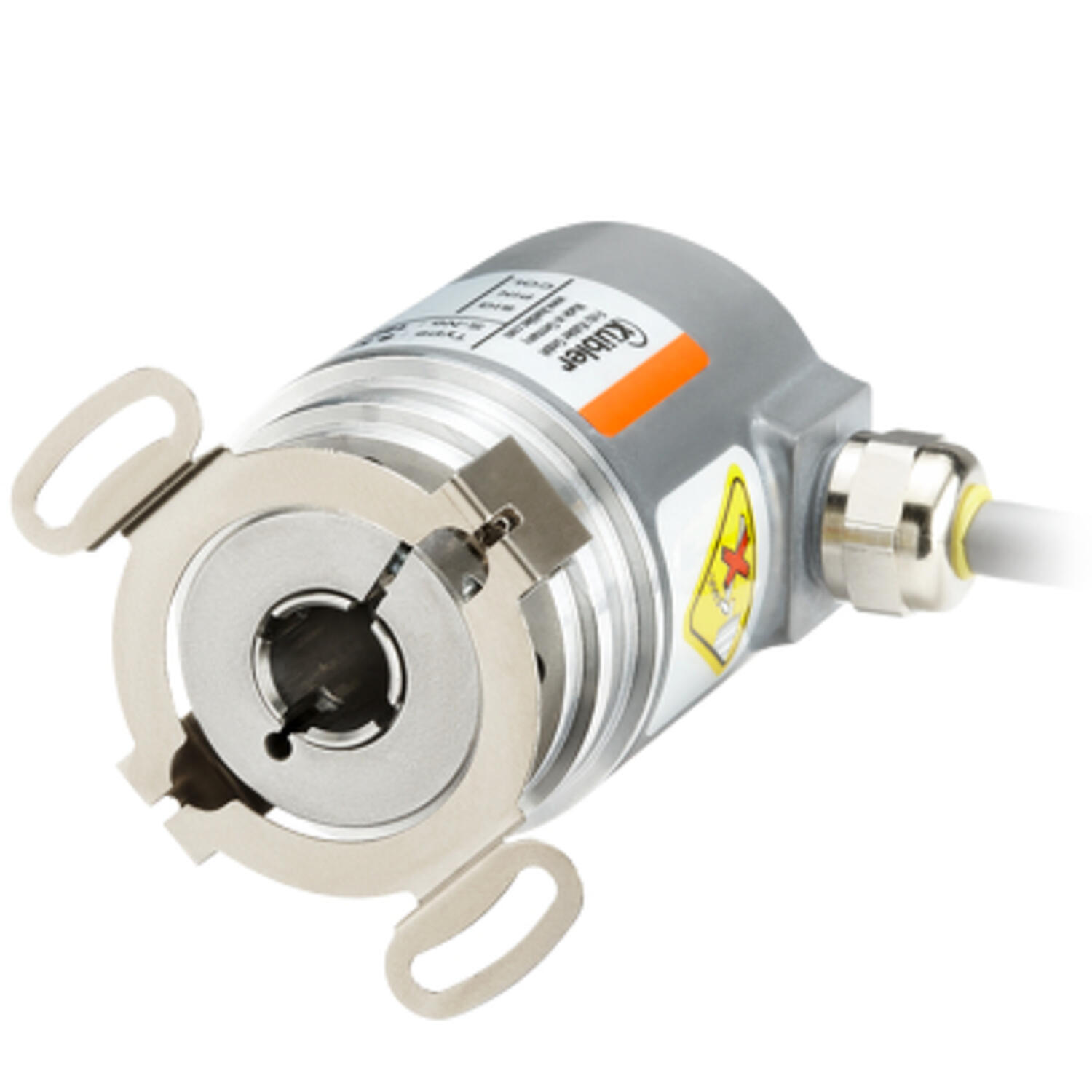

Sendix series M3671A encoder

  • Dimension Ø 36 mm
  • Working temperature -40°C to +85°C
  • Protection level IP65 and IP67
  • Resolution maximum 12 bit ST
Product has 1 parts.
More information More information
