Back Lights




Back Lighting provides an area of uniform illumination which when oriented behind the object of interest it can be used to create a part silhouette of instant contrast between dark and light. It is most useful for edge detection, part location/orientation or presence/absence, hole detection and object gauging. Linear back lights can also be deployed behind a moving web of material when used in conjunction with line scan cameras, when intensities are enough to freeze motion.


\"\"
12 products with 1035 variants
Basler back lights 2 sizes
BASLER

120x120mm, 60x60mm

  • Integrated controller for perfect sychronisation
  • Blue, red or white LEDs
  • 120 x 120mm or 60 x 60mm light emitting surface
  • Easy access to strobing and over drive functions
Product has 6 parts.
More information More information
EFFILUX

EFFILUX EFFI-BL Up to 250mm width

Homogeneous Backlight

  • Large, powerful and homogeneous LED backlight
  • Hundreds of size options
  • Built in driver
  • Industrial design
Product has 425 parts.
More information More information
EFFILUX

Effilux EFFI-BL 300mm up to 1000mm width

Homogeneous Backlight

  • Large, powerful and homogeneous LED backlight
  • Hundreds of size options
  • Built in driver
  • Industrial design
Product has 459 parts.
More information More information
ADVANCED ILLUMINATION

Expandable Series LED Backlight

  • Extremely consistent light over the entire active area of illumination
  • Available in 1” x 1” increments; Sizes from 1” x 1” up to 46” x 46”
  • Range of connector/control options
  • Low profile design
Product has 21 parts.
More information More information
photo BL040401-660
ADVANCED ILLUMINATION

Expandable Series LED Backlight

  • Extremely consistent light over the entire active area of illumination
  • Available in 1” x 1” increments; Sizes from 1” x 1” up to 46” x 46”
  • Range of connector/control options
  • Low profile design
Product has 23 parts.
More information More information
Advanced Illumination back light
ADVANCED ILLUMINATION

Expandable Series LED Backlight

  • Extremely consistent light over the entire active area of illumination
  • Available in 1” increments; Sizes from 1” x 1” up to 46” x 46”
  • Range of connector/control options
  • Low profile design
Product has 24 parts.
More information More information
ADVANCED ILLUMINATION

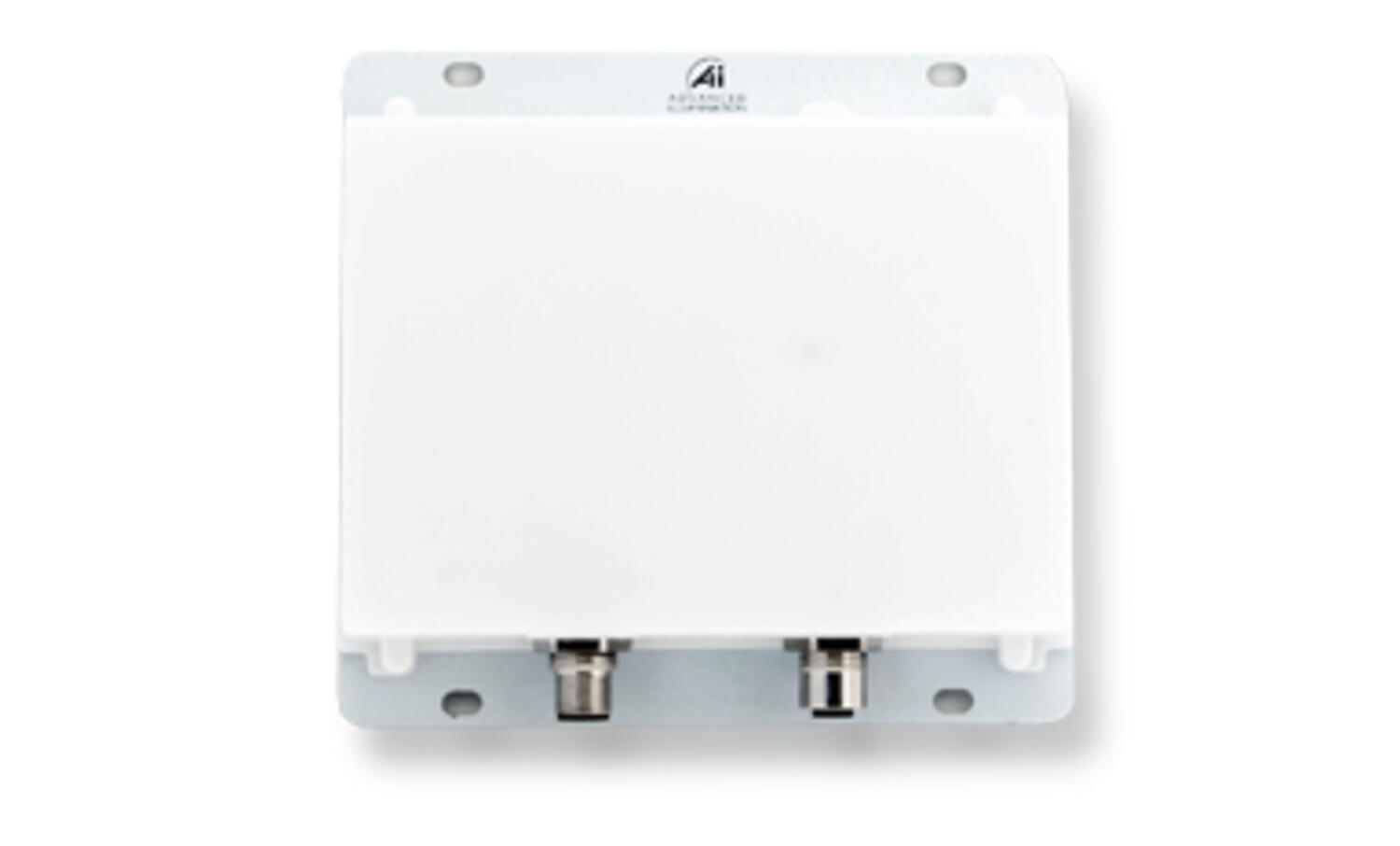

EuroBrite Strobe /Continuous Backlight

  • Cost-effective, feature-rich design
  • On-board smart driver - seamless strobe or continuous
  • Robust, sealed IP67 enclosure
  • Easy M12X1 connection
Product has 7 parts.
More information More information
ADVANCED ILLUMINATION

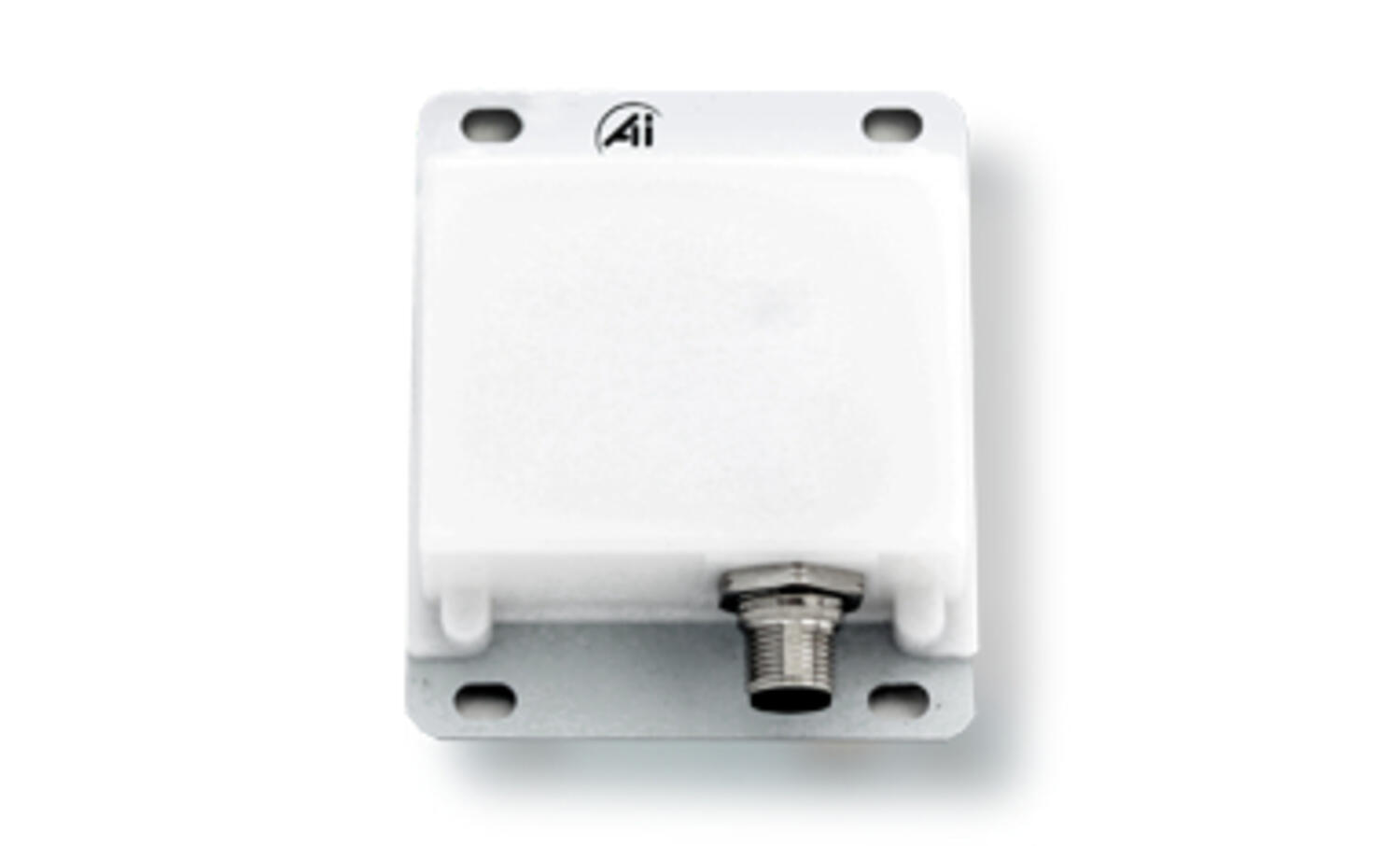

Strobe/Continuous Backlight

  • Doubel the size of the BL-S050075
  • Cost-effective, feature-rich design
  • On-board smart driver - seamless strobe or continuous
  • IP67 enclosure
Product has 6 parts.
More information More information
ADVANCED ILLUMINATION

Back Lit Low Profile Backlights

  • Edge to edge back lighting in a 12mm (.48”) thick housing
  • 2” wide, expandable in 1” increments; Lengths from 1” - 14”
  • Optional washdown version offers IP65 compliant design
Product has 16 parts.
More information More information

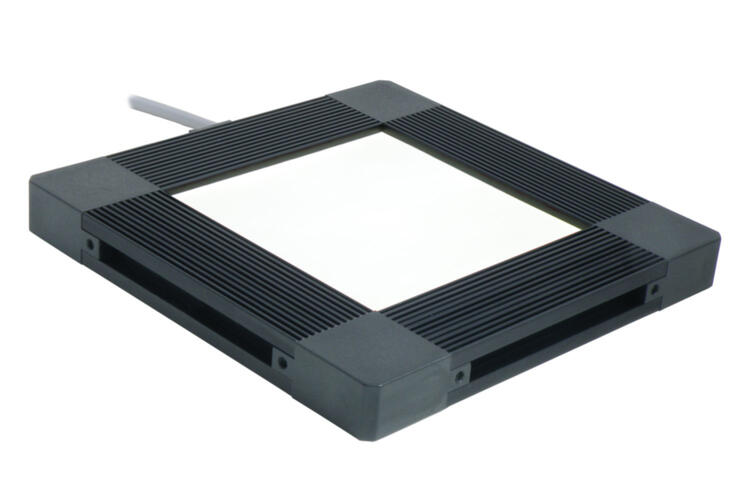

CX0404.tif
ADVANCED ILLUMINATION

Expandable Side Lit Collimated

  • 30% brighter than same size surface mount light
  • Uniform illumination and low heat output
  • Available in 1” x 1” increments up to 16” x 16”.
Product has 13 parts.
More information More information
ADVANCED ILLUMINATION

Advanced Illumination BL 138 Series Back Lights

Expandable High Power Linear Backlights

  • 510,000 lux - perfect for line-scanning applications
  • Available 6” (152.4mm) increments from 6” (152.4mm) to 96” (2438.4mm) with the exception of a 3” (76.2mm)model
  • Intensity control of entire light via 0 - 10v input
Product has 20 parts.
More information More information
ADVANCED ILLUMINATION

Advanced Illumination BL 193 Series Back Lights

Expandable Low Power Linear Backlights

  • Extremely consistent light over the entire active area of illumination
  • 25mm (1”) wide illuminated strip in a 33.8mm (1.3”) wide housing
  • Available in 1” increments; Lengths from 1” to 80”
Product has 15 parts.
More information More information
