Doga
Based in Barcelona and founded in 1958, DOGA manufacture a range of motor and gear solutions used in wide range of applications in industrial automation.
DOGA motors prove popular as they have a high-power output and are very cost effectively in the right application, with a wide range of sizes are available to match application requirements. Most motors are a wiper-type configuration with a right-angle gearbox.
Key Product Areas:
- Worm gear wiper motors with right angle drive
- Wiper motors with hall sensors for positional feedback
- Brushed DC Motors without gearbox in 60 to 95mm diameter
Typical Applications:
- Agricultural machinery
- Mobility products
- Care aid
- Vehicle adaptations
- Access control
- Special purpose machinery
- Factory automation
Examples of products
DC Motors
Dc Motors with Right angle Gearbox
DC wiper motor with integrated drive
DOGA Product Catalogue:
DOGA Company Video:
DOGA company video - If you're seeing this message the video cannot be shown. To see the video accept cookies. Your cookie settings can be changed on https://www.oem.co.uk/contact-us/contact
Product Ranges
DC Motors
The DOGA DC motors are designed for efficient and reliable performance in a variety of industrial applications. These motors are known for their durability, smooth operation, and versatility, making them suitable for use in robotics, conveyors, and other machinery requiring precise control.

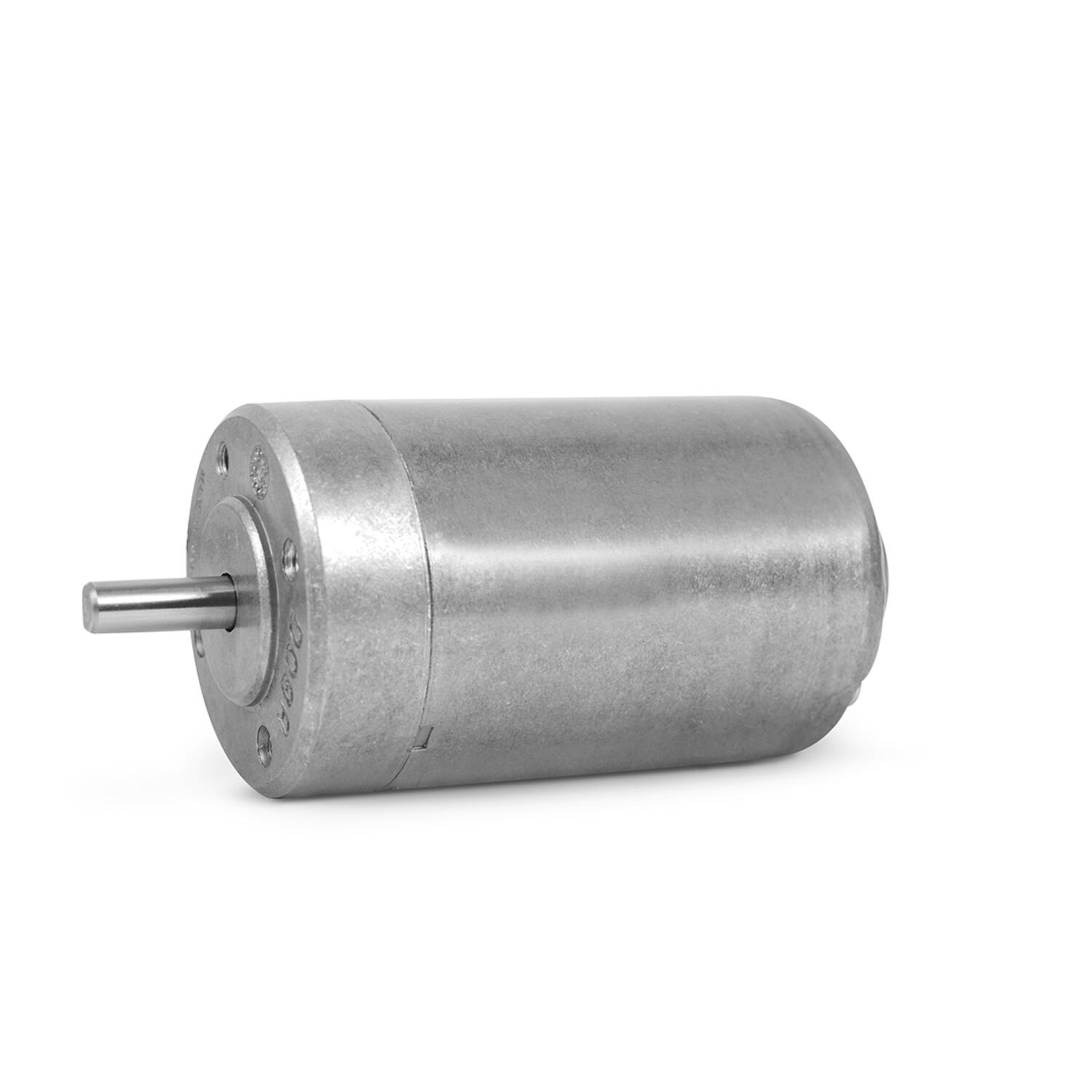

DOGA - 162 Series
DC motor only, planetary option
- 12-24Vdc
- Up to 0.2Nm
- Up to 3000rpm
- 60mm diameter
- High starting torque

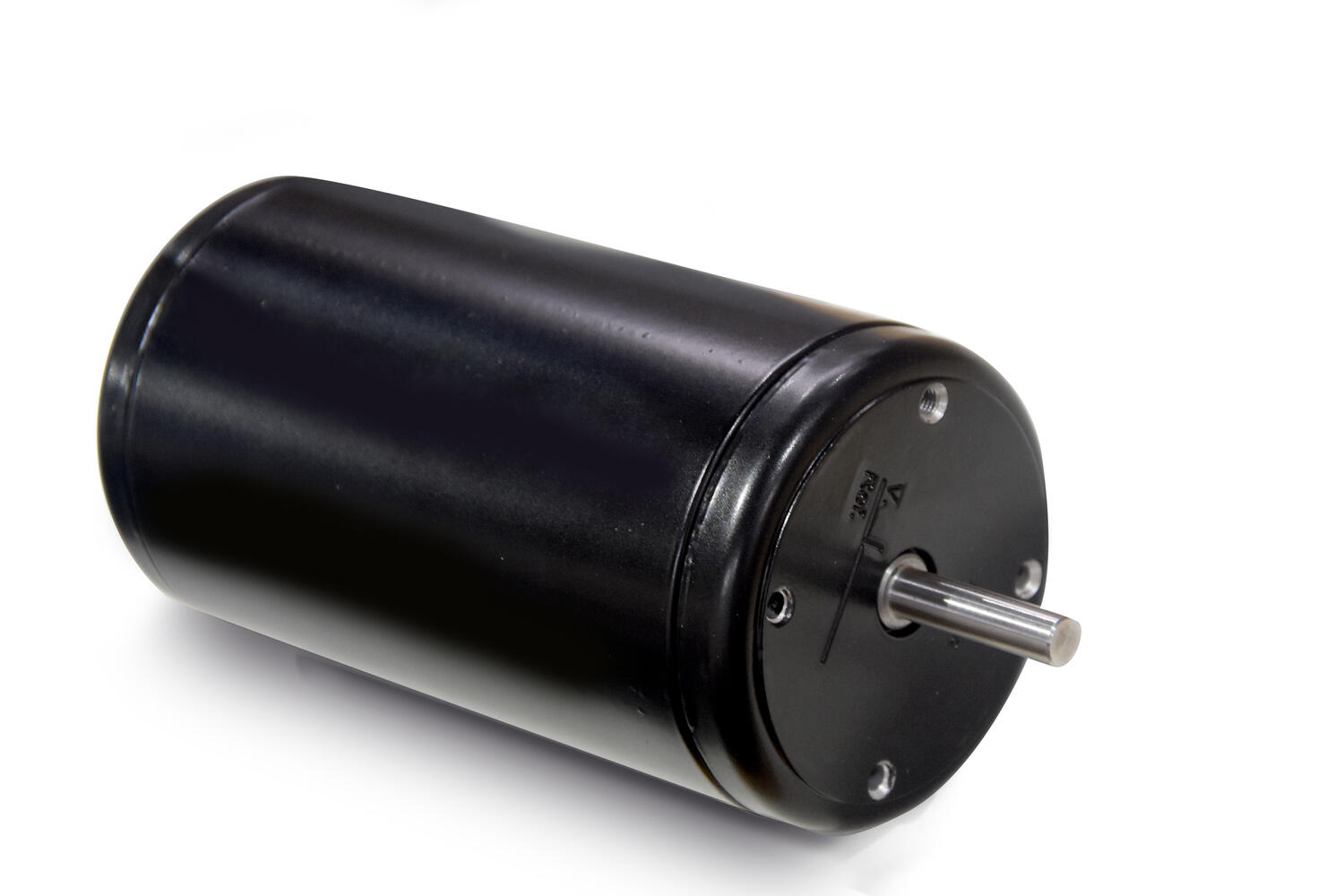

DOGA - 168 Series
DC motor only, planetary option
- 12-24Vdc
- Up to 0.75 Nm
- Up to 3000 rpm
- 79mm diameter
- High starting torque
DOGA - 169 Series
DC motor only, planetary option
- 12-24Vdc
- Up to 0.4Nm
- Up to 4600rpm
- 79mm diameter
- High starting torque

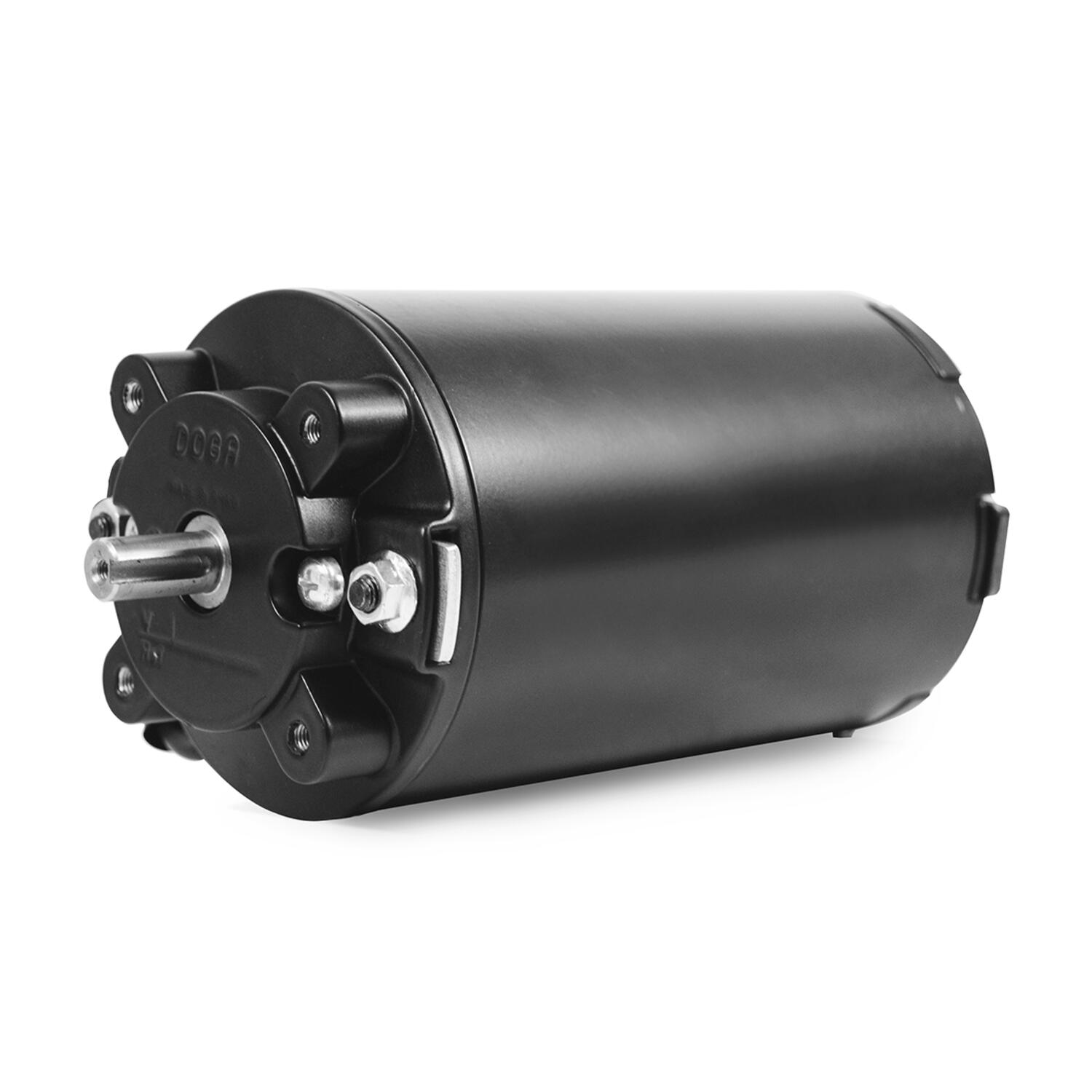

DOGA - 269 Series
DC motor only, planetary option
- 12-24Vdc
- Up to 0.8 Nm
- Up to 3000rpm
- 95mm diameter
- High starting torque
DC Motors With Right Angle Gearbox
DOGA DC motors with a right-angle gearbox, providing efficient performance in compact, space-saving designs. These motors are ideal for applications requiring smooth operation and high torque, such as conveyors, robotics, and other machinery.

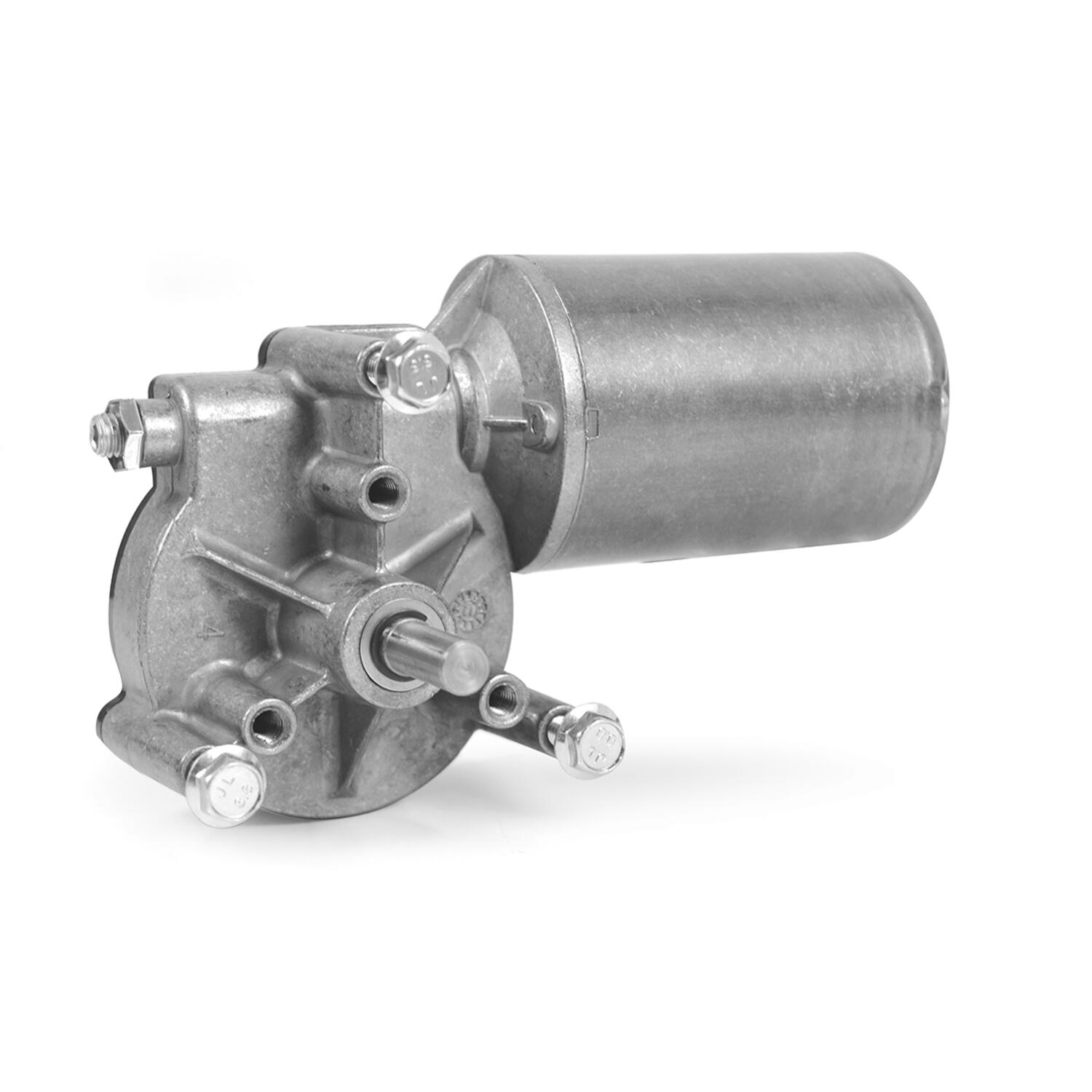

DOGA 111 - DC wiper motor
Right angle worm gearbox, IP53
- 12 - 24Vdc
- Up to 6Nm
- Up to 240rpm
- Compact low noise design
- High starting torque
DOGA 258 - DC wiper motor
Right angle worm gearbox, IP53
- 12 - 24Vdc
- Up to 15Nm
- Up to 40rpm
- Compact low noise design
- High starting torque

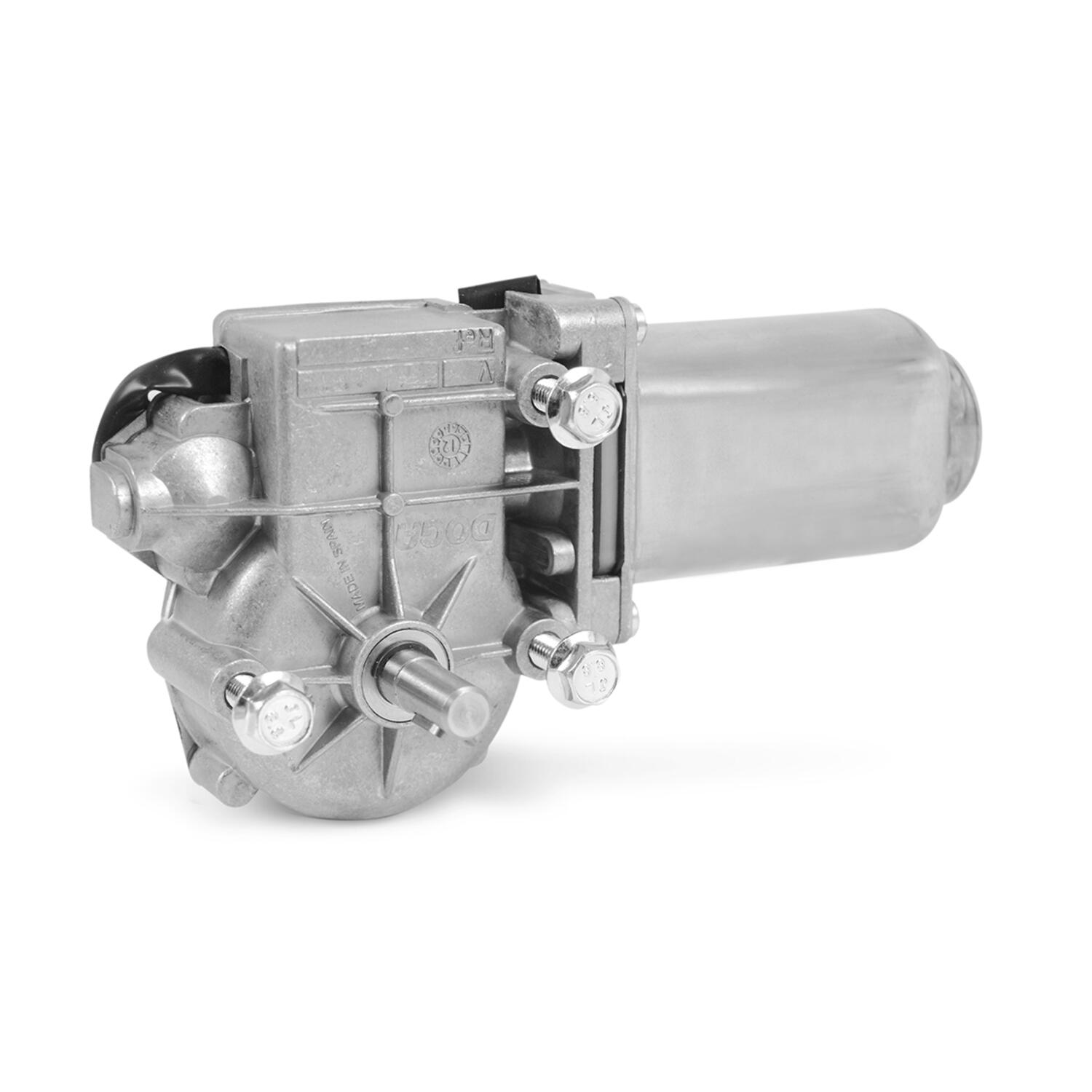

DOGA 316 - DC wiper motor
Right angle worm gearbox
- 12 - 24Vdc
- Up to 2Nm
- Up to 65rpm
- Compact low noise design
- High starting torque

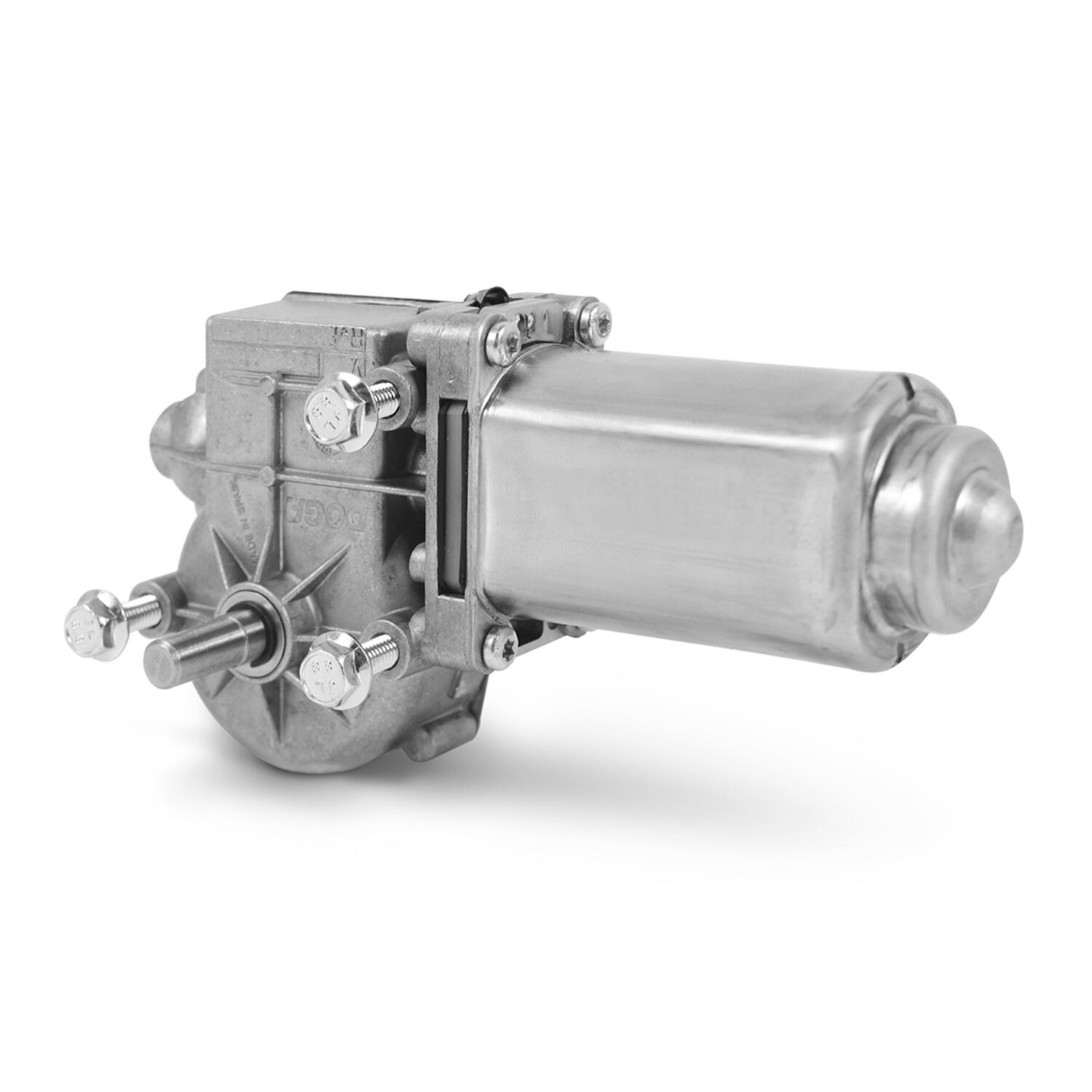

DOGA 316H - DC wiper motor with feedback
Right angle worm gearbox, hall sensors
- 12 - 24Vdc with positional feedback
- Up to 2Nm
- Up to 65rpm
- Compact low noise design
- High starting torque

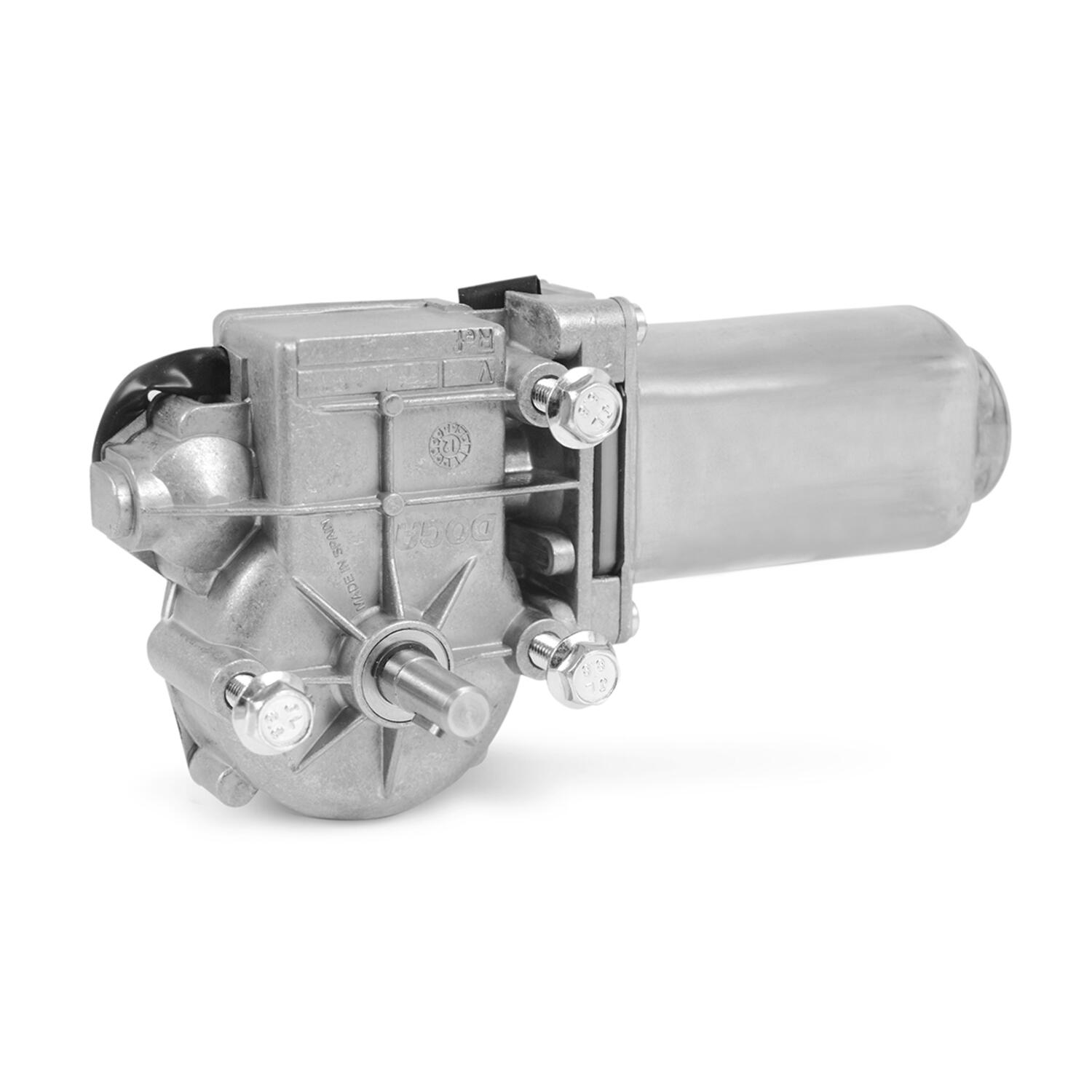

DOGA 317 - DC wiper motor
Right angle worm gearbox
- 12 - 24Vdc
- Up to 4Nm
- Up to 65rpm
- Compact low noise design
- High starting torque

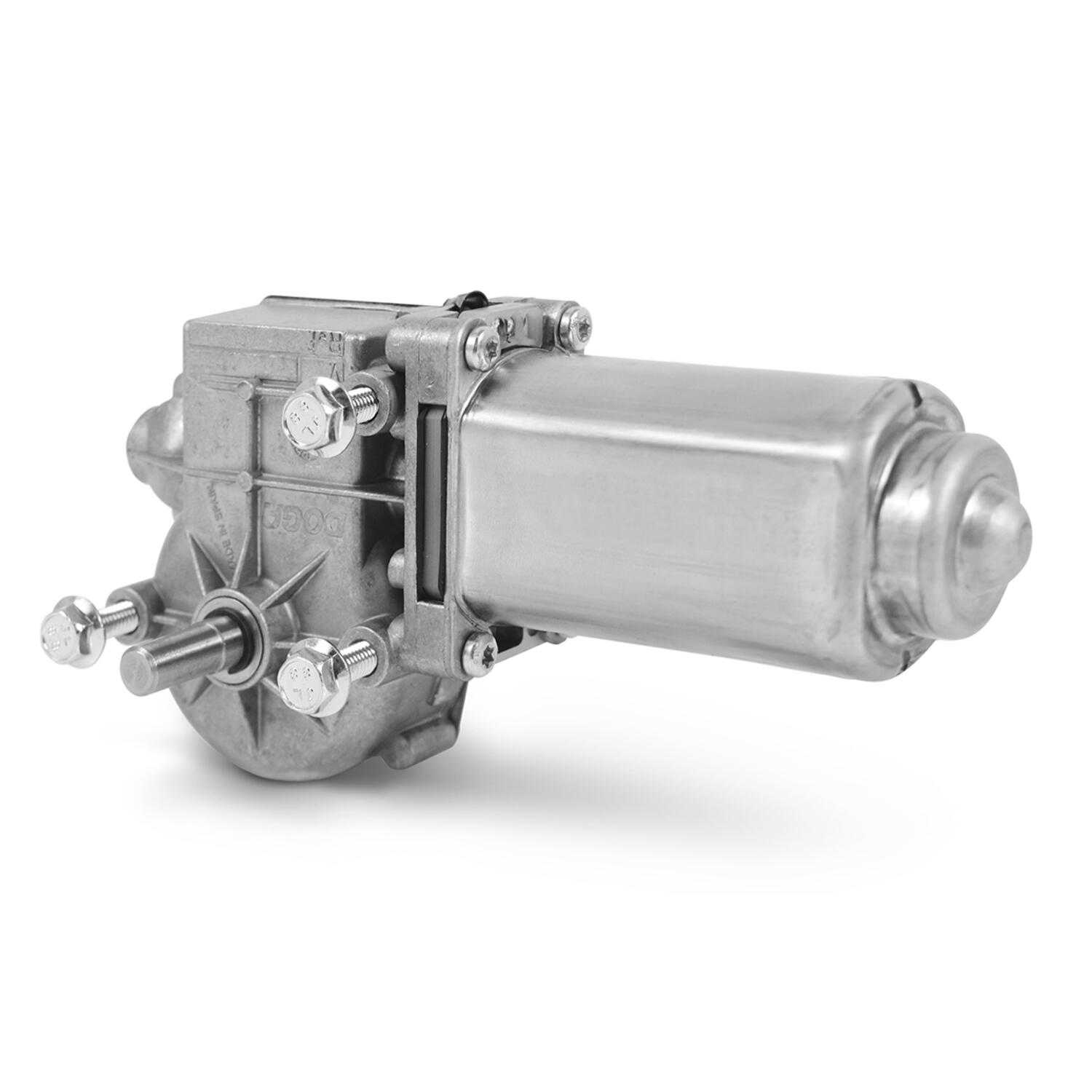

DOGA 317H - DC wiper motor with feedback
Right angle worm gearbox, hall sensors
- 12 - 24Vdc with positional feedback
- Up to 4Nm
- Up to 25rpm
- Compact low noise design
- High starting torque
DOGA 319 - DC wiper motor
Right angle worm gearbox, IP65
- 12 - 24Vdc
- Up to 9Nm
- Up to 230rpm
- Compact low noise design
- High starting torque
DOGA 319H - DC wiper motor with feedback
Right angle worm gearbox, hall sensors, IP65 option
- 12 - 24Vdc with positional feedback
- Up to 9Nm
- Up to 100rpm
- Compact low noise design
- High starting torque

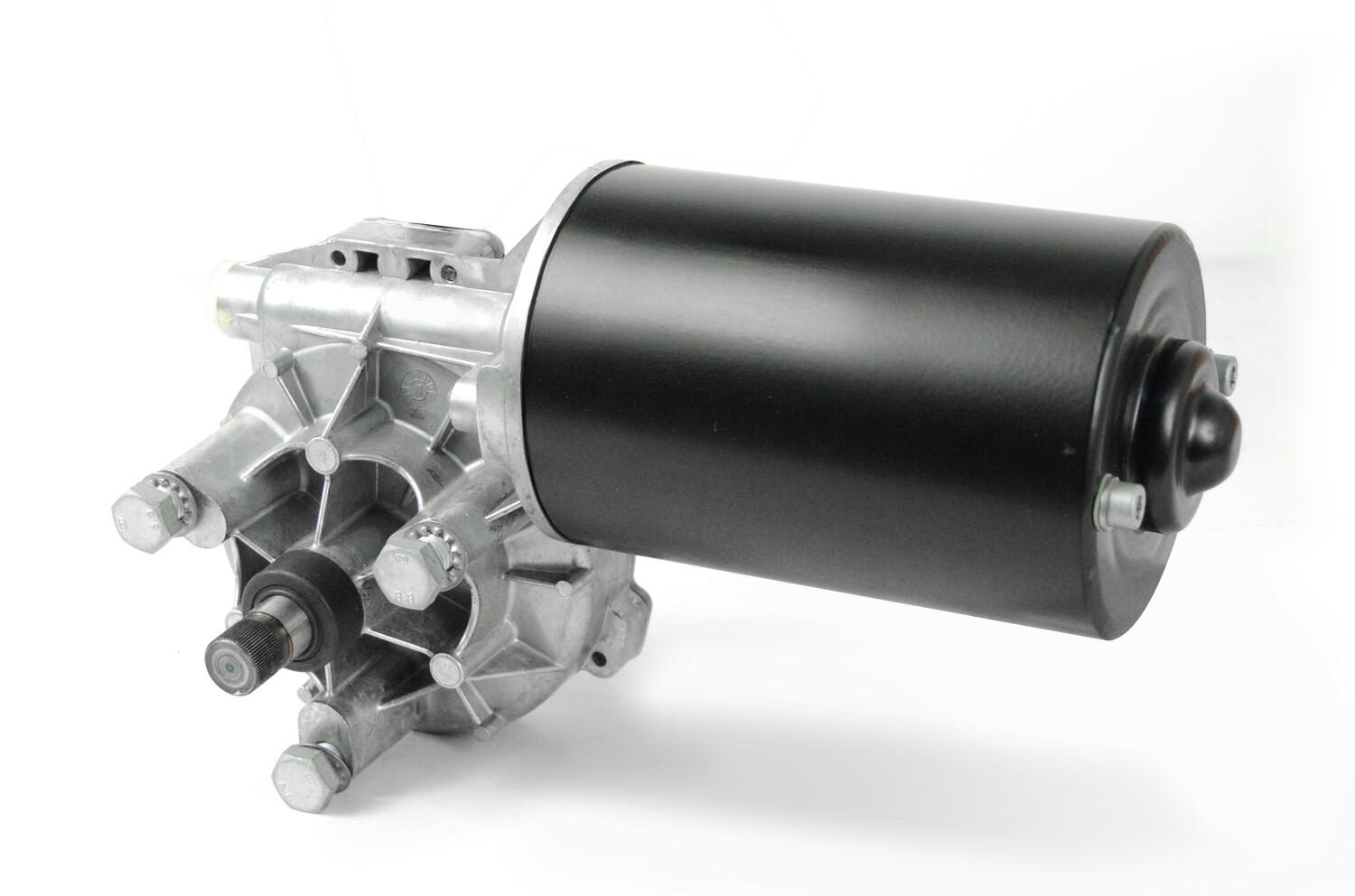

DOGA 359 - DC wiper motor
Right angle worm gearbox, IP66
- 12 -24Vdc
- Up to 25Nm (high output)
- Up to 40rpm
- Compact low noise design
- IP66 as standard
DOGA 311 - DC wiper motor
Right angle worm gearbox, IP69K
- 12-24Vdc
- Up to 7Nm
- Up to 70rpm
- Extra-compact low noise design
- IP69K as standard
DC Wiper Motor with Integrated Drive
DOGA DC wiper motor with an integrated drive, designed for reliable and efficient operation in automotive and industrial applications. This motor features compact integration, reducing the need for external components, and ensures smooth and consistent performance in wiper systems and other applications requiring precise motion control.
