Manufacturers
Teknomega
Founded in 2004, Teknomega operates in over 60 countries and has established itself as a leading provider of innovative solutions for the electrical and industrial sectors. Initially started by a group of experienced professionals in the panel building and electrical industries, Teknomega has grown to offer a wide range of products tailored for the evolving needs of global markets. The company is known for its commitment to reliability, sustainability, and innovative engineering solutions, with a presence across a wide array of industries, including electrical power solutions, industrial fastening, and photovoltaic panel installation.
Teknomega manufactures a variety of high-quality electrical components, including busbars, support insulators, power distribution blocks, and fastening solutions. Their products meet the latest electrical standards, ensuring optimal performance in low voltage panel boards. Teknomega’s range of products is designed for efficient insulation, support, and power distribution, ensuring safety and reliability in demanding environments. They offer customisable solutions and offer a wide range of insulators and power distribution blocks, which are engineered to handle high electrical loads, with features like high induction tolerance, fast switching, and low leakage currents. Teknomega's expertise in providing robust, reliable, and innovative solutions makes it a trusted partner for companies seeking high-quality industrial electrical components.
OEM Automatic is an authorised distributor of Teknomega’s products.
Examples of products
Teknomega Company Video:
Teknomega company video - If you're seeing this message the video cannot be shown. To see the video accept cookies. Your cookie settings can be changed on https://www.oem.co.uk/contact-us/contact
Product Ranges
Support Insulators and Columns
Teknomega’s support insulators and columns are engineered to provide reliable electrical insulation and mechanical support in industrial environments. These products are designed to ensure stable mounting for electrical components, such as busbars and circuit breakers, and are made from high-quality insulating materials that guarantee excellent electrical performance. Teknomega’s insulators feature high dielectric strength, providing robust protection against electrical faults, while their columns offer strong, durable support for a range of applications. These components are designed for ease of installation and long-lasting performance in demanding environments, ensuring both safety and efficiency in power distribution systems.
COMPRHEX - Spacing Columns
- Red spacing columns in polyester
- Polyester reinforced with fiberglass
- Molded by compression
- Rated voltage 1000 V ac/1500 V dc
- Working temperature -40 to 130°C
ISO - Insulators
- Black insulators in polyamide
- Polyamide reinforced with fiberglass
- Molded by injection
- Rated voltage 1000 V ac/1500 V dc
- Working temperature -40 to 130°C
ISO - Spacing Columns
- Black spacing columns in polyamide
- Polymide reinforced with fiberglass
- Molded by injection
- Rated voltage 1000 V ac/1500 V dc
- Working temperature -40 to 130°C
COMPRHEX - Insulators
- Red insulators in polyester
- Polyester reinforced with fiberglass
- Molded by compression
- Rated voltage 1000 V ac/1500 V dc
- Working temperature -40 to 130°C
Busbar
Teknomega’s busbar products are engineered for efficient power distribution with excellent conductivity and high performance in industrial applications. These busbars are made from high-quality materials to ensure low electrical resistance and optimal power transfer. They are designed for use in control panels, power supply systems, and other electrical installations, providing a reliable and compact solution for high-current connections. Teknomega busbars are available in various configurations, including copper and aluminium options, and are customisable to meet specific voltage and current requirements. Their robust design ensures durability and compliance with industry standards for safety and reliability in demanding environments.
Flexible COPPER BRAIDS
J-LINK, J-LINK PLUS
- Cross-section: 25 mm² to 240 mm²
- Lengths from 230 mm to 1030 mm
- 125 A to 630A
- Thickness: 2 mm
Busbar Accessories
- High current and flat clamps
- Din rail fixings
- Twisting/bending tool
- Pressure plates
- Drilling jig

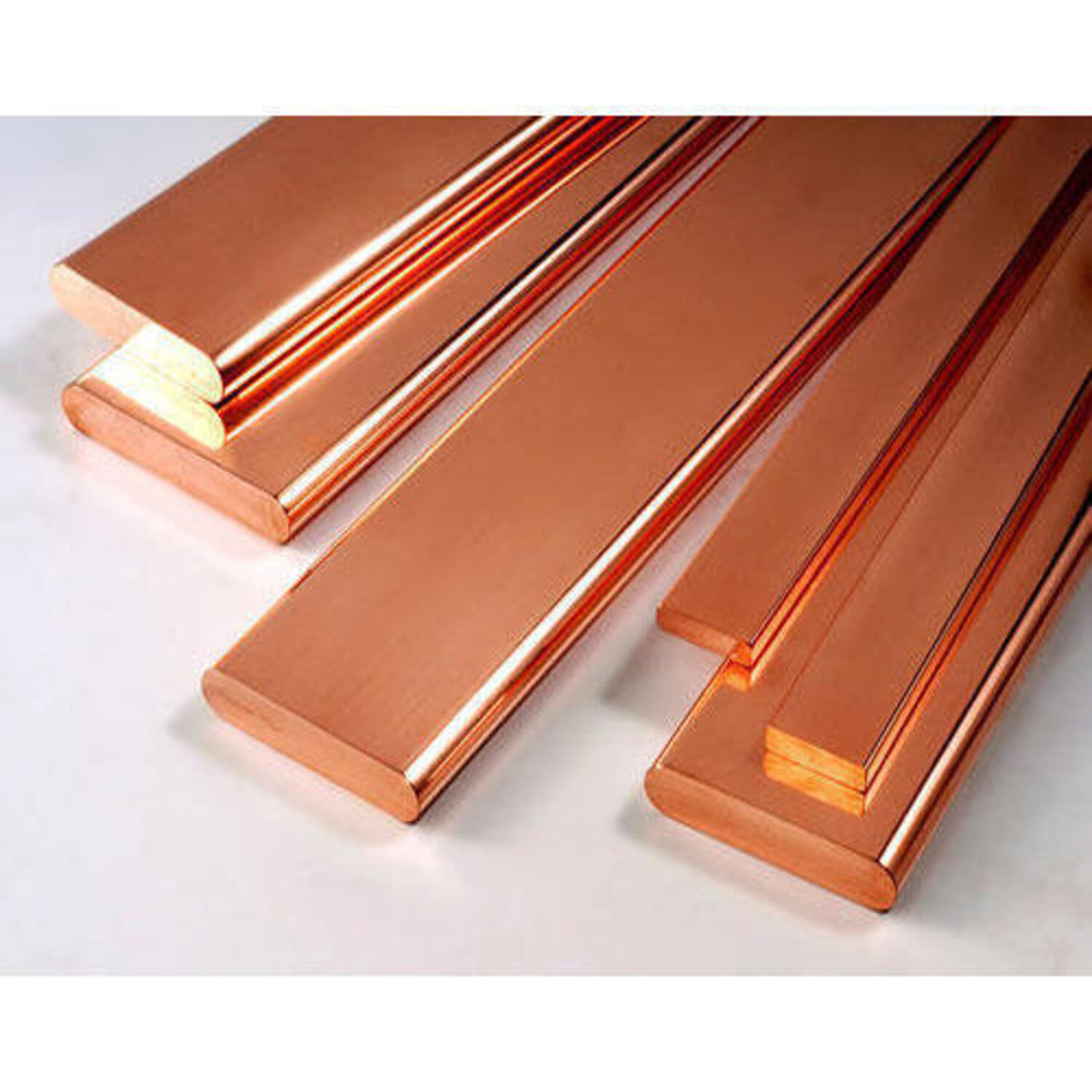

SOLID COPPER BUSBARS
PRP
- Thickness of 5 mm and 10 mm
- Length 1750 and 4200 mm
- Electrolytic Copper Cu-ETP 99.90%,
THREADED COPPER BARS
BRF
- Thickness 2 - 3 - 4 - 5 - 10 mm
- Length 1000 and 2000 mm.
- M5 - M8 available
PREPUNCHED COPPER BARS
BRP
- Length : 1750 mm
- Thickness : 5 mm and 10 mm
- Drilled with 10,5 mm diameter at 25 mm distance
SOLID ALUMINIUM BARS
BAP
- Thickness 10 mm.
- Length 2000 and 4000 mm
- Significant cost saving
- Weight saving up to 70%
Power Distribution Blocks
Teknomega's power distribution blocks offer robust solutions for organising and distributing power in electrical systems. These blocks are designed for high-current applications, ensuring secure and efficient power routing. Made with durable materials, they support reliable connections with features like multiple terminals for easy integration and compact designs for space efficiency. Teknomega’s power distribution blocks are engineered to handle various electrical loads, making them suitable for industrial control panels, automation systems, and heavy-duty environments. Their reliable performance ensures consistent power distribution, contributing to enhanced system stability and reduced maintenance.
Brass Earth distribution terminals
MRS
- Screws in galvanized steel.
- High conductivity brass
- Complete with fixings
- Earthing Bars
Compact Distribution blocks
RPU, RPT
- Separate inputs
- Easy wiring
- Galvanised steel screws included
- Quick hook up on DIN rails
- UL Listed 302208
2-4 POLE DISTRIBUTION BLOCKS
RPB & RPQ
- 40 A to 160 A.
- Self-extinguishing insulating structure UL 94-V0
- Insulation between phases
- Brass conductors
4 POLE DISTRIBUTION BLOCKS
RPQ
- 40 A to 160 A
- Brass conductors
- Self-extinguishing insulating structure UL 94-V0
- Insulation between phases
QUICK DISTRIBUTION BLOCKS
RPU
- Extremely easy wiring
- Output with spring tightening
- Self-extinguishing as per UL 94-V0
Power Terminal Blocks
- Power terminals 125-160-250-400 A
- Self-extinguishing insulating body: PA 6 UL 94-V0
- Openable and removable frontal protection cover
- Compliant with standard EN 60947-7-1
- Direct connections with COFLEX, COFLEX PLUS
