Manufacturers
MOONS'
MOONS’ are a leading motion control manufacturer with multi-national presence, established in 1994 and headquartered in Shanghai, China, they produce well over 10 million motors per year.
Operating companies within the MOONS’ group specialise if different aspects of their products R&D and production, and these are collectively brought together to offer customers one of the most comprehensive ranges of low voltage motor and motion control products available.
MOONS’ offer stepper motors, BLDC motors, servo motors, slotless motors, linear motion products and associated controllers.
OEM Automatic is an authorised distributor of MOONS' motion control products.
Typical Applications:
- Access Control
- Robots – AGV’s / AMR’s
- Scientific and Medical
- Packaging and Printing machinery
- Conveyors and Material handling
- Special purpose machines
- General automation
Examples of products
Moons' Company Video:
Moons company video - If you're seeing this message the video cannot be shown. To see the video accept cookies. Your cookie settings can be changed on https://www.oem.co.uk/contact-us/contact
Product Ranges
Servo Motors
Moons' servo motors are high-performance, precision-driven solutions designed for various industrial applications. They offer excellent torque and speed control for applications requiring accuracy and reliability. These motors are ideal for use in robotics, automation, and other motion control systems, delivering smooth, precise operation. They are engineered with advanced features for energy efficiency and are compatible with various controllers for easy integration into existing systems. Moons’ servo motors are built for durability and offer high power density, ensuring long-lasting, efficient performance in demanding environments.

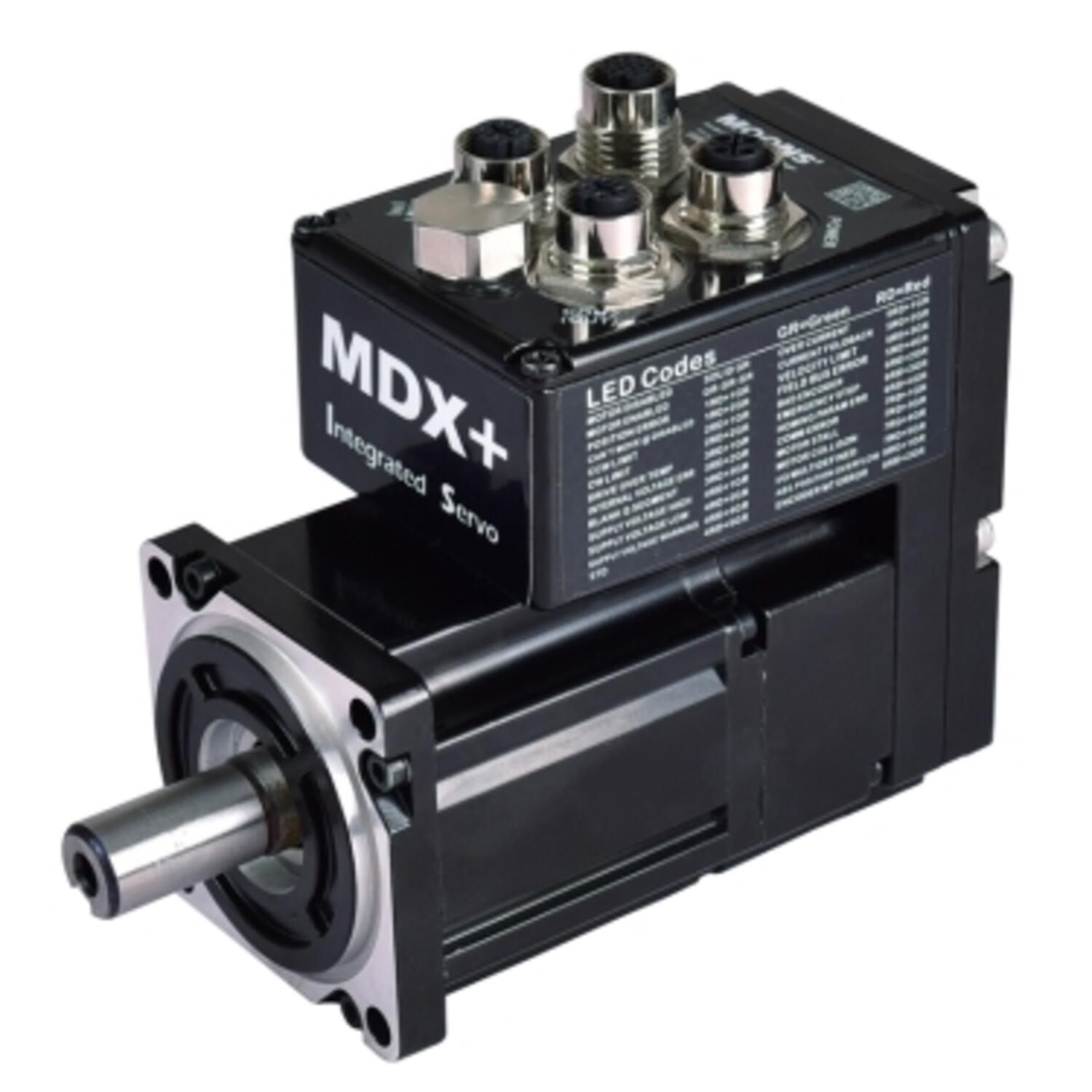

MDX+ Integrated Servo Motor
MDX Plus - Fully integrated feature-rich servo motor system offering pulse, RS485, CANopen and EtherCAT communication modes
- Ultra compact servo motor with integrated motion controller
- Supports CANopen, EtherCAT and RS485 communication
- Torque up to 1.8Nm at 3000rpm
- Easy set up with dedicated software
- Options for brake, STO and IP65 protection

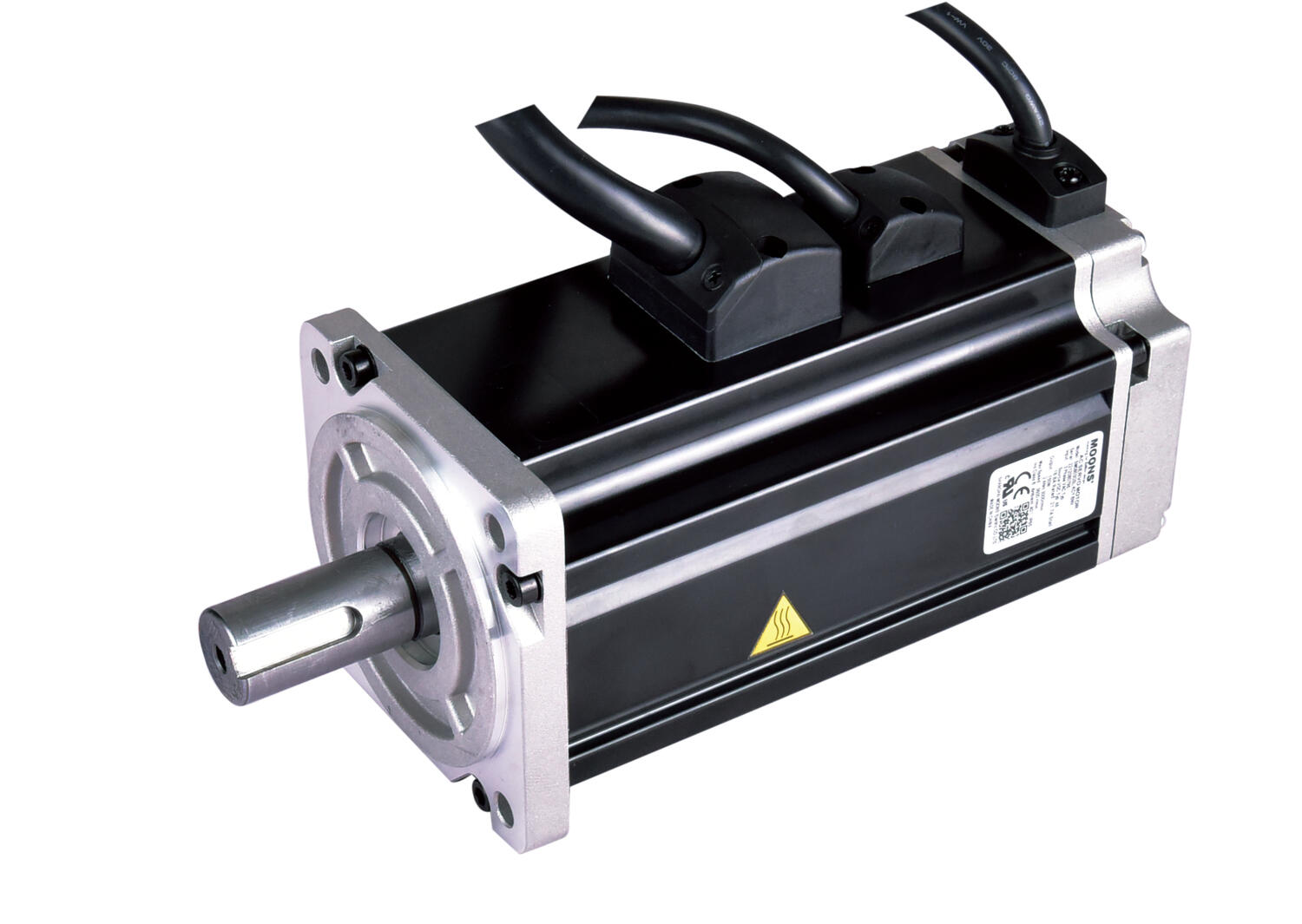

MBDV DC Servo Motor
MBDV series low voltage DC servo motors, frame sizes from 40-130mm, power range from 100-1500W, IP65 rated
- Wide range of frame sizes 40-130mm
- Power outputs from 100-1500W (0.32-4.7Nm)
- Tuneless set up with MBDV controllers and Luna PC software
- Supports CANopen and RS485 comms with wireless AGV option
- IP65 protection with brake and STO options
MSD Driving Wheel
Modular fully integrated drive wheel range specifically developed for mobile robots
- 150-200mm drive wheels with brake option
- 24-60Vdc supply with built in 16-bit encoder - 2500ppr
- Delivers up to 50Nm at wheel at 2.8m/s
- STO (SIL3) function with dynamic and emergency braking
- Compact in size and quiet running with elastic suspension
Jacking, lifting and rotating motors for AGV's
BLDC motor with encoder for jacking and rotating in AGV applications, ideally suited for use with MOONS' MDS drive wheel range and MBDV servo drives
- BLDC motor with 16 bit encoder, options with and without brake
- 60mm (400W) and 80mm (750W) frame size options
- 3000rpm with 1.7Nm and 2.4Nm nominal torque
- Ideally suit for lifting and rotating in AGV applications
- Ideally suited for use with MDS drive wheels and MBDV servo drives

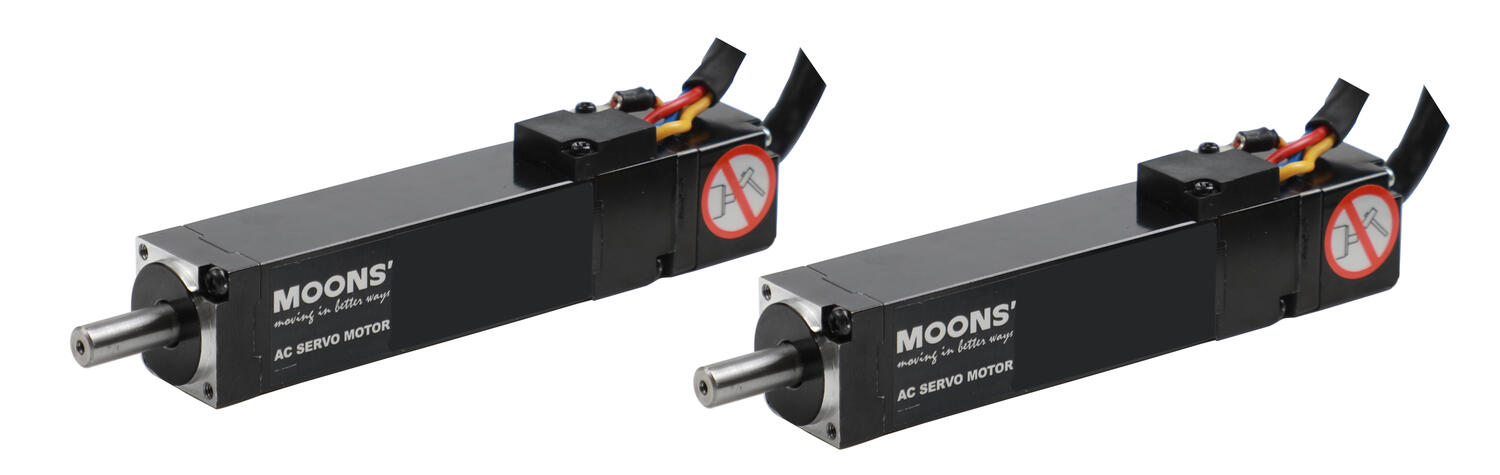

Mini MBDV DC Servo Motors
MBDV miniature series low voltage DC servo motors in 20mm frame size with 30W output, differential and SPI encoder options. CANopen, EtherCAT, RS485 Modbus comms
- Super compact 20mm frame size
- Coreless motor design for maximum power density
- 30W output (3000rpm @ 0.01Nm)
- Tuneless set up with MBDV controllers and Luna PC software
- Supports CANopen, EtherCAT and RS485 communication
MBDV Servo Drive
DC servo drive configured for ease of implemenation in AGV applications. Multi axis with STO functionality
- Single and dual axis AGV specific drive
- 20A/60A peak and 40A/120A peak versions
- CANopen and Modbus RTU communication options
- Easy set up with dedicated Luna softare
- Regenerative and dynamic braking with STO function (SIL2 compliant)
