Magnatrol Valve Corp
Magnatrol valves are used in a wide range of industries:
- chemical
- power
- petrochemical
- pharmaceutical
- water and waste
- metal
- textile
- food
- pulp and paper
- marine.
Magnatrol manufacture high quality 2-way, normally closed and normally open solenoid valves from 3/8” to 3” in bronze and stainless steel.
Magnatrol’s degreasing and black light testing facility also allows adapted valves to be suitable for cryogenic fluids. These include liquid oxygen (-297°F), liquid argon (-303°F) and liquid nitrogen (-320°F).
Other specialities include valves for steam, brine, sandy well water and gritty coolant.
Clark Cooper is Magnatrol’s specialist valve adaption arm. They produce standard and bespoke valves from ¼” to 2”, operating up to pressures of 15,000 psi.
The specialist valve range complies with European ATEX requirements, and those of the emerging hydrogen dispensing markets. The range is also available in oxygen clean versions.
What makes Magnatrol stand out?
Magnatrol offer superior performance, and reliability in application areas where other manufacturers may struggle to comply.
Examples of products
Specialty Valves
Hot Water and Steam Valves
Cryogenic Service
General Service
Product Ranges
Specialty Valves
Magnatol specialty valves are designed to provide reliable solutions for complex fluid control needs. These valves are ideal for various applications that require precise and effective operation, especially in demanding industrial environments. The Magnatol range includes solenoid-operated valves with robust designs, ensuring superior performance in both standard and specialised configurations. With high precision and durability, these valves are engineered to meet the strictest requirements for flow control, making them suitable for a wide array of industries that demand high-quality and efficient fluid handling solutions.

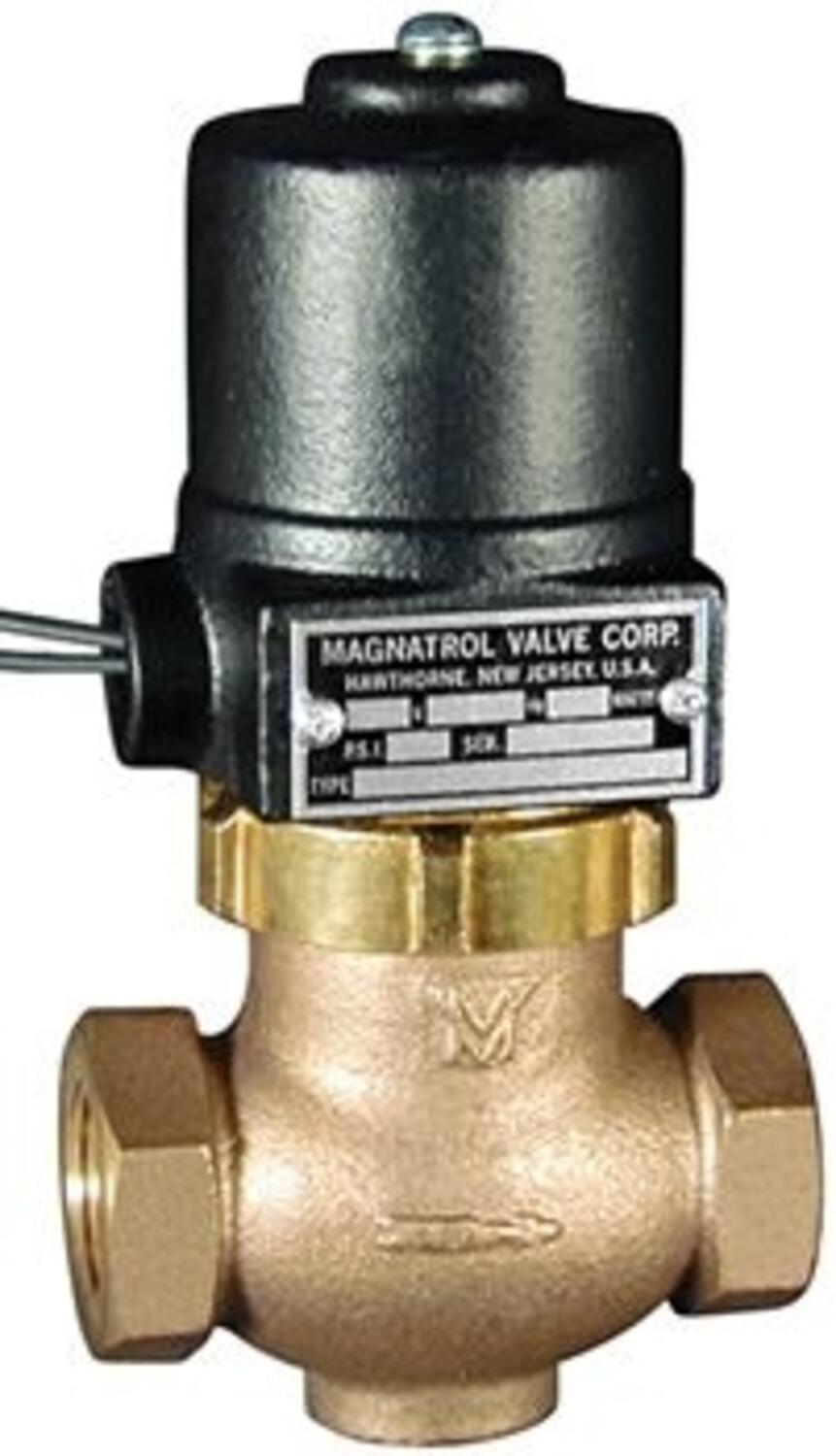

Magnatrol Type A normally closed solenoid valve
- Full Port Normally Closed Valve ½” to 3” NPT
- Maximum static pressure 300PSI
- Valve operates from zero pressure.
- Valve Body – Cast Bronze, Globe Pattern – NPT ends

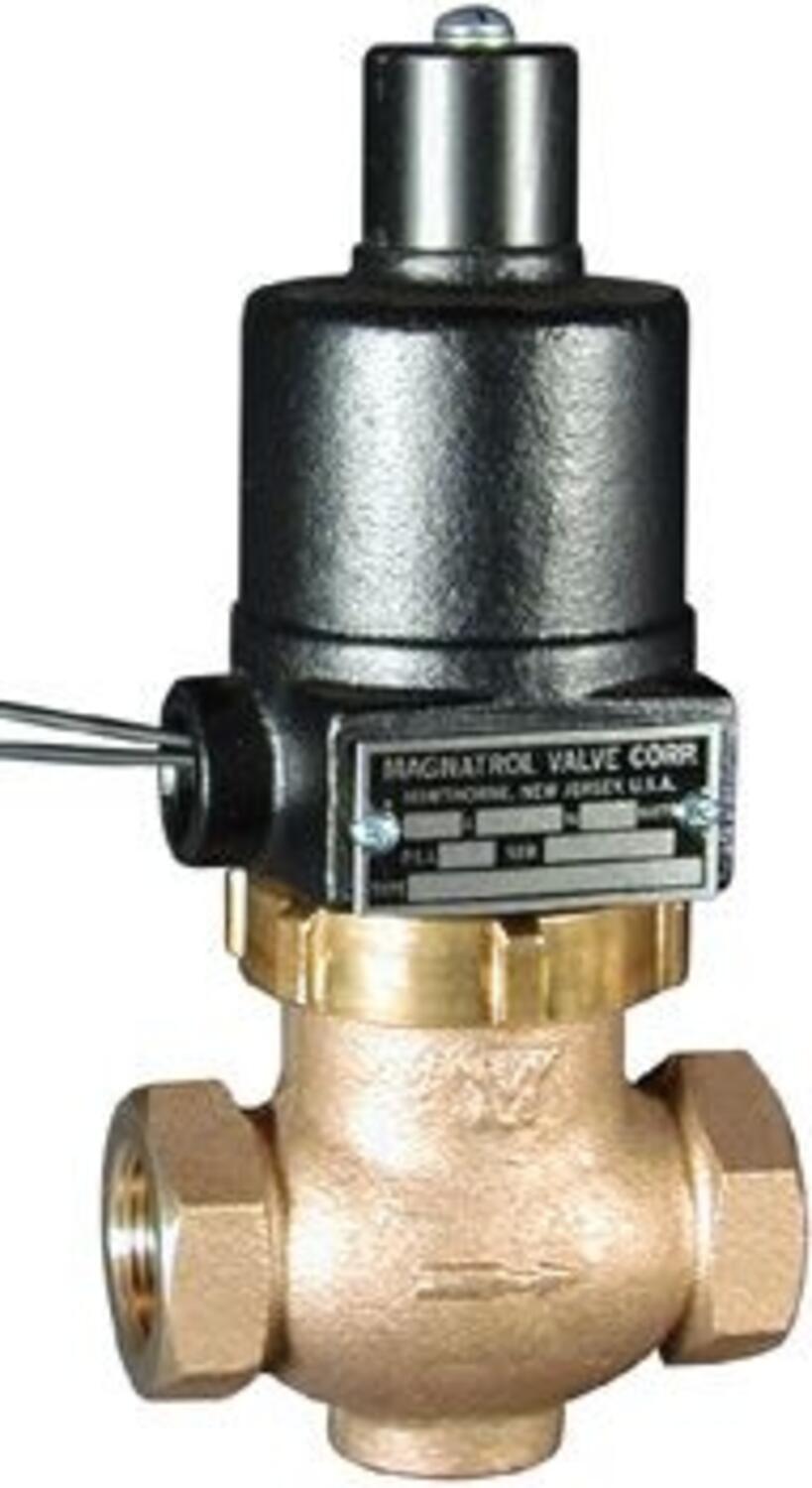

Magnatrol Type AR normally open solenoid valve
- Full Port Normally Open Valve ½” to 3” NPT
- Maximum static pressure 300PSI
- Valve operates from zero pressure
- Valve Body – Cast Bronze, Globe Pattern – NPT ends

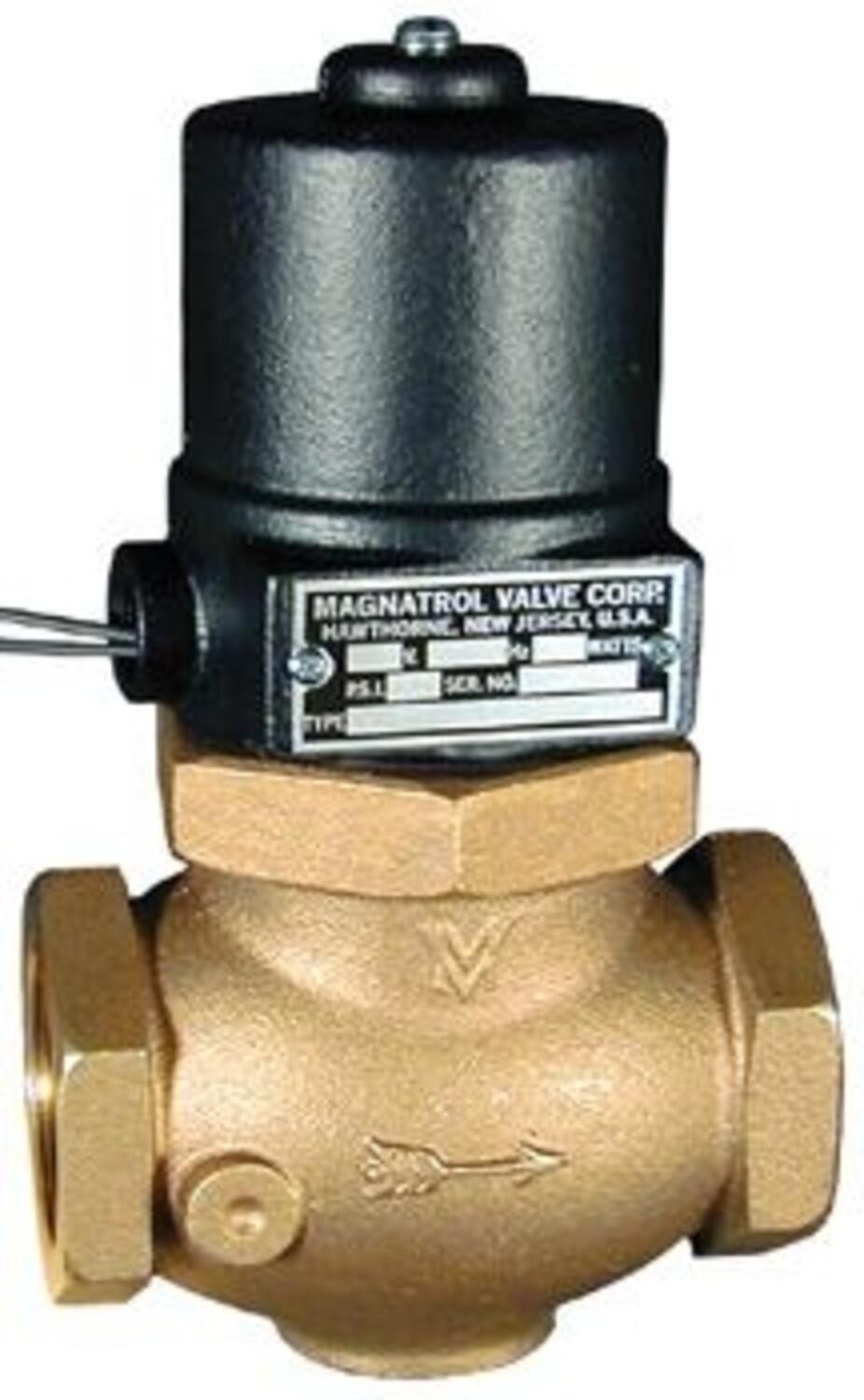

Magnatrol Type G normally closed solenoid valve
- Full Port Normally Closed Valve ½” to 3” NPT
- Maximum static pressure 150PSI
- Valve operates from zero pressure.
- Valve Body – Cast Bronze, Globe Pattern – NPT ends

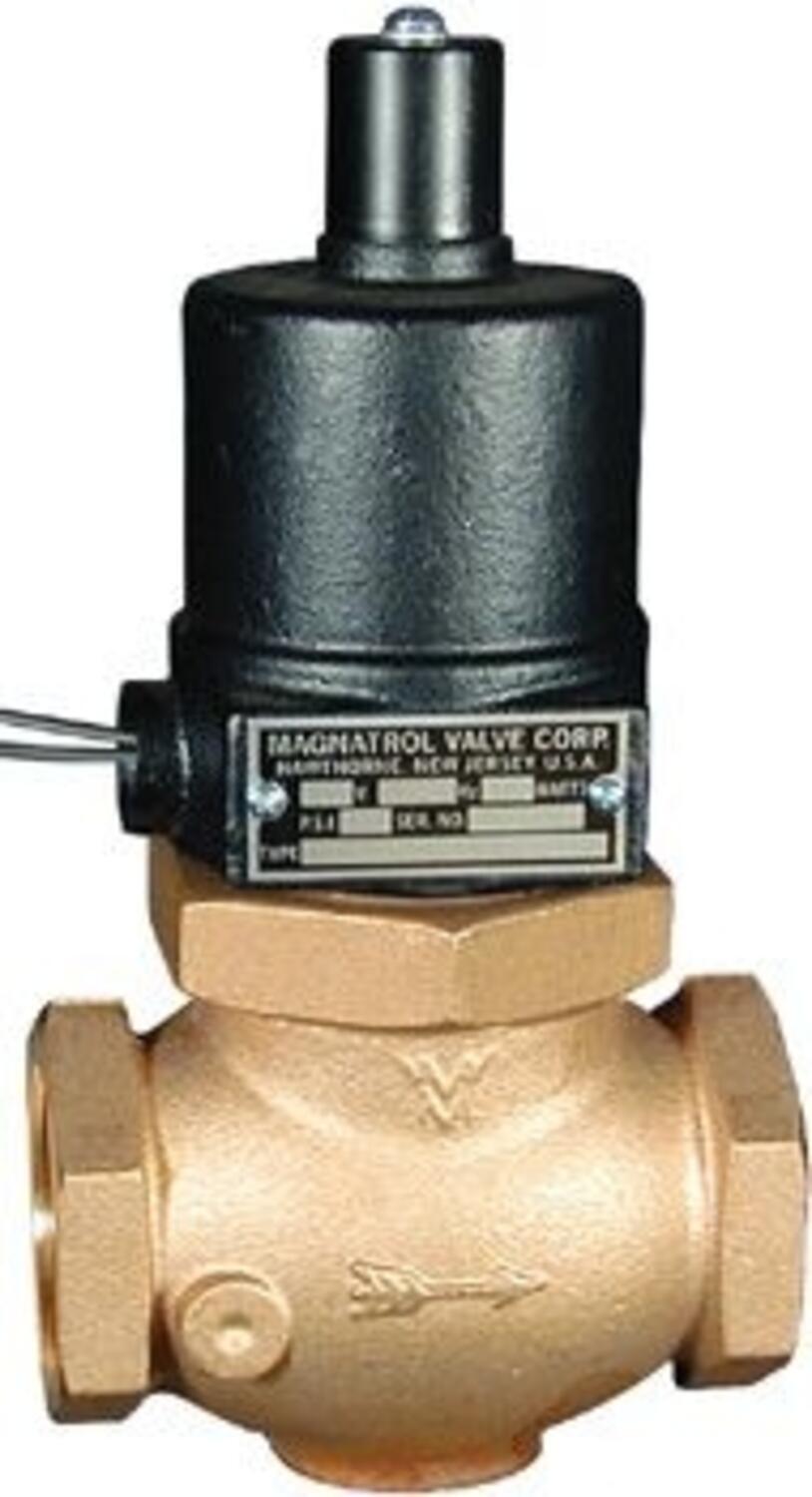

Magnatrol Type GR normally open solenoid valve
- Full Port Normally Open Valve ½” to 3” NPT
- Maximum static pressure 150PSI
- Valve operates from zero pressure.
- Valve Body – Cast Bronze, Globe Pattern – NPT ends

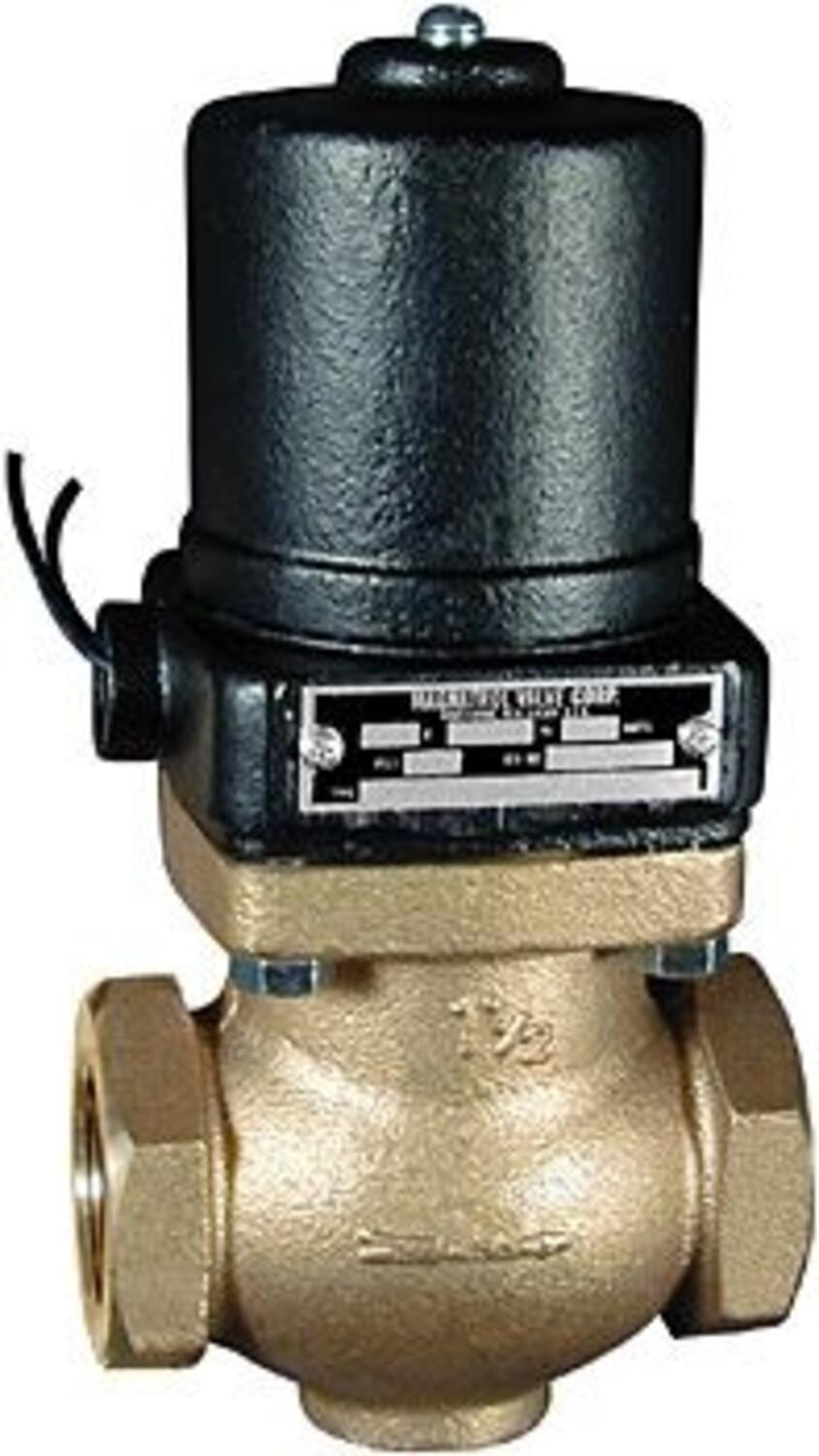

Magnatrol Type S normally closed solenoid valve
- Full Port Normally Closed Valve ½” to 3” NPT
- Maximum static pressure 200PSI
- Valve operates from zero pressure.
- Valve Body – Cast Bronze, Globe Pattern – NPT ends

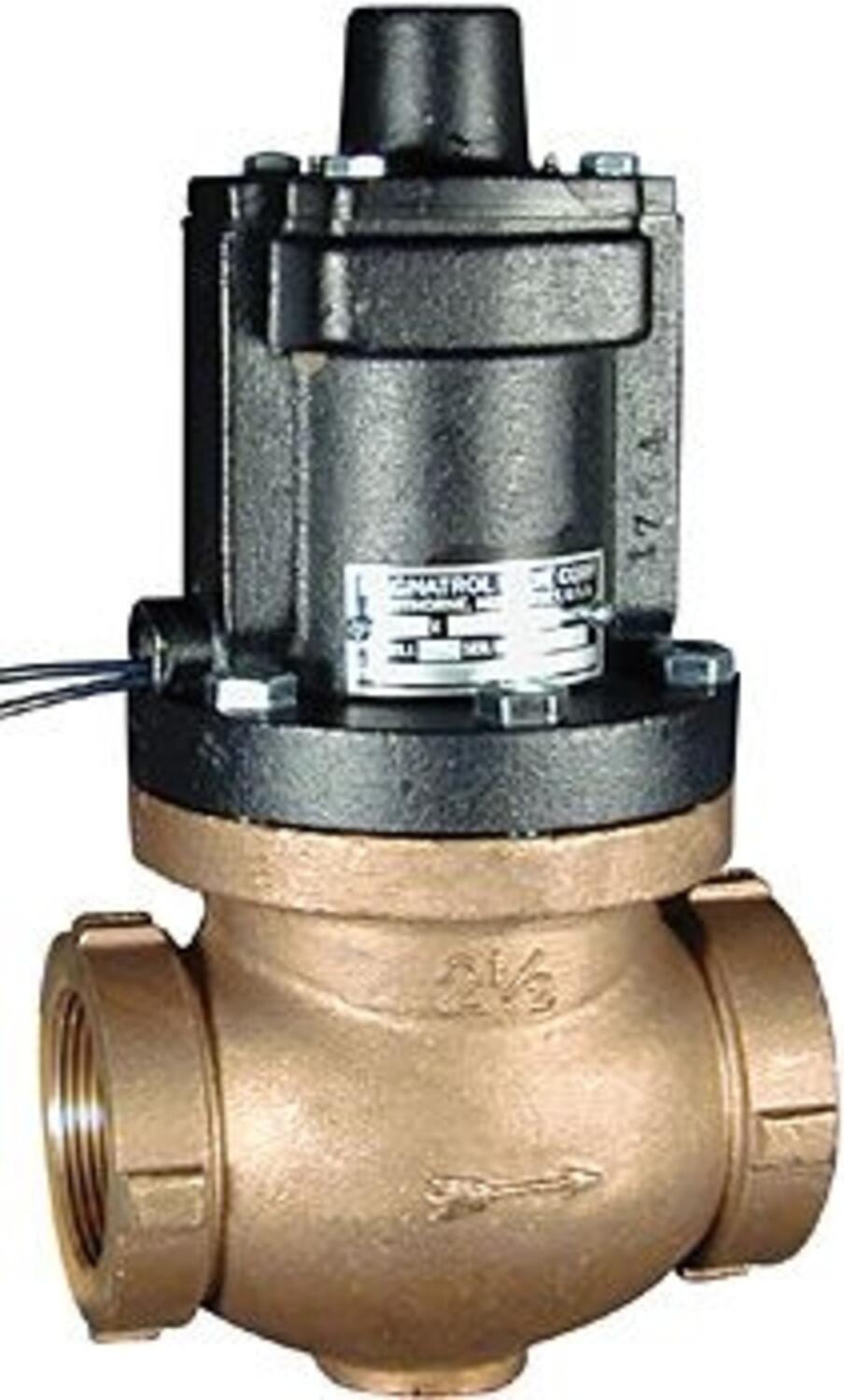

Magnatrol Type SR normally open solenoid valve
- Full Port Normally Open Valve ½” to 3” NPT
- Maximum static pressure 200PSI
- Valve operates from zero pressure.
- Valve Body – Cast Bronze, Globe Pattern – NPT ends
Clark Cooper/Magnatrol model EH30 solenoid valve
- ¼” NPT
- 0 to 10,000PSI
- unidirectional reduced port
- Valve Body - 316 Stainless Steel

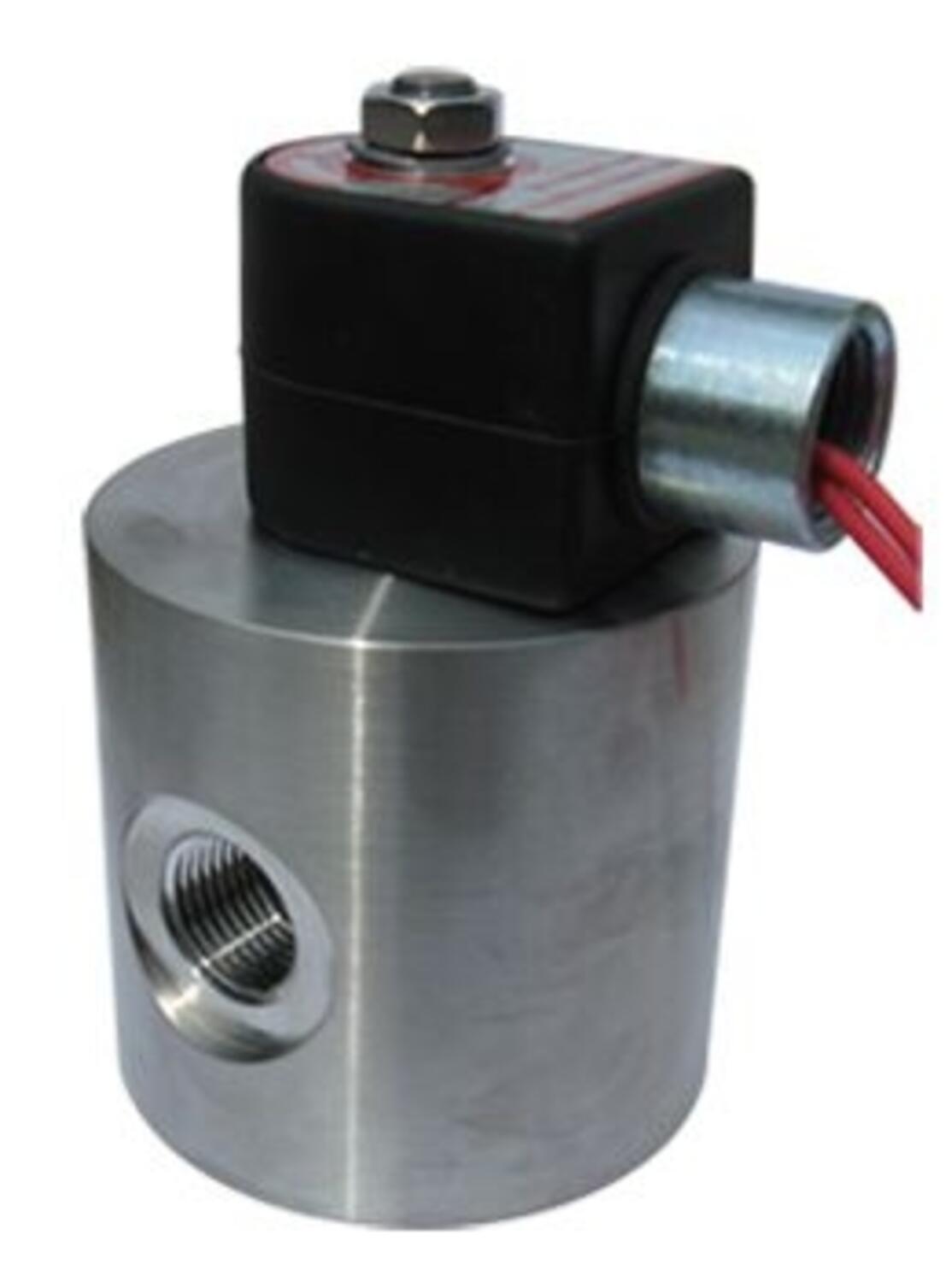

Clark Cooper/Magnatrol Model EH40 solenoid valve
- 1/4” and 1/2” NPT
- 50 to 10,000 PSI.
- unidirectional, full port
- Valve Body - 316 Stainless Steel

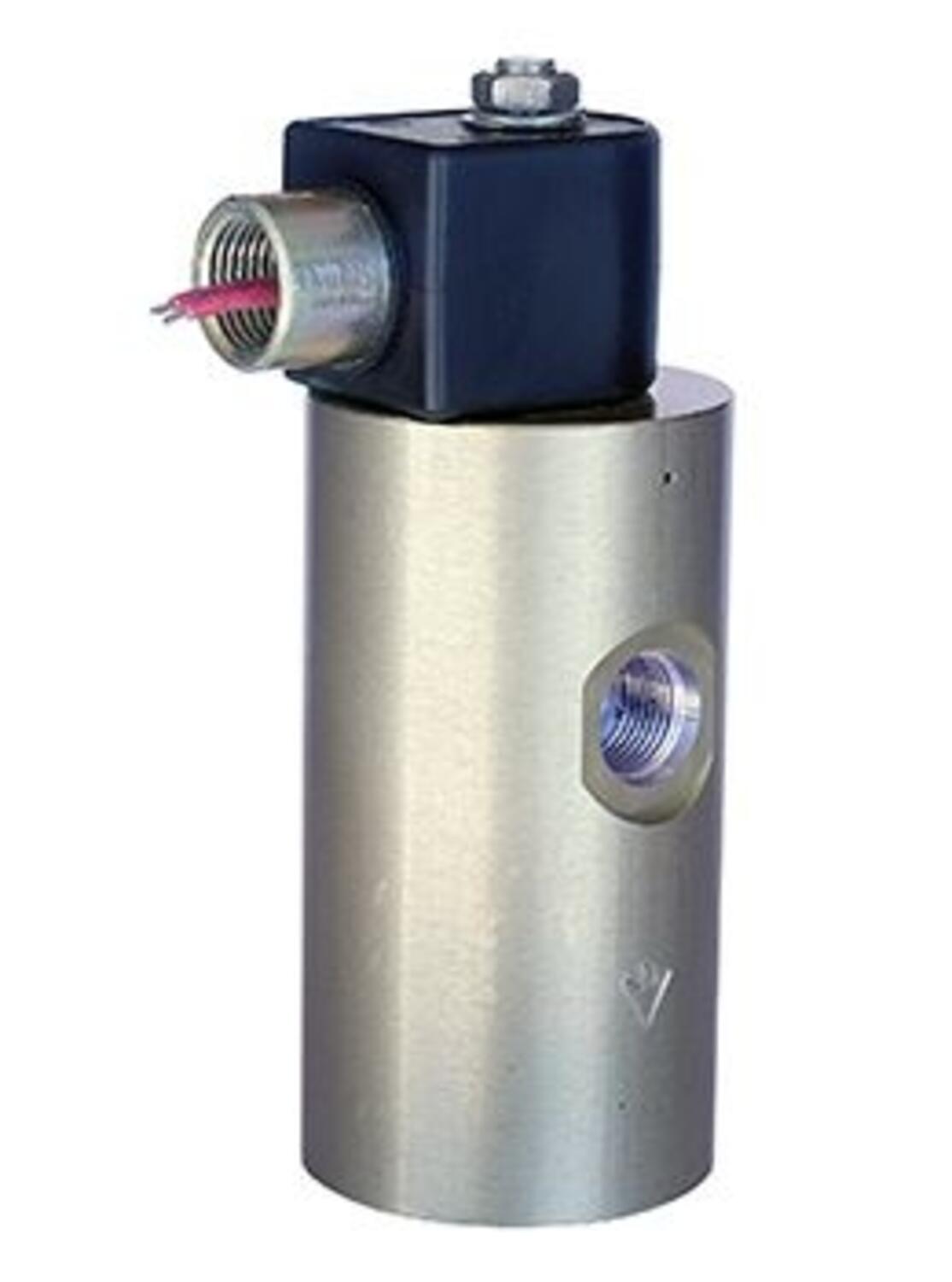

Clark Cooper/Magnatrol Model EH50 solenoid valve
- ½” NPT
- 10,000 PSI
- 100 PSIG minimum pressure differential between inlet and outlet for operation
- Valve Body - 7075-T6 Andonised Aluminium/316 Stainless Steel

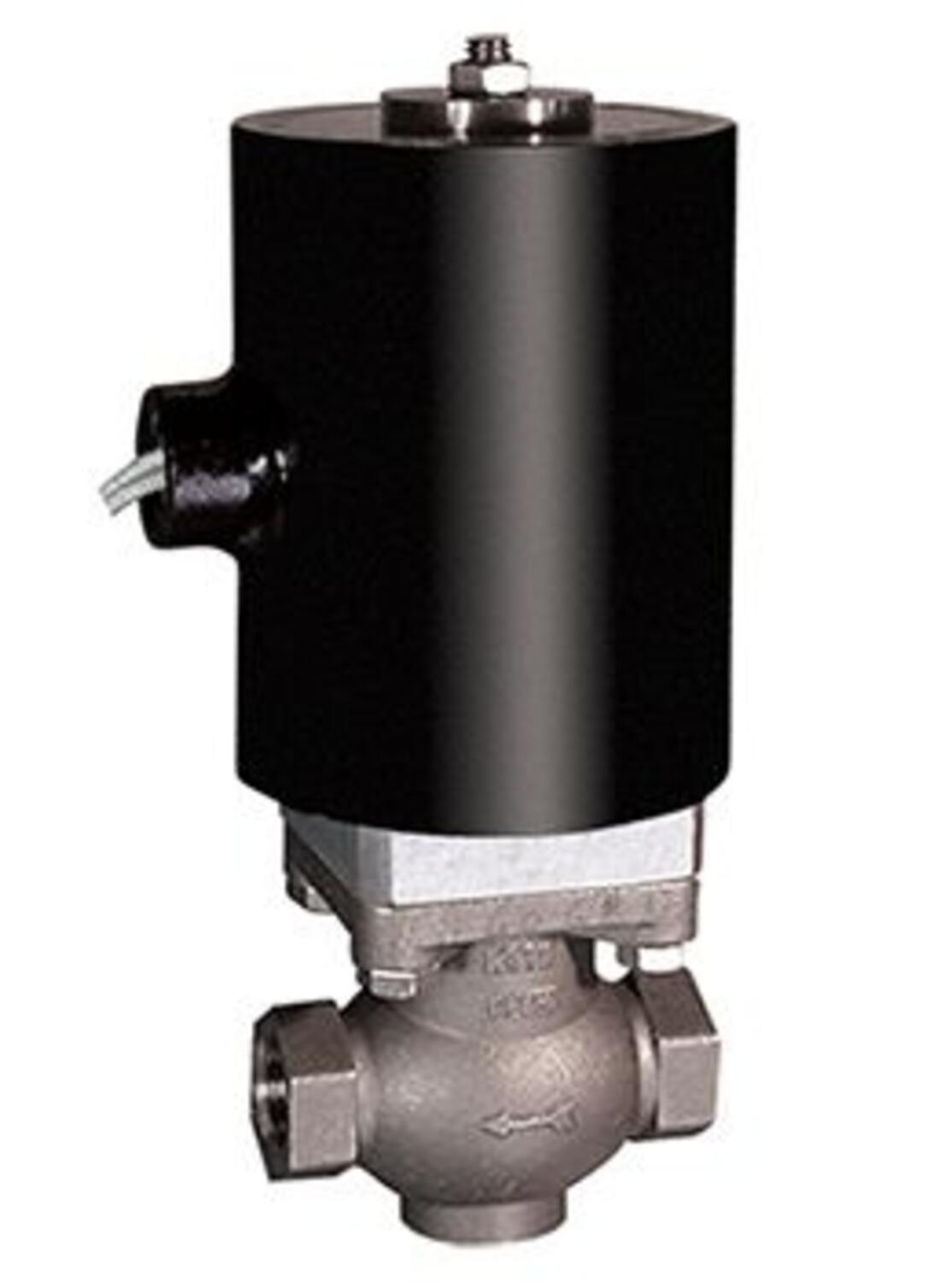

Clark Cooper/Magnatrol Model EH70 solenoid valve
- ½” to 2” NPT
- 1,500 PSI
- 2-way, unidirectional
- Valve Body - 316 Stainless Steel (CF8M)

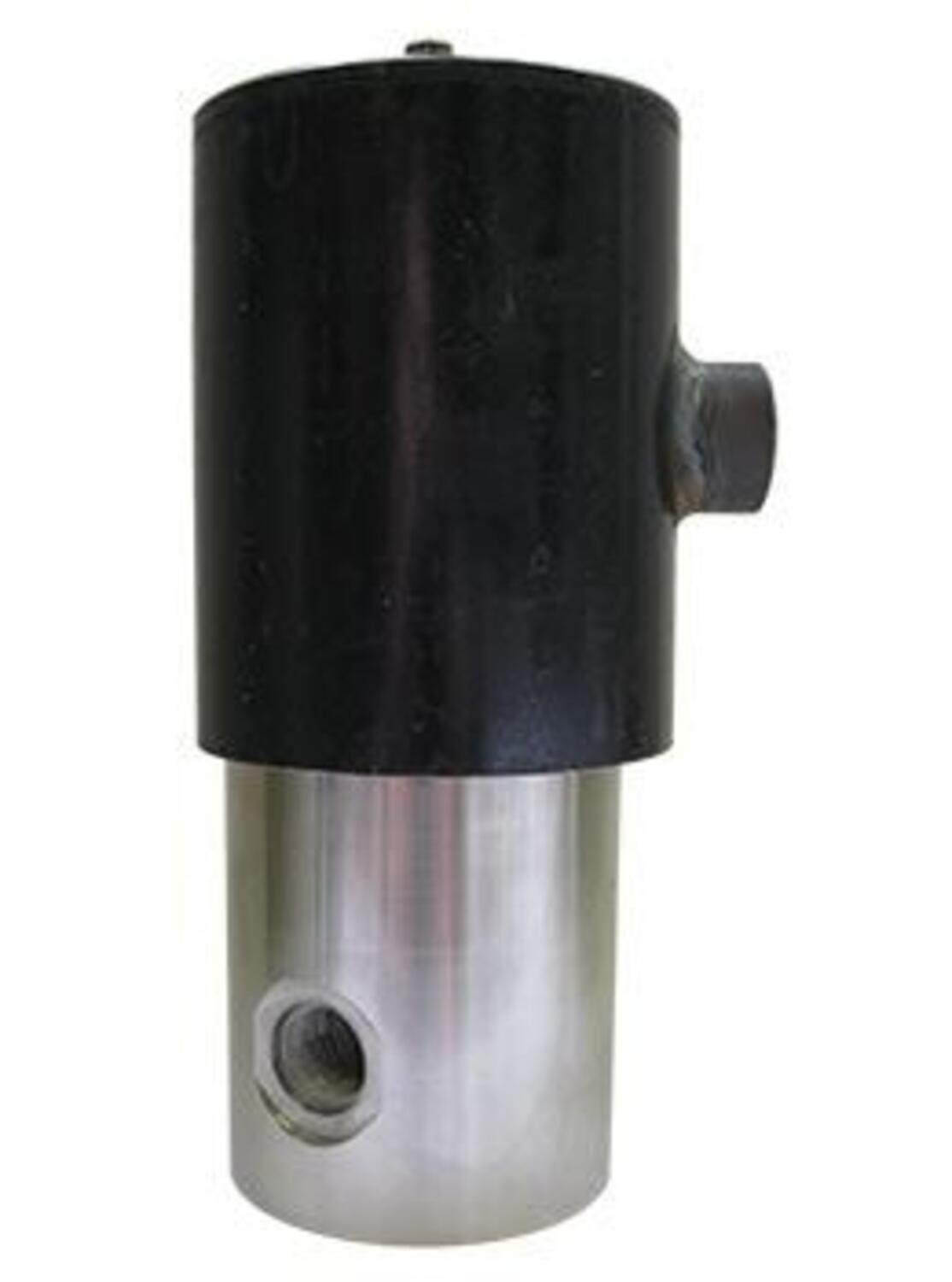

Clark Cooper/Magnatrol Model EP70 solenoid valve
- ½” NPT or SAE
- up to 5,000PSI
- 2-way, unidirectional full port
- Valve Body - 316 Stainless Steel (CF8M)

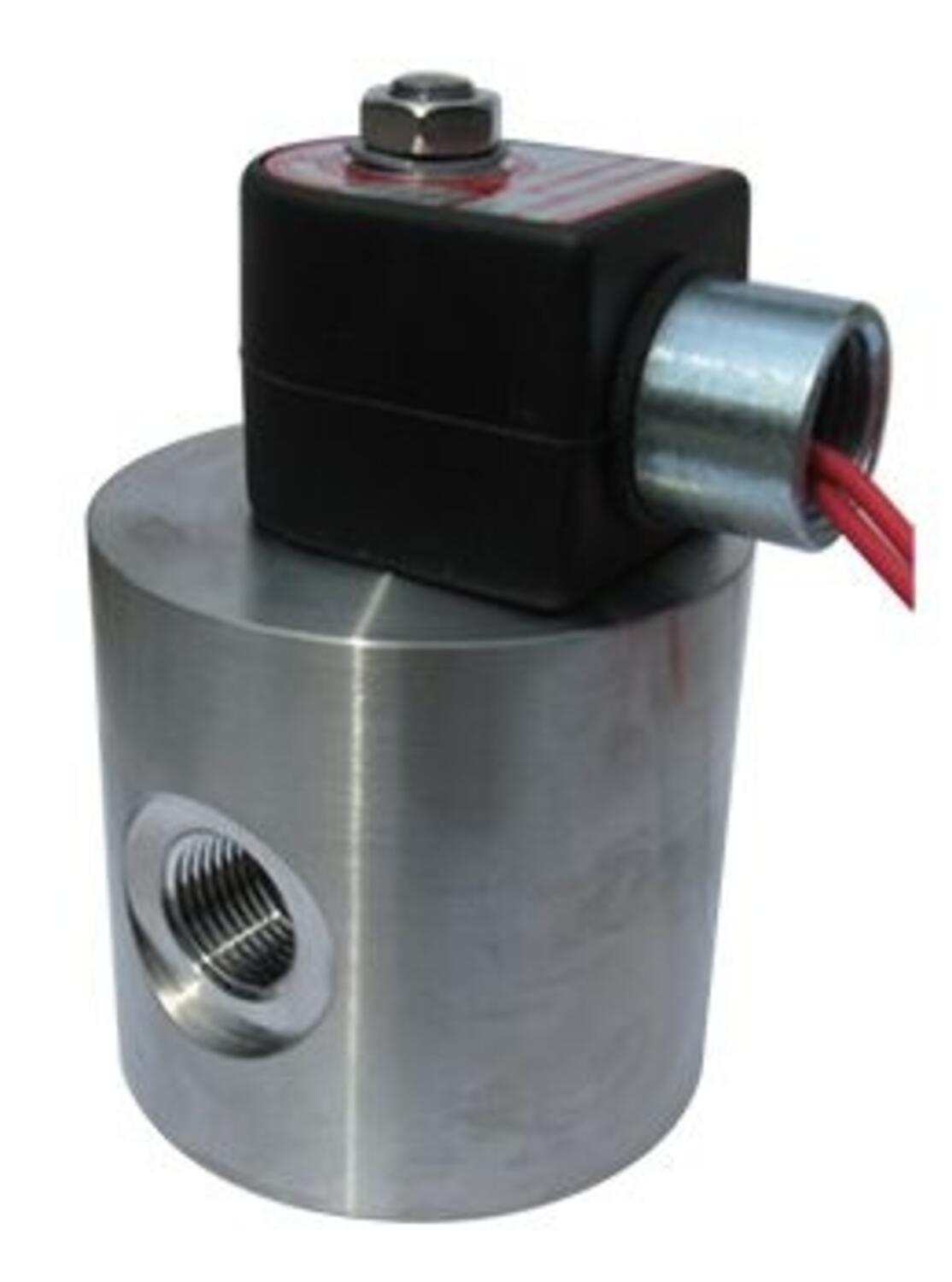

Clark Cooper/Magnatrol Model EX40 solenoid valve
- 3/8” MPF
- Requires a 100 PSIG -15,000 PSIG
- 2 Way Reduced bore
- Valve Body - 316 Stainless Steel
Cryogenic Service
Magnatrol solenoid valves for cryogenic service are specifically designed to handle the demanding requirements of low-temperature applications. These valves offer reliable operation for cryogenic fluids and gases, providing precise control in environments where temperature extremes are encountered. With durable construction and robust materials, these valves are built to maintain performance even in harsh conditions, ensuring minimal maintenance and longer service life. Available in various configurations, Magnatrol cryogenic solenoid valves are ideal for industries like aerospace, medical, and industrial cryogenics, where maintaining operational reliability and safety is critical.

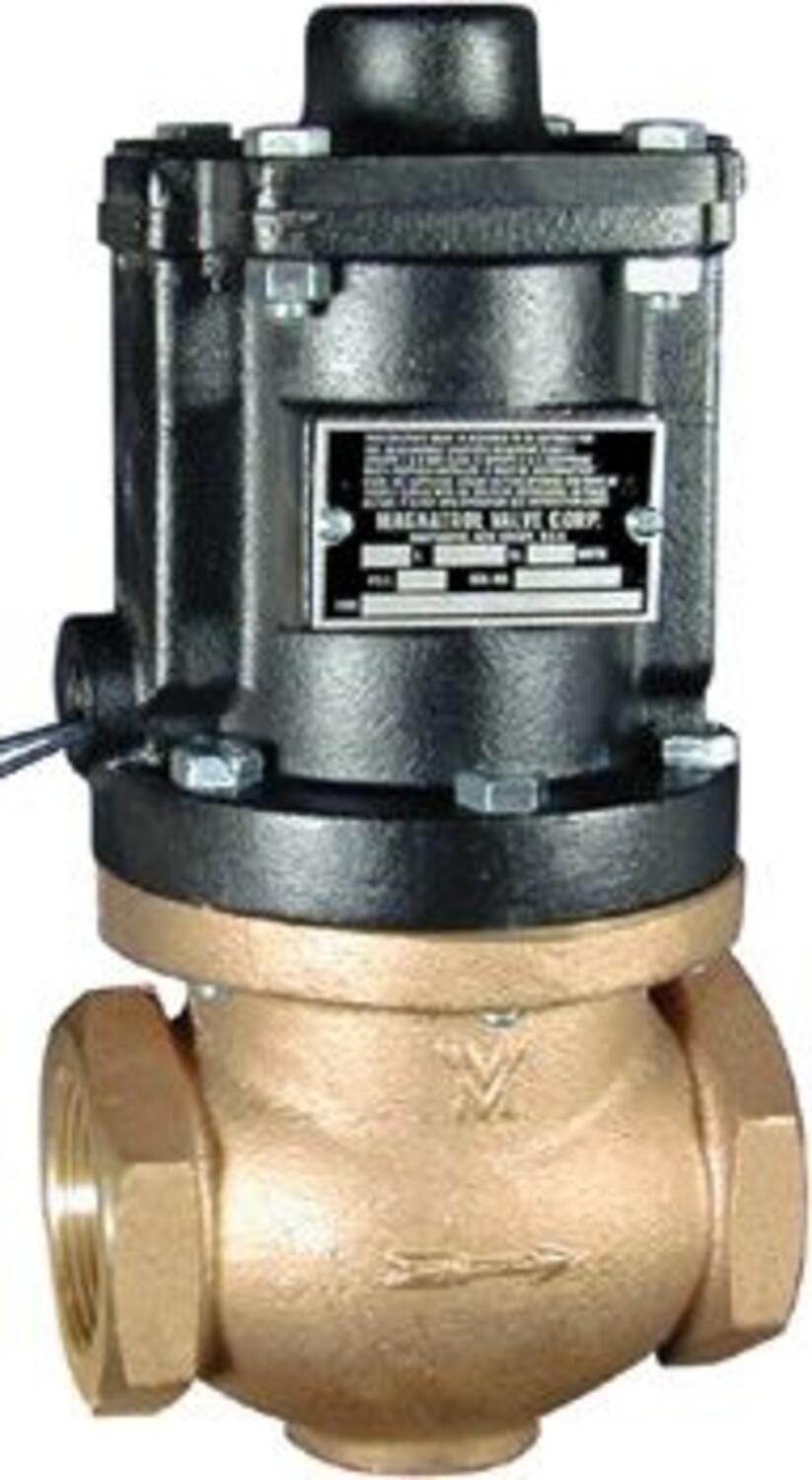

Magnatrol Type L normally closed solenoid valve
- Full Port Normally Closed Valve ½” to 3” NPT
- Maximum static pressure 300PSI
- Valve operates from zero pressure.
- Valve Body – Cast Bronze, Globe Pattern – NPT ends

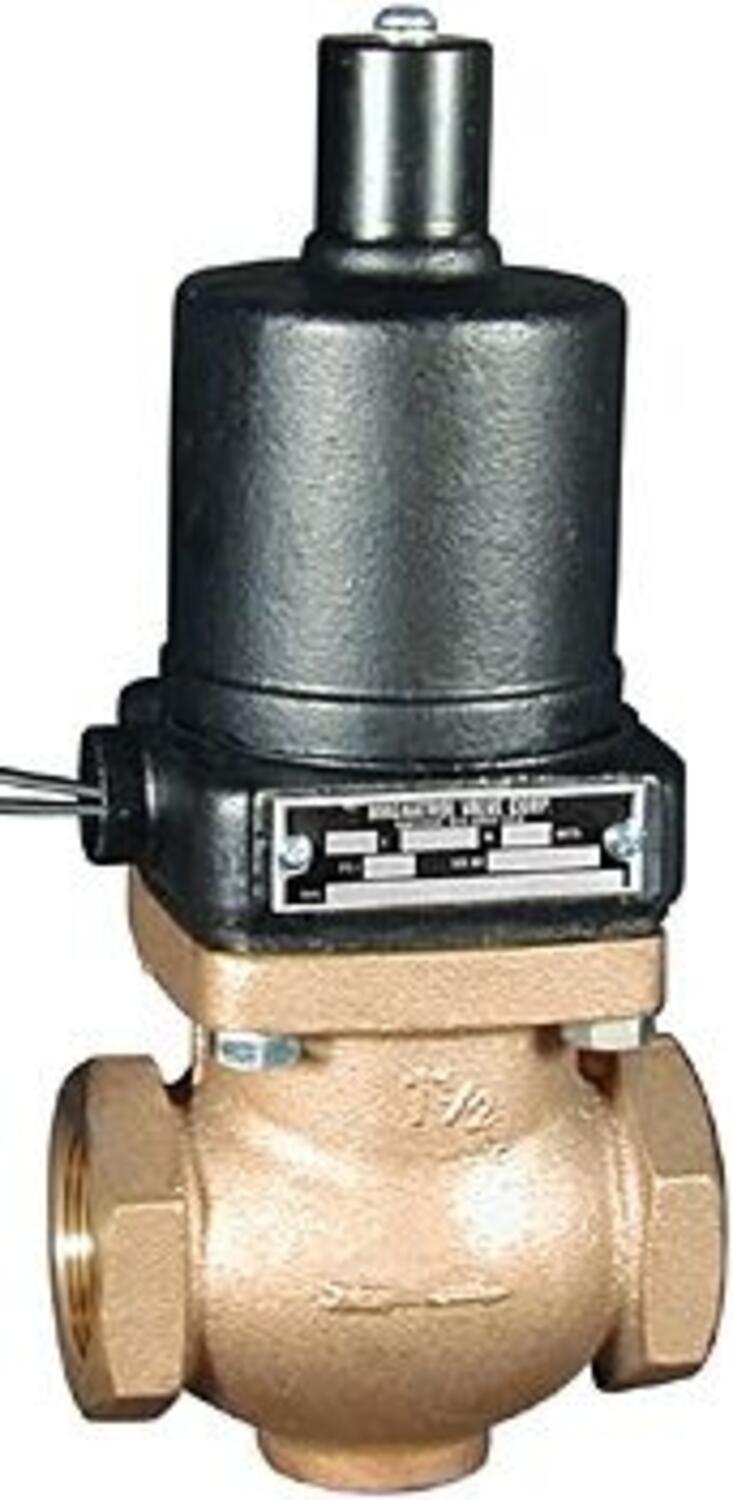

Magnatrol Type LR normally open solenoid valve
- Full Port Normally Open Valve ½” to 3” NPT
- Maximum static pressure 300PSI
- Valve operates from zero pressure.
- Valve Body – Cast Bronze, Globe Pattern – NPT ends

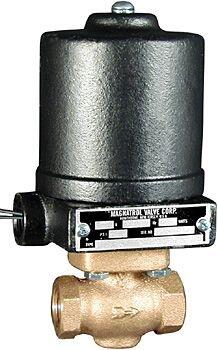

Magnatrol Type M normally closed solenoid valve
- Full Port Normally Closed Valve 3/8” to 3/4” NPT
- Maximum static pressure 150PSI
- Valve operates from zero pressure.
- Valve Body – Cast Bronze, Globe Pattern – NPT ends

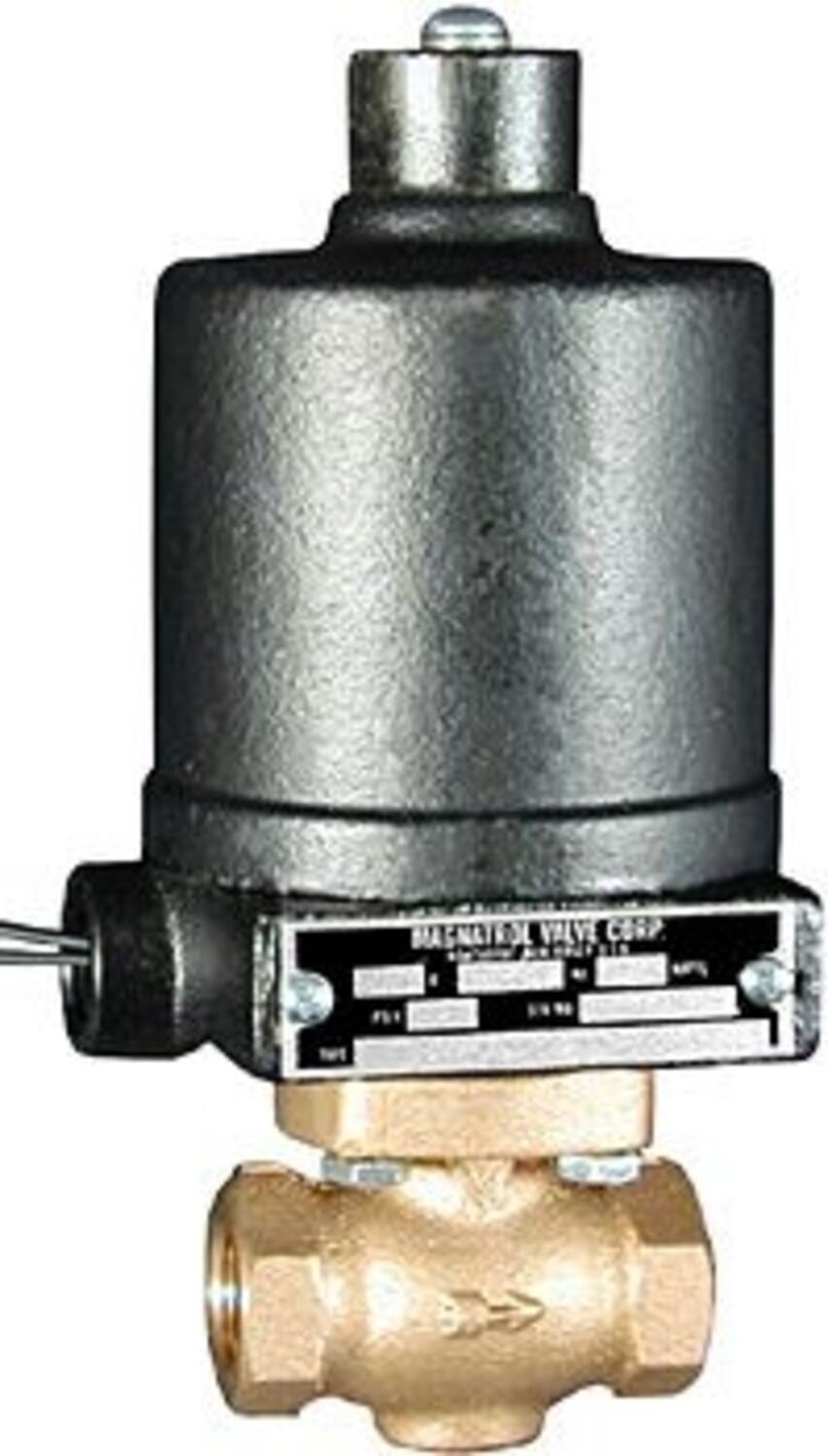

Magnatrol Type MR normally open solenoid valve
- Full Port Normally Open Valve 3/8” to 3/4” NPT
- Maximum static pressure 150PSI
- Valve operates from zero pressure.
- Valve Body – Cast Bronze, Globe Pattern – NPT ends

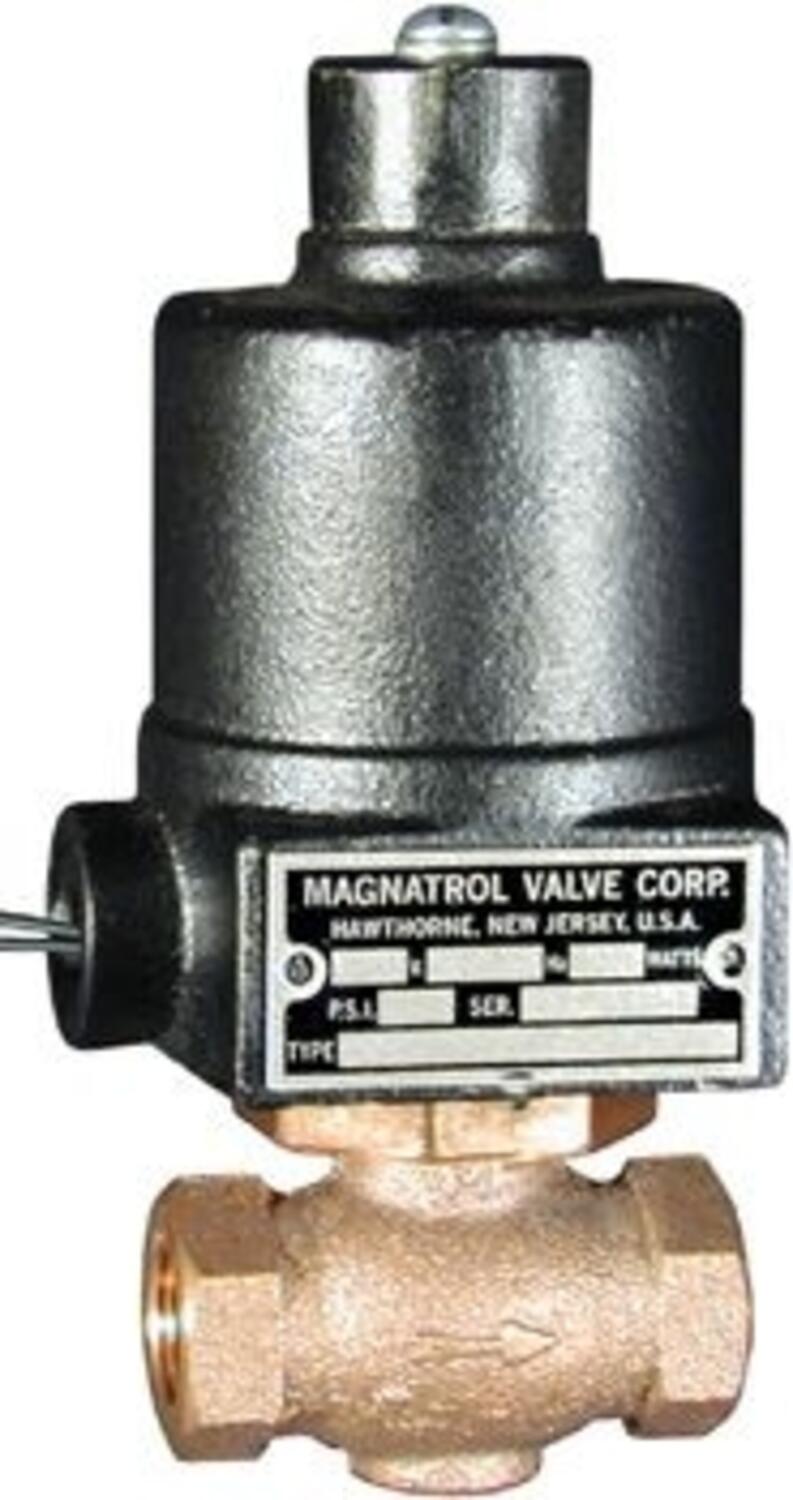

Magnatrol Type NR normally open solenoid valve
- Full Port Normally Open Valve ½” to 3/4” NPT
- Maximum static pressure 300PSI
- Valve operates from zero pressure
- Valve Body – Cast Bronze, Globe Pattern – NPT ends

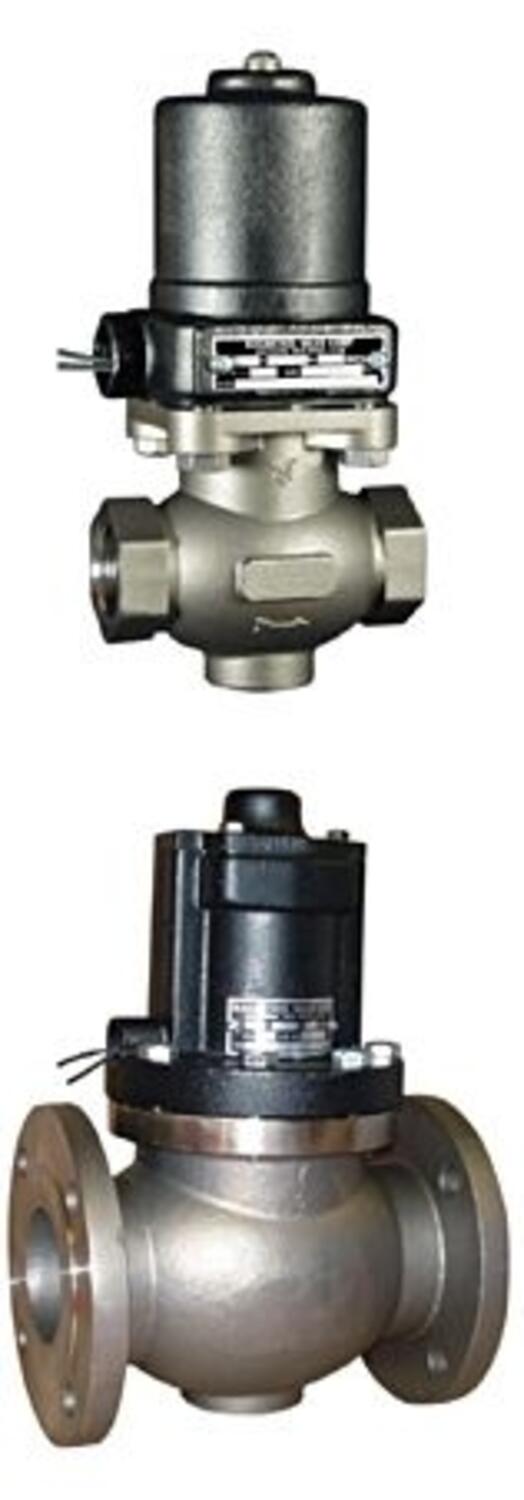

Magnatrol Type K normally closed solenoid valve
- Full Port Normally Closed Valve ½” to 3” NPT
- Maximum static pressure 300PSI
- Valve operates from zero pressure.
- Valve Body – 304 Stainless Steel Globe Pattern – NPT ends
Magnatrol Type KR normally open solenoid valve
- Full Port Normally Open Valve ½” to 3” NPT
- Maximum static pressure 300PSI
- Valve operates from zero pressure.
- Valve Body – 304 Stainless Steel Globe Pattern – NPT ends
Hot Water and Steam Valves
Magnatrol offers a range of solenoid valves suitable for hot water and steam applications. These valves are designed for precise flow control in demanding environments. The Type W is a normally closed valve constructed from 304 stainless steel, operating from zero pressure with a maximum static pressure of 200 PSI. Similarly, the Type WR is a normally open valve, also made from 304 stainless steel, with identical pressure specifications and zero-pressure operation. Both models feature full-port designs with NPT threaded ends, ensuring efficient flow and easy installation

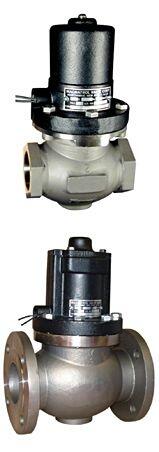

Magnatrol Type W normally closed solenoid valve
- Full Port Normally Closed Valve ½” to 3” NPT
- Maximum static pressure 200PSI
- Valve operates from zero pressure.
- Valve Body – 304 Stainless Steel Globe Pattern – NPT ends

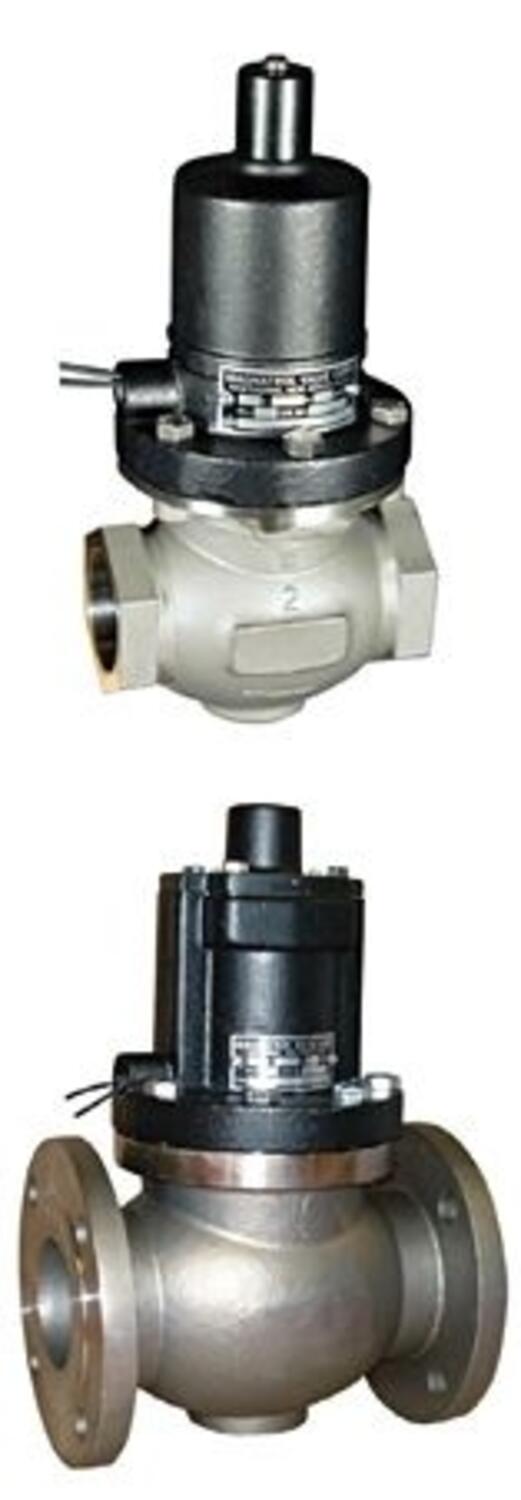

Magnatrol Type WR normally open solenoid valve
- Full Port Normally Open Valve ½” to 3” NPT
- Maximum static pressure 200PSI
- Valve operates from zero pressure
- Valve Body – 304 Stainless Steel Globe Pattern – NPT ends
General Service
Magnatrol offers a range of solenoid valves for general service applications. These solenoid valves are designed for efficient operation across various industries, providing reliable fluid control. The range includes valves for different media, with options for different port sizes, configurations, and pressures. Known for their durability and performance, Magnatrol solenoid valves are built to handle standard and specific operational needs, ensuring longevity and minimal maintenance. These versatile valves are suitable for use in a variety of systems requiring accurate and reliable flow control.

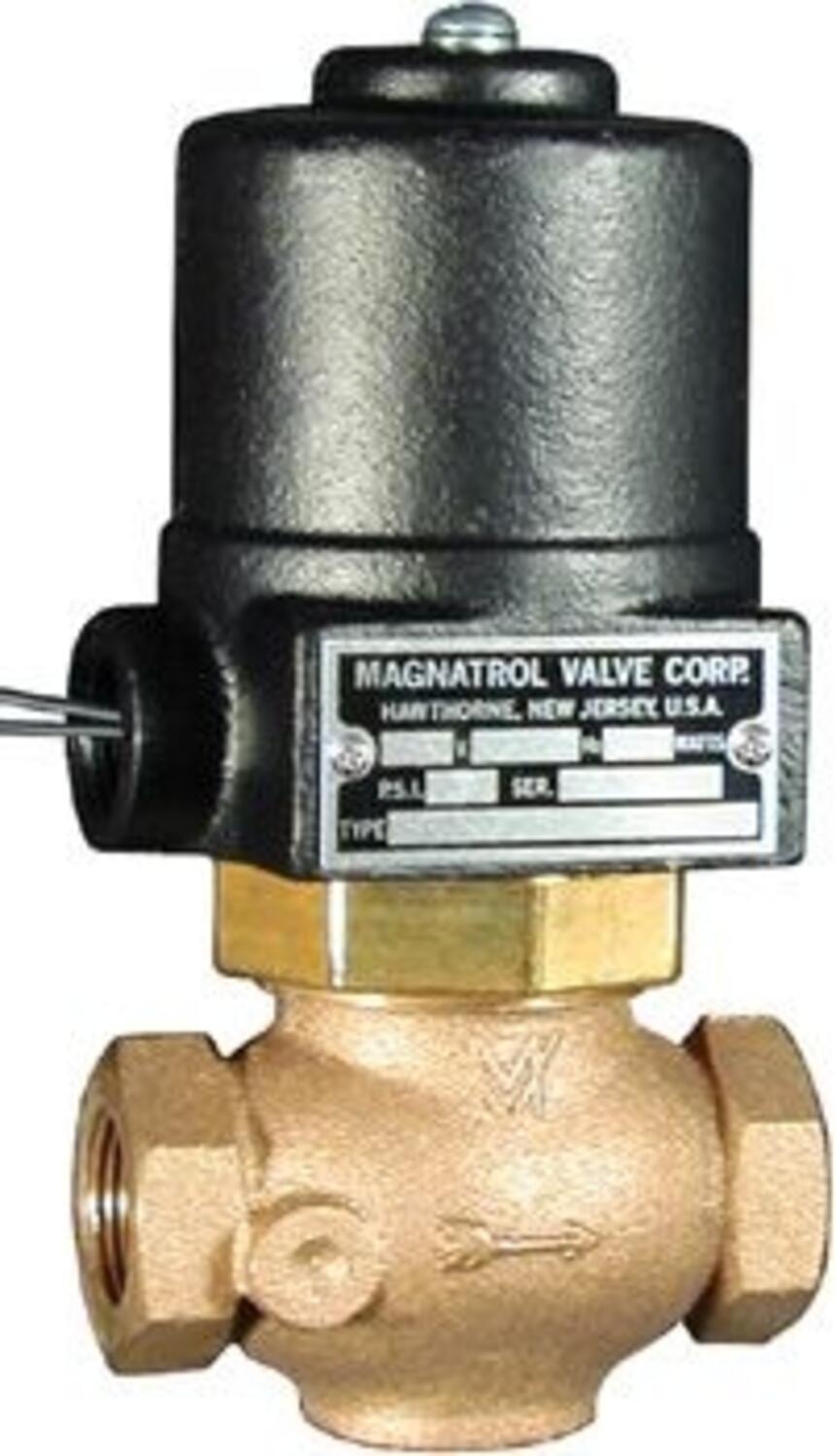

Magnatrol Type D normally closed solenoid valve
- Full Port Normally Closed Valve ½” to 2” NPT
- Maximum static pressure 150PSI
- Valve operates from zero pressure
- Valve Body – Cast Bronze, Globe Pattern – NPT ends

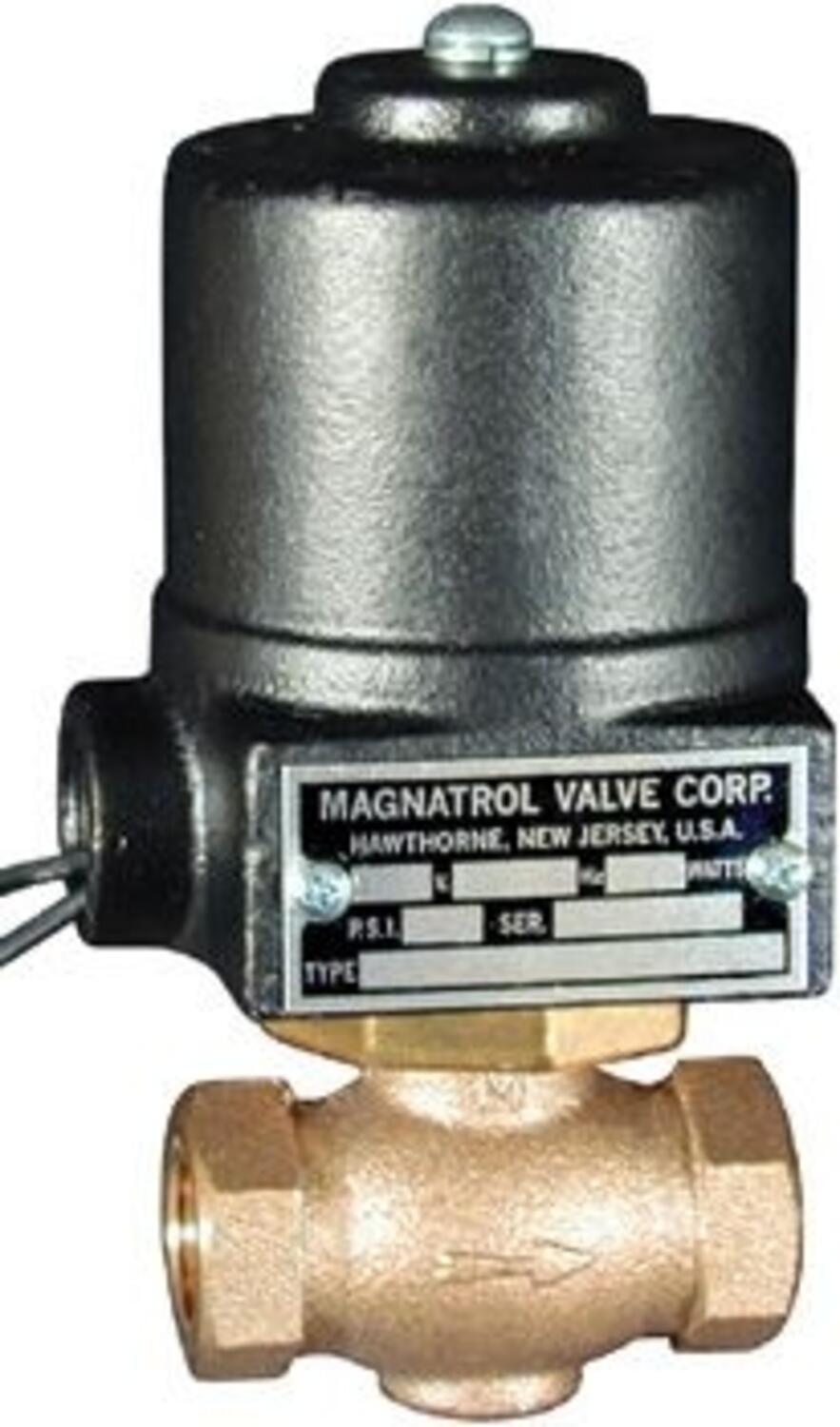

Magnatrol Type N normally closed solenoid valve
- Full Port Normally Closed Valve ½” to 3/4” NPT
- Maximum static pressure 300PSI
- Valve operates from zero pressure
- Valve Body – Cast Bronze, Globe Pattern – NPT ends

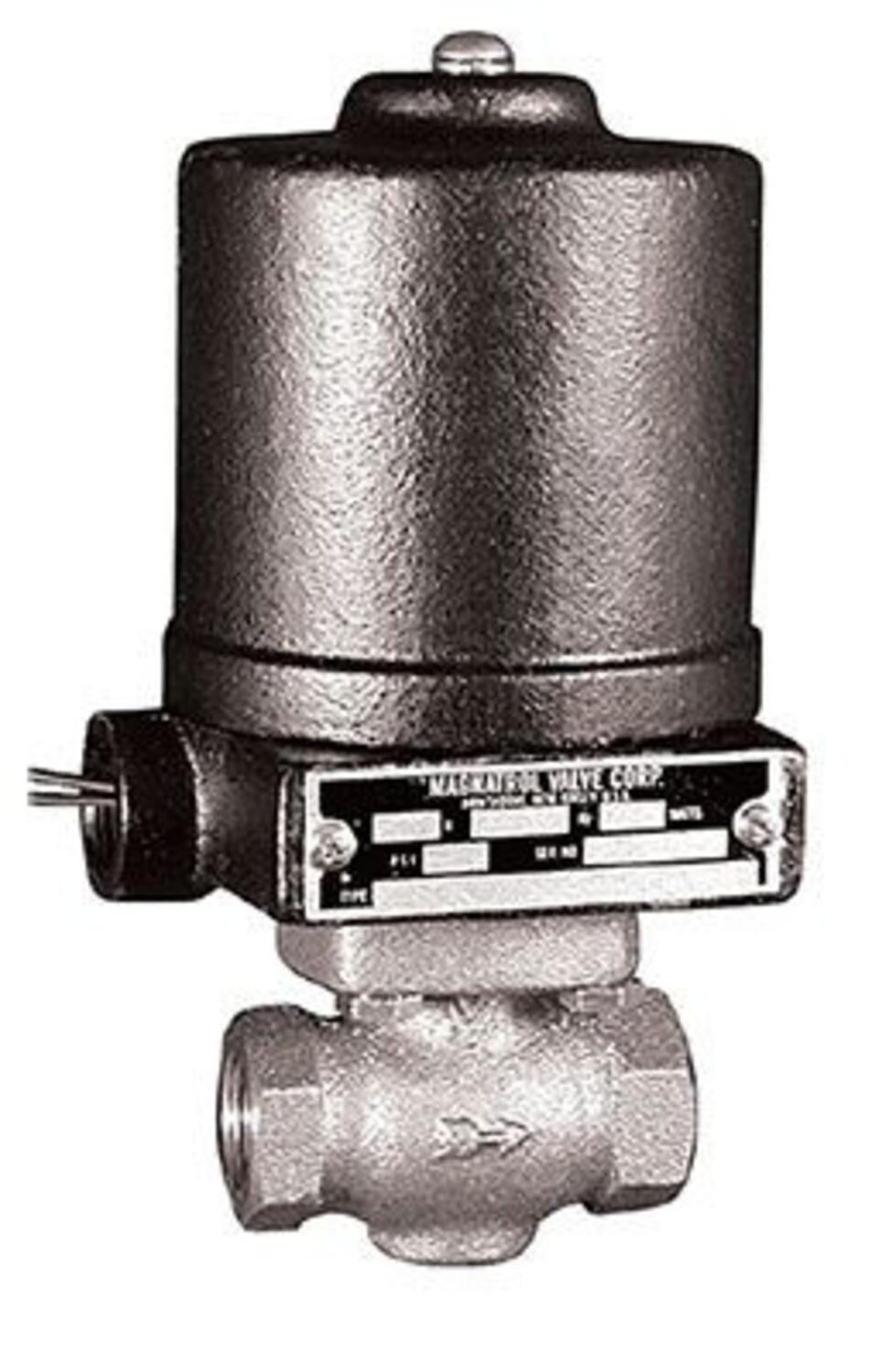

Magnatrol Type J normally closed solenoid valve
- Full Port Normally Closed Valve 3/8” to 1/2” NPT
- Maximum static pressure 300PSI
- Valve operates from zero pressure.
- Valve Body – 304 Stainless Steel Globe Pattern – NPT ends

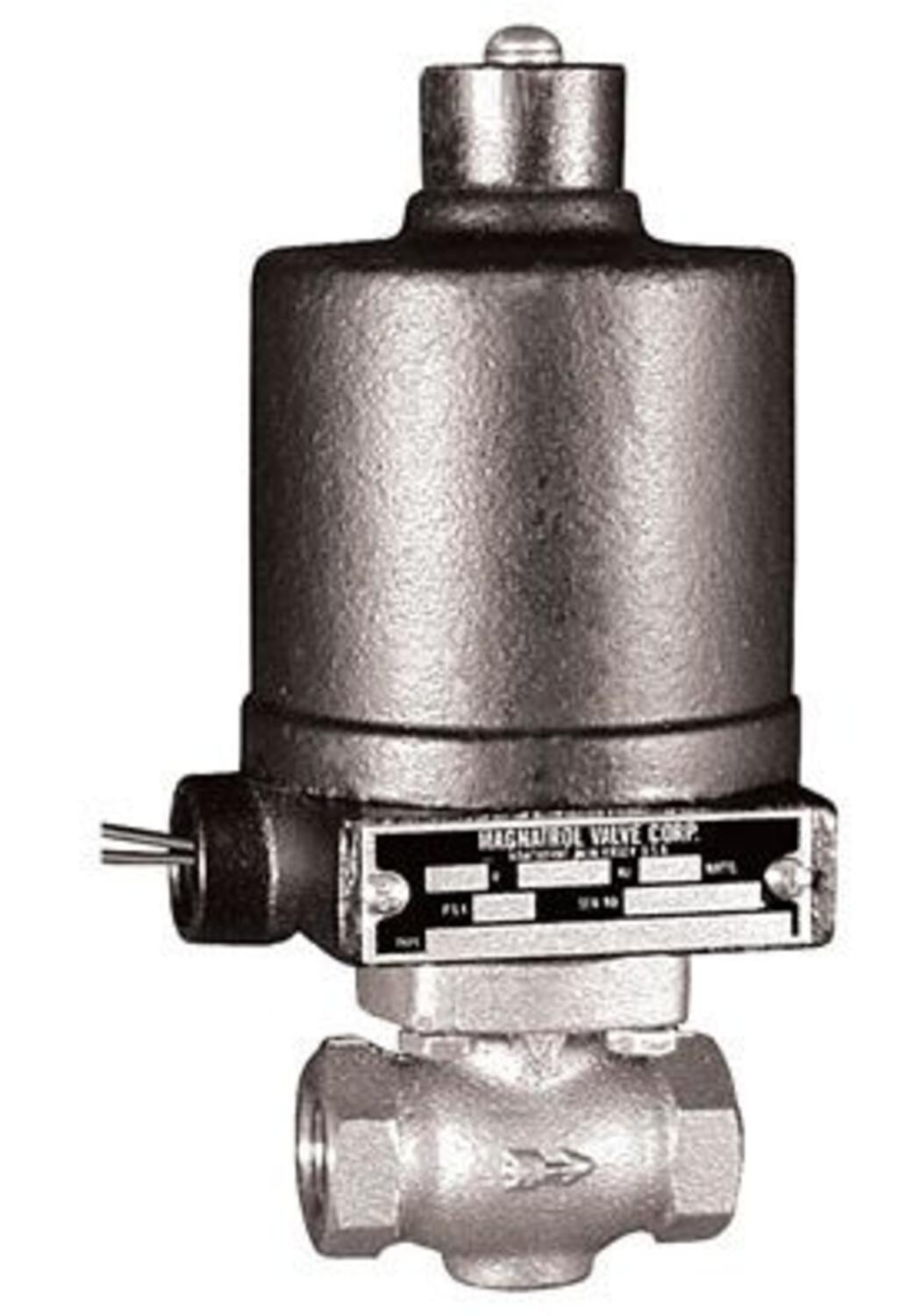

Magnatrol Type JR normally open solenoid valve
- Full Port Normally Open Valve 3/8” to 1/2” NPT
- Maximum static pressure 300PSI
- Valve operates from zero pressure
- Valve Body – 304 Stainless Steel Globe Pattern – NPT ends
