Electromen
Electromen are based in Finland and have over 30 years of expertise in the design and manufacture of DC motor drives and power controllers, specifically developed for the industrial market. Their products offer flexible and cost-effective solutions to many motor control applications. Supply voltages range from 12-48V with a continuous output of up to 50A. They can be freely programmed by the end user and tailored to the application.
Electromen products are used in every area of industrial automation and are a great choice for use for most straightforward single axis DC motor applications. Whilst not a safety specific product the current limiting feature can provide protection against mechanical overload and hazardous pinch points.
OEM Automatic is an authorised distributor of Electromen's motor drivers.
Reasons to use an Electromen drive:
- Protect the motor from burnout/overload conditions with current limiting feature
- Precisely control of speed, torque and position with a high level of reliability
- Smooth motion with start and stop ramps, and protect system from jarring and mechanical shock
- Easy to program to enable the same drive to be used in multiple applications
- High efficiency (90-98%), very low RF emissions and good EMC
- Modbus communication options allow for feedback to wiser control system
- Comprehensive current trip options provide an extra level of protection at trap points
Key product areas:
- Brushed DC motor drives
- Brushless DC motor drives (BLDC)
- Stepper motor controllers
- Motor drivers with positional control
- Motor drivers for linear actuators
Typical applications:
- Access control
- Agriculture
- Scientific and medical
- Packaging and printing machinery
- Material handling and intralogistics
- Special purpose machines
- General industrial automation
Product Ranges
Brushed DC Motor Drives
Electromen's brushed DC motor drives are designed for precise speed and torque control, offering a voltage ranges of 12Vdc to 48Vdc and supporting current capacities up to 100A, depending on the model. Key features include adjustable acceleration and deceleration rates, built-in overcurrent, overvoltage, and thermal protection, as well as a user-friendly interface for easy configuration.
Electromen - EM-324C
DC motor 2Q drive 12-24Vdc, 4A
- 12-24Vdc, 4A continuous, 7A peak
- Speed, direction, current limiting, soft start/stop and auto-reverse control
- Limit switch inputs for end of travel
- Compact, DIN rail mountable
Electromen - EM-241C
DC motor 2Q drive 12-48Vdc, 10-15A
- 12-48Vdc, 10-15A continuous, 25-30A peak
- Speed, direction, current limiting, soft start/stop and auto-reverse control
- Limit switch inputs for end of travel
- Compact, DIN rail mountable

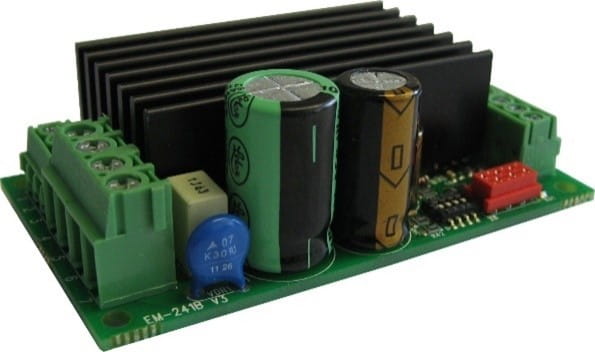

EM-241B-PLI
DC motor drive 12-24 V dc, 15 A, pulse counts for end limits
- 12-24 V dc, 15A continuous, 30A peak
- Speed, direction, current limiting, soft start/stop and auto-reverse control
- 2ch pulse count inputs for end of travel
- Compact, DIN rail mountable
Electromen - EM-243C
DC motor 2Q drive 12-48Vdc, 50A
- 12-48Vdc, 50A continuous, 100A peak
- Speed, direction, current limiting, soft start/stop and auto-reverse control
- Limit switch inputs for end of travel
- Compact, DIN rail mountable
EM-282D
DC motor 2Q drive 12-48 V dc, 80-100 A
- 12-48Vdc, 80-100A continuous, 160-200A peak
- Speed, direction, current limiting, soft start/stop, braking load output and auto-reverse control
- Limit switch inputs for end of travel
- Compact, DIN rail mountable
- EM-A1 card slot option for symmetrical control ±5V or ±10V (rev-stop-fwd)
Electromen - EM-337-PLI
Parallel drive for 4 x DC motors 12-24 V dc, 4x10A
- 12-24Vdc, 4x8A continuous, 4x10A 25% duty
- Synchronized parallel driving
- Operates with pulse feedback from motors
- Homing cycle & end of travel limits set by pulse counting
- Programmable with wide range of motor control functions
Electromen - EM-362
DC Motor Controller 12-36V 160A
- 12-36Vdc, 160A continuous, 300A peak
- For brushed motors up to 1.8kW at12V, 2.7kW at 24V, 3.0kW @ 36V
- Integrated cooling fan
- Limit switch inputs for end of travel
- Compact, DIN rail mountable
Electromen - EM-239
Parallel drive for 2 x DC motors 12-24 V dc, 2x10A
- 12-24Vdc, 2x10A continuous, 2x20A 25% duty
- Synchronized parallel driving
- Operates with pulse feedback from motors
- Programmable with wide range of motor control functions
- ** New projects see EM-339-PLI **
Brushless DC Motor Drives
Electromen’s brushless DC motor drives have a wide voltage range of 12Vdc to 48Vdc and current capacities up to 40A, these drives deliver smooth operation, excellent torque performance, and enhanced reliability. Featuring advanced control algorithms, they offer adjustable speed, acceleration, and deceleration settings for precise motor performance. Unique features include built-in protection against overcurrent, overvoltage, and overheating, as well as regenerative braking for energy savings.
Electromen - EM-269A BLDC motor 2Q drive 12-35 V dc, 2 A
- 12-24 V dc, 2 A continuous, 3 A peak
- Open & closed loop (hall sensor feedback) control operation
- Speed, direction, current limiting and soft start/stop control
- Compact, din rail mountable
Electromen - EM-291A BLDC motor 2Q drive 12-35 V dc, 4 A
- 12-24 V dc, 4 A continuous, 6 A peak
- Open & closed loop (hall sensor feedback) control operation
- Speed, direction, current limiting and soft start/stop control
- Compact, din rail mountable
Electromen - EM-316A BLDC motor 4Q drive 12-35 V dc, 10A
- 12-24 V dc, 10 A continuous, 25 A peak
- Open & closed loop (hall sensor feedback) control operation
- Speed, direction, current limiting, soft start/stop and dynamic braking control
- Compact, din rail mountable
- EM-A1 card slot option for symmetrical control ±5V or ±10V (rev-stop-fwd)
Electromen - EM-346 BLDC motor 4Q drive 12-48 V dc, 10A
- 12-48 V dc, 10 A continuous, 20-25 A peak
- Open & closed loop (hall sensor feedback) control operation
- Speed, direction, current limiting, soft start/stop and regenerative braking control
- Compact, din rail mountable
- EM-A1 card slot option for symmetrical control ±5V or ±10V (rev-stop-fwd)
Electromen - EM-347 BLDC motor 4Q drive 12-48 V dc, 30-40 A
- 12-48 V dc, *30-40 A continuous, 80-100 A peak
- Open & closed loop (hall sensor feedback) control operation
- Speed, direction, current limiting, soft start/stop and braking control
- Compact, din rail mountable
- EM-A1 card slot option for symmetrical control ±5V or ±10V (rev-stop-fwd)
Electromen - EM-240 BLDC motor 4Q drive 12-24 V dc, 1.5A
- 12-24 V dc, 1.5 A continuous, 2 A peak
- Open & closed loop (hall sensor feedback) control operation
- Speed, direction, current limiting, soft start/stop and braking control
- Compact, small size
Electromen - EM-206 BLDC motor 4Q drive 12-36 V dc, 10 A
- 12-36 V dc, 10 A continuous, 15 A peak
- Open & closed loop (hall sensor feedback) control operation
- Speed, direction, current limiting, soft start/stop and braking control
- Compact, din rail mountable
- EM-A1 card slot option for symmetrical control ±10V (rev-stop-fwd)
Positional Drives for Brush DC Motors
Electromen’s positional drives for brushed DC motors with Hall sensors provide precise position and speed control, supporting voltages from 12Vdc to 32Vdc and currents up to 15A. Featuring adjustable speed settings, real-time feedback, and built-in protection against overcurrent and thermal overload, these drives offer reliable performance and energy efficiency for applications like robotics and automation.
Electromen - EM-241C
DC motor 2Q drive 12-48Vdc, 10-15A
- 12-48Vdc, 10-15A continuous, 25-30A peak
- Speed, direction, current limiting, soft start/stop and auto-reverse control
- Limit switch inputs for end of travel
- Compact, DIN rail mountable
Electromen - EM-243C
DC motor 2Q drive 12-48Vdc, 50A
- 12-48Vdc, 50A continuous, 100A peak
- Speed, direction, current limiting, soft start/stop and auto-reverse control
- Limit switch inputs for end of travel
- Compact, DIN rail mountable
Electromen - EM-239
Parallel drive for 2 x DC motors 12-24 V dc, 2x10A
- 12-24Vdc, 2x10A continuous, 2x20A 25% duty
- Synchronized parallel driving
- Operates with pulse feedback from motors
- Programmable with wide range of motor control functions
- ** New projects see EM-339-PLI **
DC Linear Actuator Drives
Electromen’s DC linear actuator drives provide precise position and speed control, with a voltage range of 12Vdc to 48Vdc and current capacities up to 50A. Featuring built-in overcurrent, overvoltage, and thermal protection, these drives offer reliable performance and energy efficiency for applications in automation, robotics, and adjustable systems.
Electromen - EM-324-SAF
DC motor positioning drive 12-24 V dc, 4 A, analogue feeback
- 12-24Vdc, 4A continuous, 6A peak
- Set value & feedback input, 0-5V, 0-11V, 0-20mA or potentiometer
- Positioning accuracy max. 0.2%
- Speed, direction, current limiting, soft start/stop and range adjustment control
- Compact, DIN rail mountable
Electromen - EM-324-SPF
DC motor positioning drive 12-24 V dc, 4 A, pulse feedback
- 12-24Vdc, 4A continuous, 6A peak
- Set value 0-5V, 0-11V, 0-20mA & feedback input from encoder/hall sensor
- Positioning accuracy max. 0.2%
- Speed, direction, current limiting, soft start/stop and range adjustment control
- Compact, DIN rail mountable
Electromen - EM-241-SAF
DC motor positioning drive 12-24Vdc, 15A, analogue feedback
- 12-24Vdc, 15A continuous, 30A peak
- Set value & feedback input, 0-5V, 0-11V, 0-20mA or potentiometer
- Positioning accuracy max. 0.2%
- Speed, direction, current limiting, soft start/stop and range adjustment control
- Compact, DIN rail mountable
Electromen - EM-241-SPF
DC motor positioning drive 12-24Vdc, 15A, pulse feedback
- 12-24Vdc, 15A continuous, 30A peak
- Set value 0-5V, 0-11V, 0-20mA & feedback input from encoder/hall sensor
- Positioning accuracy max. 0.2%
- Speed, direction, current limiting, soft start/stop and range adjustment control
- Compact, DIN rail mountable
Electromen - EM-165 DC motor positioning drive 12-32 V dc, 5 A, analogue FB
- 12-32 V dc, 5 A continuous, 12 A peak
- Set value & feedback input, 0-5V or potentiometer
- Positioning accuracy. typ. ±1%
- Compact, din rail mountable
Electromen - EM-165pf DC motor positioning drive 12-32 V dc, 5 A, pulse FB
- 12-32 V dc, 5 A continuous, 12 A peak
- Set value 0-5V or potentiometer & feedback from pulse input
- Positioning accuracy. typ. ±1%
- Compact, din rail mountable
Electromen - EM-167 DC motor positioning drive 12-32 V dc, 4 A, analogue FB
- 12-32 V dc, 4 A continuous, 15 A peak
- Set value & feedback input, 0-5V or potentiometer
- Positioning accuracy. typ. ±1%
- Current limiting, soft start/stop and range adjustment control
- Panel mount
Stepper Motor Drives
Electromen’s stepper motor drives offer precise motion control with a voltage range of 12Vdc to 24Vdc and current capacities up to 6A. Featuring microstepping technology, adjustable speed, and built-in protection against overcurrent and thermal overload, these drives provide reliable, efficient performance for applications like robotics, CNC machines, and automation.

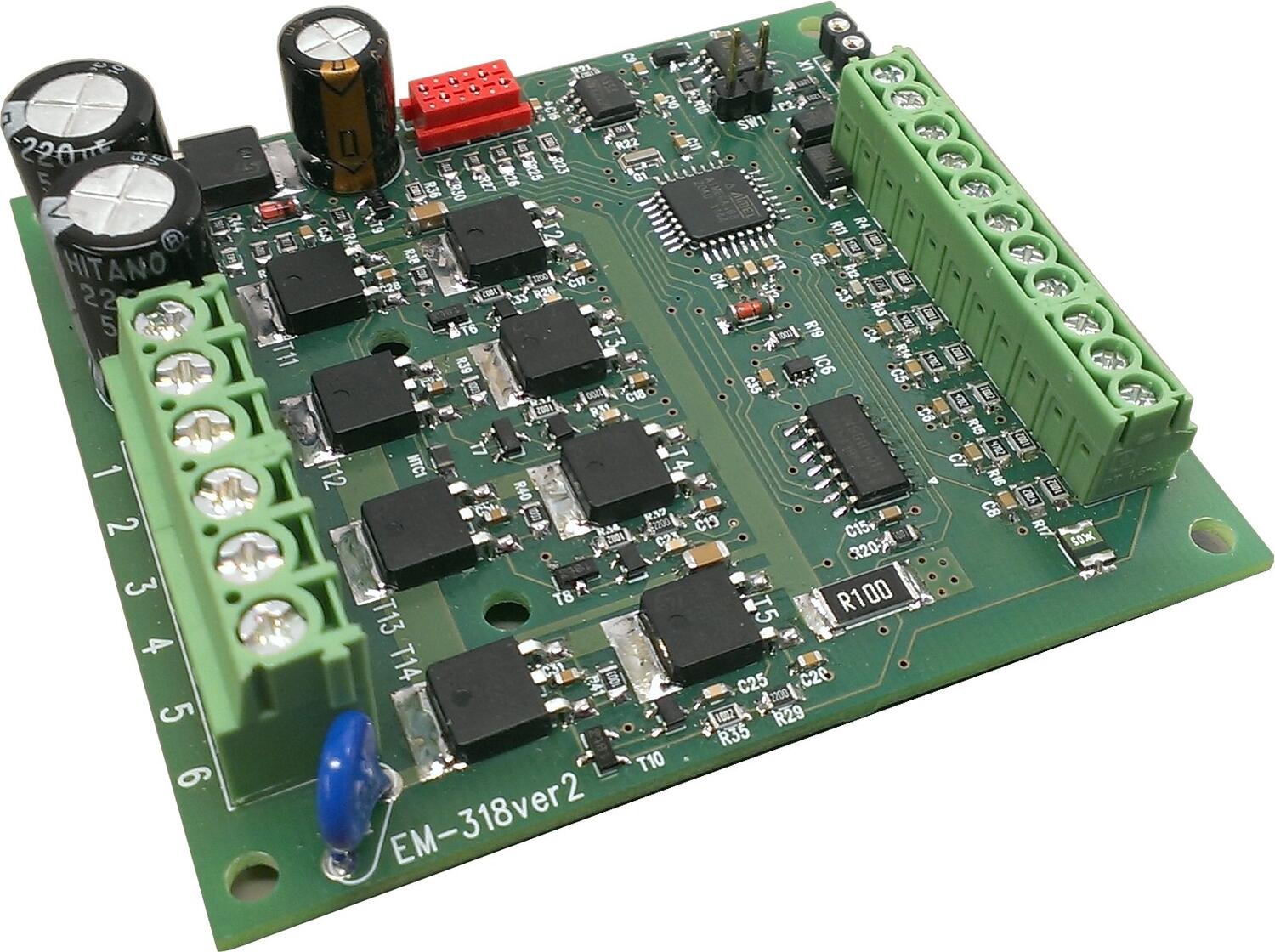

Electromen - EM-318
Stepper 2-phase motor drive 12-24 V dc, 3 A
- 12-24Vdc, 3A
- Microstepping 1, 1/2 , 1/4.....1/64 step options
- External step inputs or 4 digital inputs for pre-set speed, direction & position sequences
- Compact, DIN rail mountable

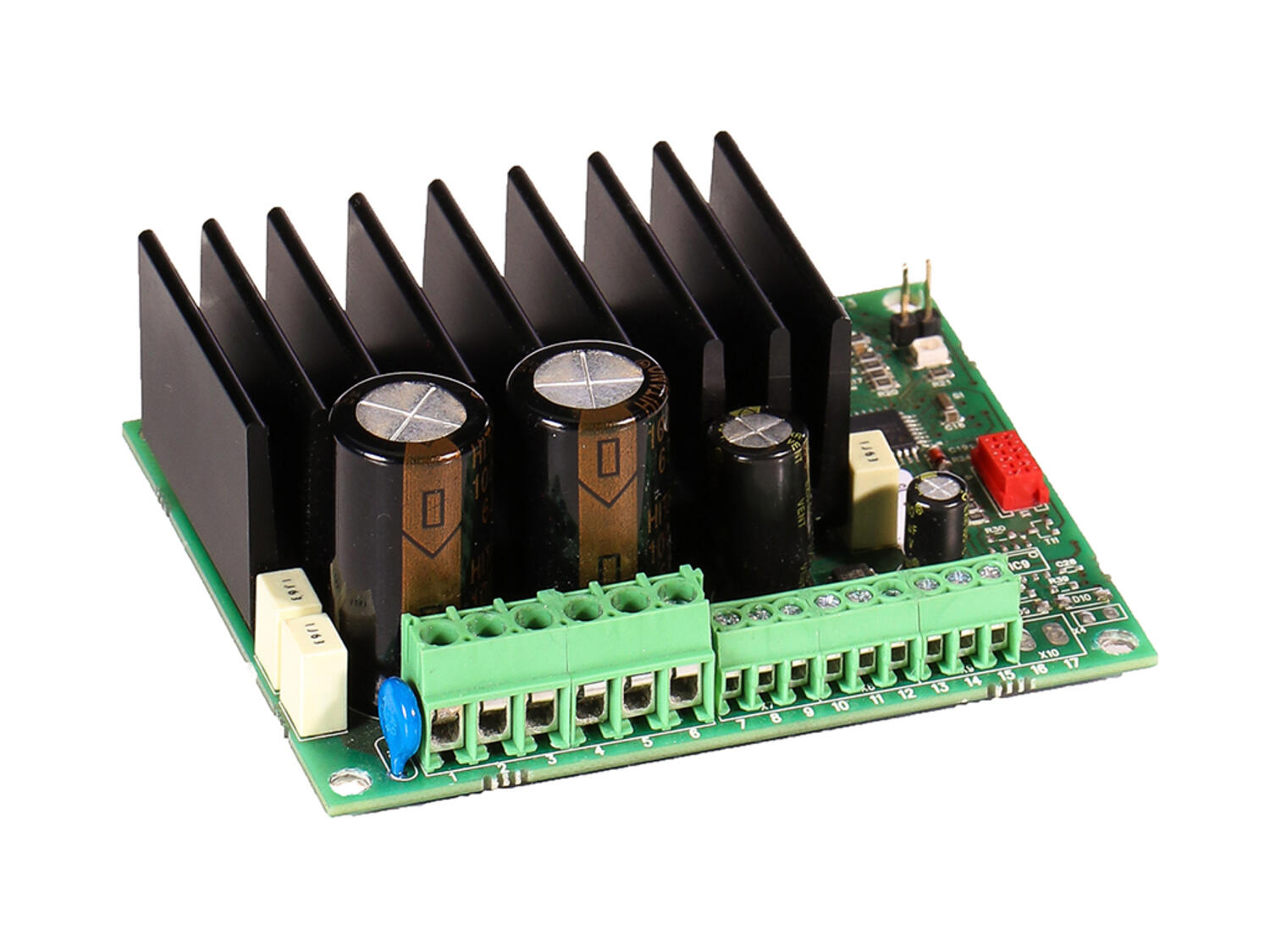

Electromen - EM-314
Stepper 2-phase motor drive 12-24Vdc, 6A
- 12-24Vdc, 6A
- Microstepping 1, 1/2 , 1/4.....1/64 step options
- External step inputs or 4 digital inputs for pre-set speed, direction & position sequences
- Compact, DIN rail mountable
